GPS Director
YE-GD101 User Manual
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS Director YE-GD101 and is the answer not in the manual?

Questions and answers

Related Manuals for Globalsat GPS Director YE-GD101

Summary of Contents for Globalsat GPS Director YE-GD101

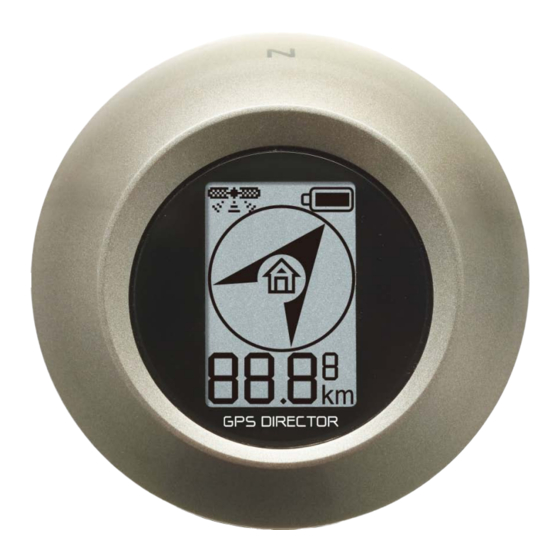

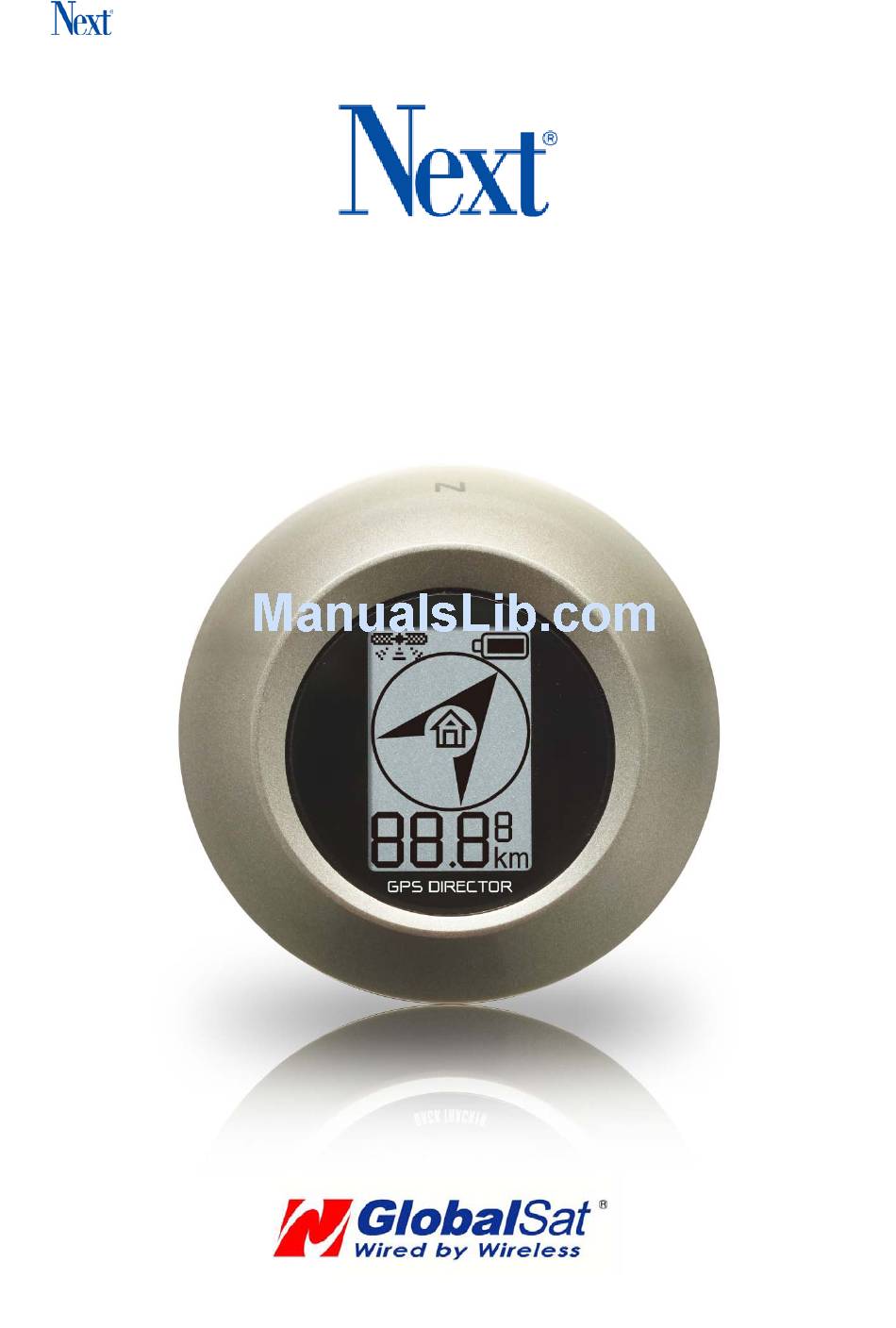

  • Page 1 GPS Director YE-GD101 User Manual Version 1.1...

  • Page 2: Table Of Contents

    3-2 Main Setting Screen ..............10 3-2-1 Manual Setting Destination’s Coordinate ...............11 3-2-2 Function Setting ....................12 3-2-3 Setting Data ......................14 3-3 Adjusting E-Compass ............... 16 3-4 Turning Off YE-GD101 ............. 16 Chapter 4: Troubleshooting ...........17 Appendix 1：World Time Zone Table ......18...

  • Page 3: Chapter 1：Functions And Specifications

    Chapter 1：Functions and Specifications Function and Features  Can set 5 Destination Points  Display directions with Digital Arrow Display (Can display 16 directions)  Magnetic North Direction Indication; present coordinates display  Manual Setting of Destination Coordinates  Maximum Destination Distance Showing (0~999.99) ...

  • Page 4: Specifications

    2. Return to last page under each setting screen. Selection/ Setting Short-click: To select. Button Long-click: To set. Make YE-GD101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time. Appearance Dimension 60 X 60 X 28 (mm)
  • Page 5 Antenna GPS antenna 12 X 12 mm, Patch Antenna ACCURACY 10 meters, 2D RMS Horizontal Position 1-5 meters 2D RMS, WAAS corrected Speed Accuracy 0.1 m/sec Time Accuracy 1 micro-second synchronized to GPS time Temperature Operation 0°C ~ 50°C Temperature Storage -20°C ~ 70°C Temperature...

  • Page 6: Accessories

    Power off device under main screen. Return to last page under each setting screen. Short-click (1sec): To select. Long-click (2sec): To set. Selection/ ➍ Make YE-GD101 enter main screen by long clicking Setting Button Power/Backlight Button and Selection/ Setting Button at the same time.

  • Page 7: Chapter 2：Start To Use

    Magnetic North Adjustment When using YE-GD101 for the first time, YE-GD101 will automatically perform the magnetic-north adjustment as seen in the screenshot below.

  • Page 8: Chapter 3：Using Ye-Gd101

    GPS fix. The direction of the setting destination of YE-GD101 . The arrow will direct to the destination after YE-GD101 has GPS fix and has performed the magnetic-north adjustment. What is shown on upper right corner is the battery power level...

  • Page 9: Automatic Setting The Destination

    If you try to save the present coordinates under no GPS fix status, YE-GD101 will display as seen in the screenshot to the left and then return to the direction indication screen.

  • Page 10: Main Setting Screen

    3-2 Main Setting Screen In the direction indication screen, you could make YE-GD101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time. Screen and Operation Explanation: Indication Function Operation Long click Selection/Setting button to enter setting screen.

  • Page 11: Manual Setting Destination's Coordinate

    Short click Selection/Setting button to select the number. Long click Selection/Setting button to enter the selected value and move to the next digit for setting. The maximum setting is 180 ° 00 ’00 . 00 ” Setting Destination’s Latitude The upper left corner is the selected destination.

  • Page 12: Function Setting

    3-2-2 Function Setting Icon Explanation Set User’s Time Zone Select the unit of displayed distance, KM, mile, and nm. Set backlight time out automatic sleeping time power-saving Setting Time Zone Explanation You could set time zone in this screen. The value on the lower screen represents the GMT time.
  • Page 13 Setting Backlight Timeout-time Explanation Set the backlight timeout-time in this screen. The value in the lower screen is the backlight time-out time. The backlight will be on for the time-out time after you short click the power/backlight button. Short click Selection/Setting button to select the backlight timeout.

  • Page 14: Setting Data

    Long click Power button to return to last screen. Long click Selection/Setting button to go to main screen. Cold Start Explanation 1. This screen shows YE-GD101 is performing a GPS Cold Start 2. It will return to navigation screen after 1 second.
  • Page 15 Deleting Coordinates of Destination Screen Explanation 1. This screen shows YE-GD101 is deleting the coordinates of the destination. 2. It will return to navigation screen after 1 second.

  • Page 16: Adjusting E-Compass

    YE-GD101 will show the coordinates after getting a GPS fix. Adjusting the Electronic Compass You could adjust electronic compass in this screen. If you need to YE-GD101 for the correction magnetic north directions, please enter the magnetic north indicates, Long...

  • Page 17: Chapter 4: Troubleshooting

    Chapter 4: Troubleshooting When YE-GD101 can not be turned on or does not work properly, please check if the battery is installed correctly. It requires more time to get GPS fix while YE-GD101 is moving.  Please keep YE-GD101 stationary when powering on YE-GD101 .

  • Page 18: Appendix 1：World Time Zone Table

    Appendix 1：World Time Zone Table Time Code Description Region Time Zone ACDT Australian Central Daylight Time Australia +10:30 ACST Australian Central Standard Time Australia + 9:30 Atlantic Daylight Time North America - 3:00 AEDT Australian Eastern Daylight Time Australia + 11:00 AEST Australian Eastern Standard Time Australia + 10:00...
  • Page 19 Heure Avancée des Rocheuses North America - 6:00 HAST Hawaii-Aleutian Standard Time North America - 10:00 Heure Avancée de Terre-Neuve North America -2:30 Heure Avancée du Yukon North America - 8:00 Heure Normale de l'Atlantique North America - 4:00 Heure Normale du Centre North America - 6:00 Heure Normale de l'Est...

  • Page 20: Thank You

    Email to destek@nextnavigasyon.com Thank you. YÜKSEL ELEKTROTEKNİK SAN. TİC. LTD. STİ Address: Perpa Elektrokent İş Merkezi A Blok Kat 8 No 810 Okmeydanı / İstanbul / Turkey Tel : +90 212 4443666 Fax: +90 212 2105888 Web: www.next.com.tr Support: www.nextnavigasyon.com...
