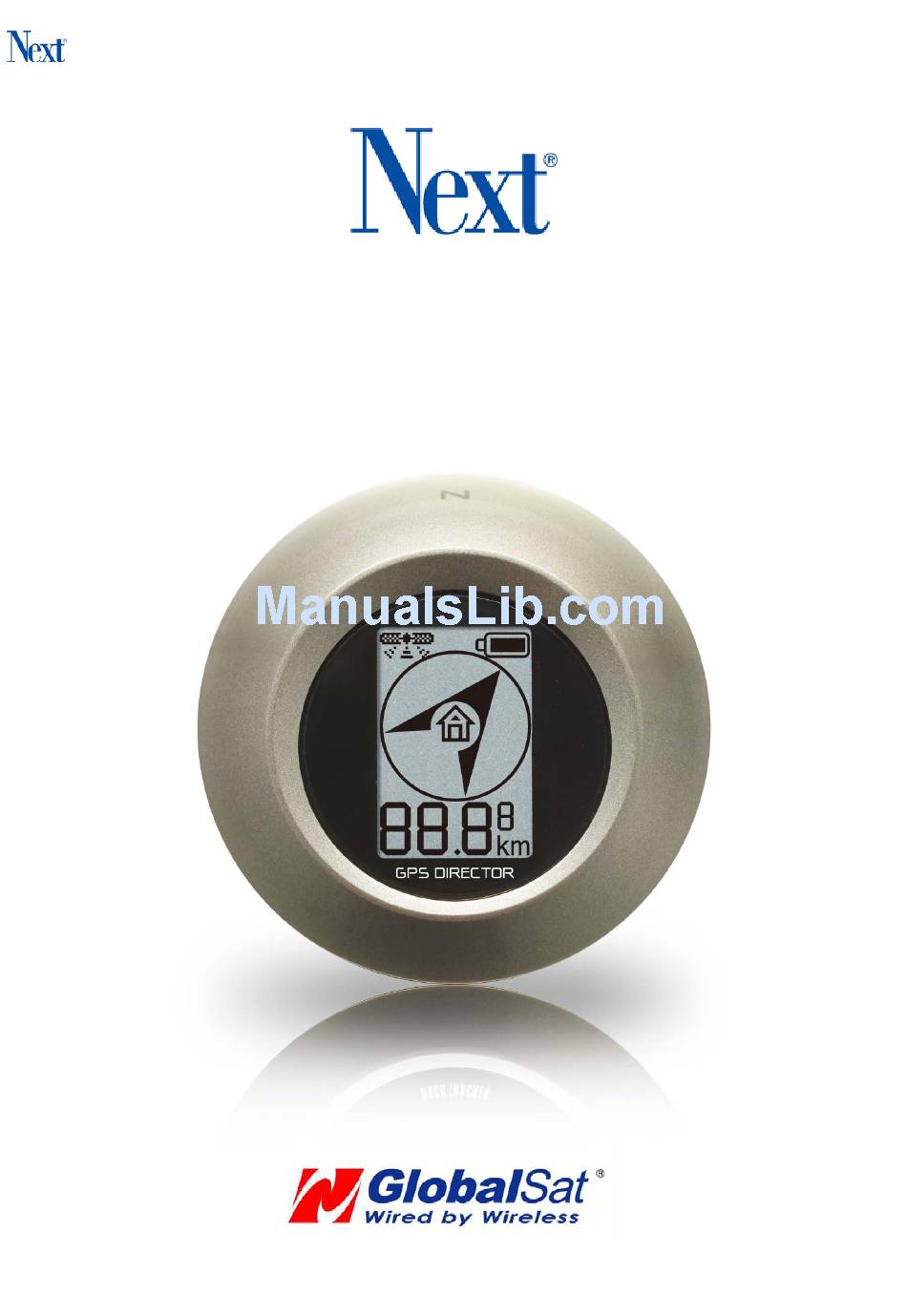

- Page 1 GPS Director YE-GD101 Quick Start Guide Version 1.1...
- Page 2 Power off device under main screen. Return to last page under each setting screen. Short-click (1sec): To select. Selection/ Long-click (2sec): To set. ➍ Setting Button Make YE-GD101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time.
-
Page 3: Start To Use
START TO USE Install Battery Magnetic North Adjustment When using YE-GD101 for the first time, it Close the battery cover will automatically perform the YE-GD101 in the battery cover magnetic-north adjustment as seen in the on the triangle mark position, screenshot below. -
Page 4: Automatic Setting The Destination
YE-GD101 will display as seen in the screenshot to the left and then return to the direction indication screen. Manual Setting Destination’s Coordinate In the direction indication screen, you could make YE-GD101 enter main screen by long clicking Power/Backlight Button and Selection/ Setting Button at the same time. ICON... - Page 5 Short click Selection/Setting button to select the number. Long click Selection/Setting button to enter the selected value and move to the next digit for setting. The maximum setting is 180 ° 00 ’00 . 00 ” Setting Destination’s Latitude The upper left corner is the selected destination.
