Bluetooth GPS Receiver

BT-821 User Manual
Version 1.1
Page 1 of 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-821 and is the answer not in the manual?

Questions and answers

Summary of Contents for Globalsat BT-821

  • Page 1: Bluetooth Gps Receiver

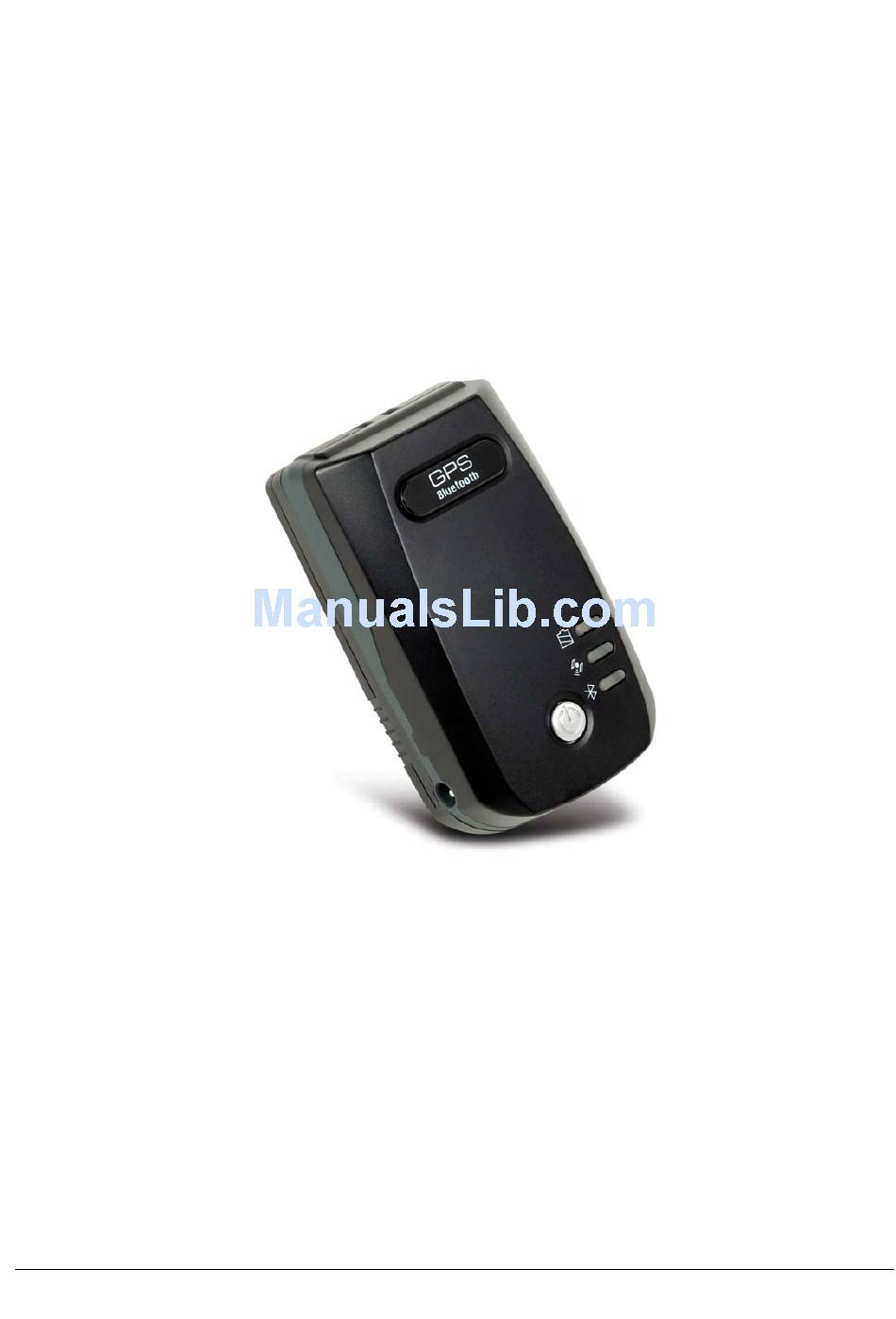

    Bluetooth GPS Receiver BT-821 User Manual Version 1.1 Page 1 of 14...
  • Page 2: Table Of Contents

    Table of Content 1. Product Information ................... 3 1.1 Product Description ................3 1.2 Product Features ................3 1.3 Product Specifications ................. 4 2. Hardware Description ................. 5 2.1 Top View and Bottom View ..............5 2.2 LED Behaviors ................... 6 2.3 Power Button ..................
  • Page 3: Product Information

    BT-821 uses a high capacity rechargeable lithium ion battery which can last for up to 23 hours of continuous operation. BT-821 is the best companion of your PDA, mobile phone, or other portable devices for navigation purposes. 1.2 Product Features...
  • Page 4: Product Specifications

    1.3 Product Specifications GPS Receiver Frequency L1, 1575.42 MHz Chipset MTK high performance chipset Code C/A Code Protocol NMEA 0183 v3.01 (Default: GGA, GSA, GSV, RMC, VTG, GLL, ZDA) RTCM Available Baud Rate 38400 Channels Antenna Built-in Patch Antenna Sensitivity Acquisition:-146dBm, Tracking:-158dBm Cold Start 36 seconds...
  • Page 5: Hardware Description

    2. Hardware Description 2.1 Top View and Bottom View Power Button Power LED GPS LED DC Jack Bluetooth LED Battery Cover Page 5 of 14...
  • Page 6: Led Behaviors

    Power turned off 2.4 Power-saving function When you start the power of the Bluetooth GPS Receiver BT-821, if the Bluetooth is not connected to any devices within 10 minutes, BT-821 will turn off the power automatically, and all the LED will go off simultaneously.
  • Page 7: Package Contents

    3. Package Contents BT-821 Car Charger AC Charger (Optional) Software Utility and User Manual CD Car Charger AC Charger (Optional) Page 7 of 14...
  • Page 8: Getting Started

    4. Getting Started Step 1: Charging Battery Please place the included battery in your BT-821 and charge it by the included charger till the orange LED goes off before using BT-821 for the first time. Push the battery cover toward the direction shown as arrow mark, and then lift it up.
  • Page 9: Step 2: Turn On The Power

    Press and hold the power button for one second to turn on your BT-821. Step 3: Wait for GPS fixed Put your BT-821 in a place where can directly see the sky and check the GPS LED. If the GPS LED starts blinking, your position is fixed.
  • Page 10: Troubleshooting

    5. Troubleshooting Connect Bluetooth GPS receiver with Windows Mobile Version 5 Pocket 1. Tap on the bluetooth button on right 3. Check “Turn on Bluetooth”. lower corner. 2. Turn on your Bluetooth GPS receiver. Page 10 of 14...
  • Page 11 4. Tap the “Devices” tab, and tap 5. It will search for all the bluetooth “New Partnership…”. devices. 6. Select a device (for example “BT-GPS-308BC5”) and tap Next. 7. Enter Passkey “0000” and tap Next. 8. Check “Serial Port” and tap Finish. Page 11 of 14...
  • Page 12 9. The device will be shown on the 10. Tap the “COM Ports” tab, and list. select “New Outgoing Port”. 11. Select the device and tap Next. 12. Uncheck “Secure Connection” and from the drop down box select a COM port nubmer (for example, COM7), and then tap Finish.
  • Page 13: Bluetooth Is Unable To Connect

    13. The device with it’s COM port 14. Now you can go to GPSinfo number will be shown on the list. program, set the correct COM port and test the GPS receiver. Bluetooth is unable to connect A) Check if the GPS Bluetooth indicator is flashing normally. That is, flash one per each three second means the product is under standby mode;...
  • Page 14: Fcc Notices

    FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
