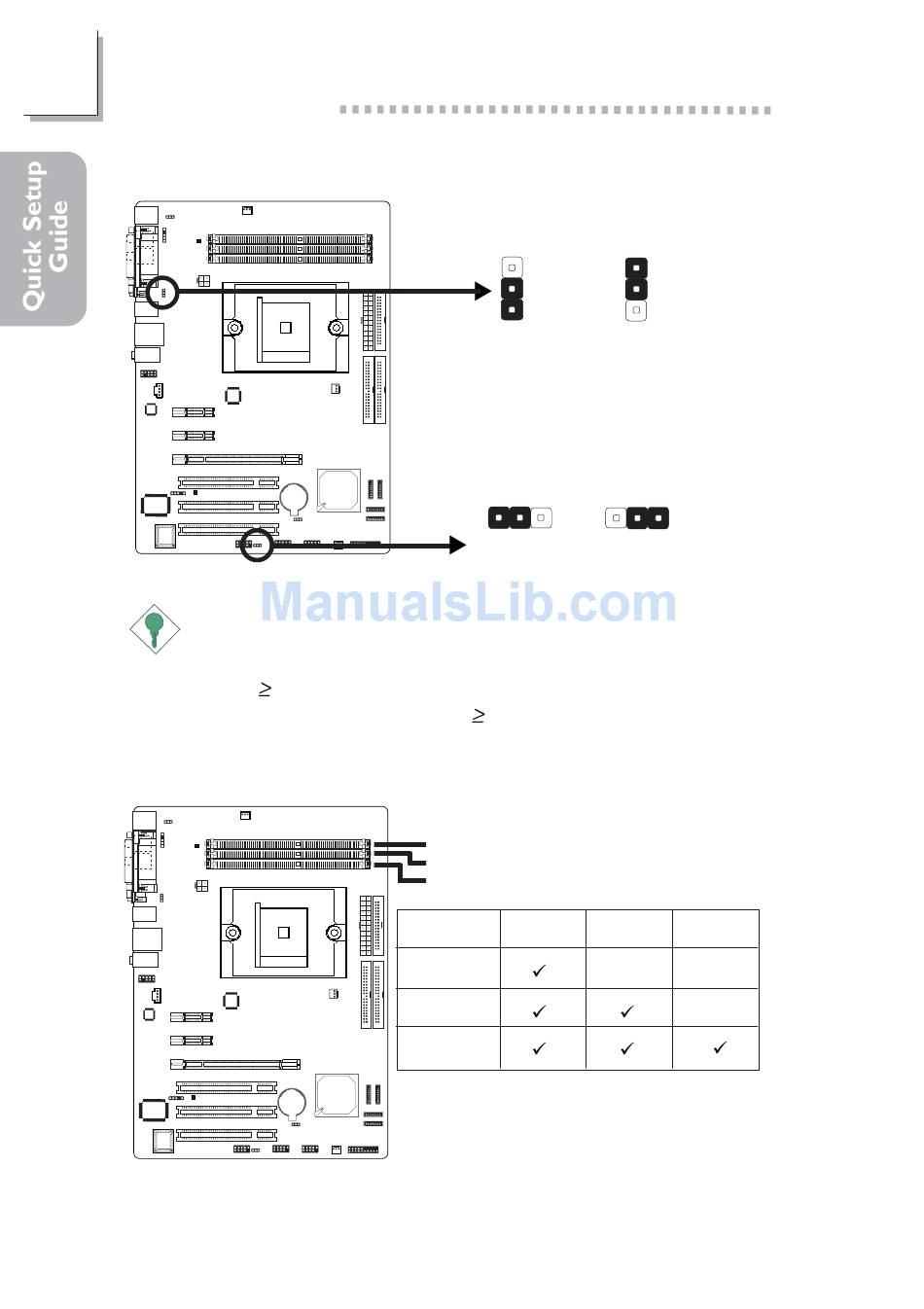

USB Power Select

Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support 1.5A. For 3 or more USB ports, the 5VSB power source of
your power supply must support 2A.

System Memory

6
USB 1-4
3
(JP5)
2
1
1-2 On: 5V
(default)
1 2 3
USB 5-10
(JP6)
1-2 On: 5V
(default)
DDR 3
DDR 2
DDR 1
DDR 1
1 DIMM
2 DIMMs
3 DIMMs
Install DIMMs according to the sequence
of the DDR socket indicated in the
illustration. In other words, if you are
installing one DIMM only, you must install it
in DDR 1 and so on. Refer to the table
above.
3
2
1
2-3 On: 5VSB
1 2 3
2-3 On: 5VSB
DDR 3
DDR 2
-
-
-
