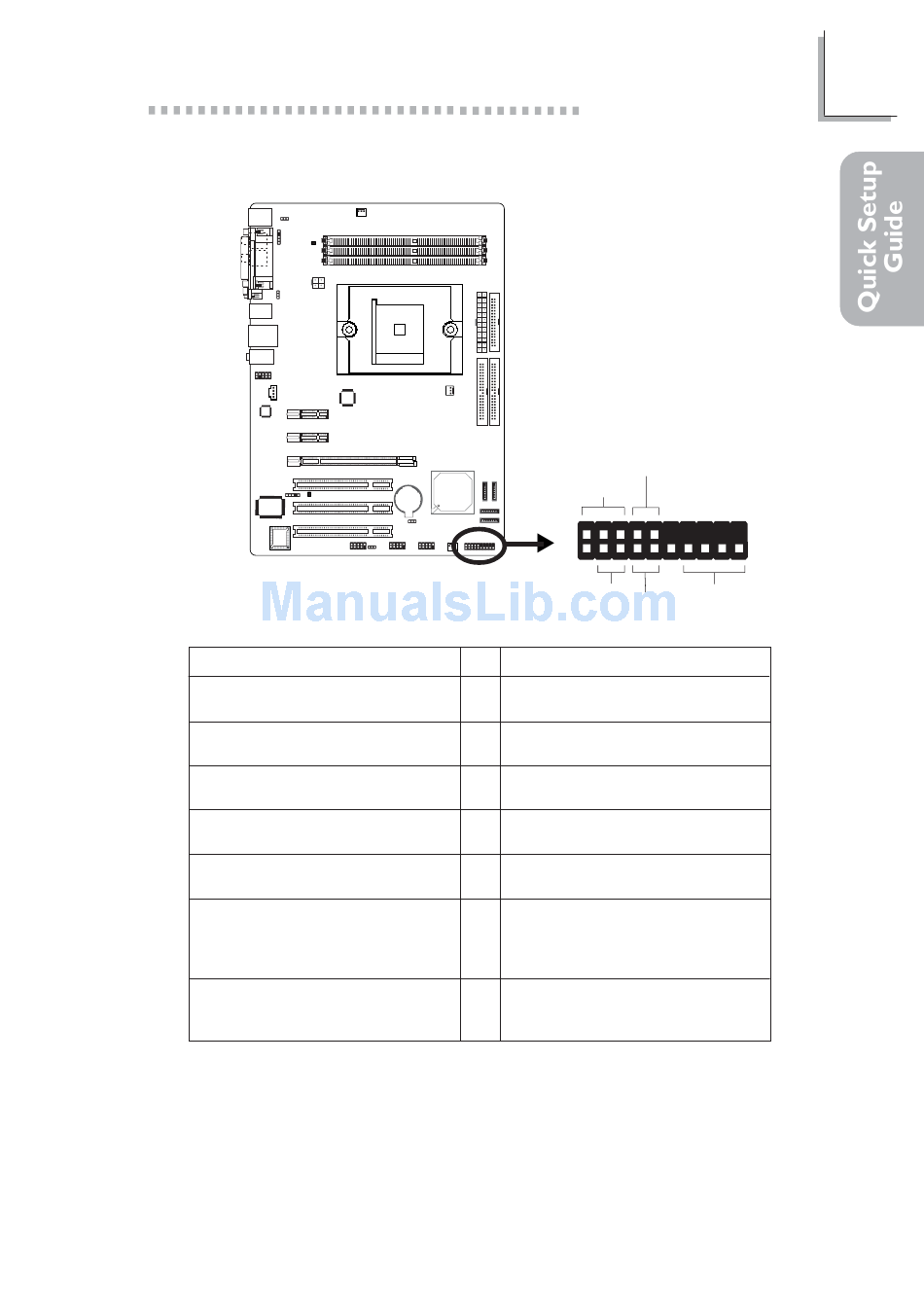

Front Panel Connectors

HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
Reserved
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Quick Setup Guide
ATX-SW
PWR-LED
J19
2
1
HD-LED
RESET
Pin
Pin Assignment
3
HDD LED Power
5
HDD
1 4
N. C.
1 6
N. C.
8
PWRBT+
1 0
PWRBT-
1 8
N. C.
2 0
N. C.
7
Ground
9
H/W Reset
1 3
Speaker Data
1 5
N. C.
1 7
Ground
1 9
Speaker Power
2
LED Power (+)
4
LED Power (+)
6
LED Power (-) or Standby Signal
1
2 0
1 9
SPEAKER
13
