  • Page 1 Operating Guide EPIA-N800 Mainboard December 11, 2009 Version 1.00...
  • Page 2: Table Of Contents

    D. Running 3DMark05 ....................10 E. Running C.C. Winstone 2004 ..................10 F. Idle ......................... 11 G. S3 mode ......................... 11 VIA EPIA-N800 Microsoft and Linux Driver Support..............12 Microsoft Driver Support....................12 Linux Driver Support......................12 Contact ..........................13...
  • Page 3: Via Epia-N800 Overview

    The VIA Nano processor includes the VIA Padlock Security Engine, VIA CoolStream™ Architecture, VIA StepAhead™ Technology Suite, and VIA TwinTurbo™ technology. The VIA EPIA-N800 supports up to 2 GB of 667/533 MHz DDR2 memory. The VIA EPIA-N800 provides support for high fidelity audio with its included VIA VT1708B High Definition Audio codec.
  • Page 4: Via Epia-N800 Layout

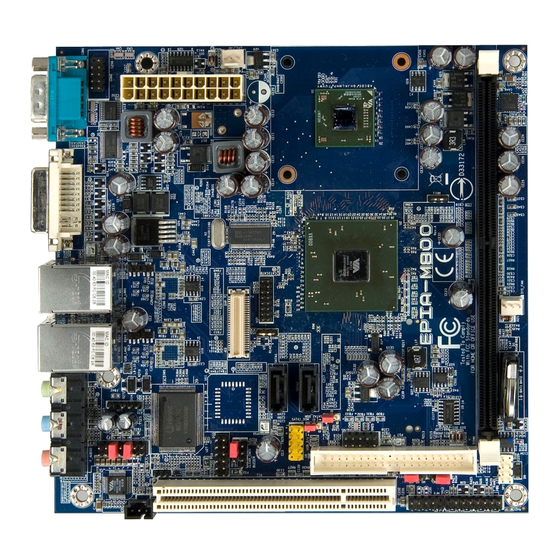

    EPIA-N800 Operating Guide VIA EPIA-N800 Layout Figure 1: EPIA-N800 layout December 11, 2009 - 2 - Version 1.00...
  • Page 5: Via Epia-N800 Specifications

    EPIA-N800 Operating Guide VIA EPIA-N800 Specifications Model Name - EPIA-N800-13 Processor - VIA Nano 1.3+ GHz NanoBGA2 processor (400 MHz FSB) Chipset - VIA VX800 Unified Digital Media IGP Chipset System Memory - 1 x DDR2 533/667 SODIMM slot - Up to 2 GB memory size - Integrated VIA Chrome9™...
  • Page 6: Via Epia-N800 Processor Skus

    EPIA-N800 Operating Guide VIA EPIA-N800 Processor SKUs The VIA EPIA-N800 is available in the following speed grade: • 1.3+ GHz VIA Nano NanoBGA2 Processor December 11, 2009 - 4 - Version 1.00...
  • Page 7: Via Vx800 Chipset Overview

    667/533 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Outstanding connectivity features include USB 2.0, 10/100/1000 LAN, SATA (3.0 Gbps), and ATA/133. Figure 2: VX800 as implemented in EPIA-N800 December 11, 2009 - 5 -...
  • Page 8: Via Epia-N800 Dimensions

    EPIA-N800 Operating Guide VIA EPIA-N800 Dimensions Figure 3: EPIA-N800 mounting layout and dimensions December 11, 2009 - 6 - Version 1.00...
  • Page 9: Via Epia-N800 Height Distribution

    EPIA-N800 Operating Guide VIA EPIA-N800 Height Distribution Figure 4: EPIA-N800 height distribution (top) December 11, 2009 - 7 - Version 1.00...
  • Page 10 EPIA-N800 Operating Guide Figure 5: EPIA-N800 height distribution (bottom) December 11, 2009 - 8 - Version 1.00...
  • Page 11: Via Epia-N800 Side Profile

    EPIA-N800 Operating Guide VIA EPIA-N800 Side Profile Figure 6: EPIA-N800 back panel ports December 11, 2009 - 9 - Version 1.00...
  • Page 12: Power Consumption

    EPIA-N800 Operating Guide Power Consumption Power consumption tests were performed on the VIA EPIA-N800 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-N800-13 A. Playing a DVD...
  • Page 13: Idle

    EPIA-N800 Operating Guide F. Idle Measured Voltage Measure Amp Watts Main Board +12V 11.628 1.337 15.547 DC Input +12V 11.628 1.337 15.547 Main Board Power Consumption 15.547 Total Power Consumption 15.547 G. S3 mode Measured Voltage Measure Amp Watts Main Board +12V 11.799...
  • Page 14: Via Epia-N800 Microsoft And Linux Driver Support

    ICROSOFT RIVER UPPORT The VIA EPIA-N800 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows XP Embedded), the related drivers can be found in the VIA Embedded website at www.viaembedded.com.
  • Page 15: Contact

    EPIA-N800 Operating Guide Contact For more information on the VIA EPIA-N800 Nano-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com. MERICA 940 Mission Court Fremont, CA 94539 Tel: (510) 683 3300 Fax: (510) 687 4654 Email: vpsd_sales@viatech.com TAIWAN 1F, No.
