- Page 1 User’s Manual EPIA-NX Version 1.05 September 25, 2008...
- Page 2 However, VIA Technologies assumes no responsibility for the use or misuse of the information in this document and for any patent infringements that may arise from the use of this document.
- Page 3 FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Safety Instructions
Safety Instructions Always read the safety instructions carefully. Keep this User's Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The openings on the enclosure are for air convection hence protects the equipment from overheating. - Page 5 ONTENTS One VIA Nano-ITX mainboard One Quick Installation Guide One ATA-133/100 IDE ribbon cable One PS2 KB/MS cable One VGA cable One USB cable One power cable One driver and utilities CD...
-
Page 6: Table Of Contents
ABLE OF ONTENTS SPECIFICATIONS ................1 ............. 2 AINBOARD PECIFICATIONS ................. 4 AINBOARD AYOUT ................ 4 ANEL AYOUT INSTALLATION................. 5 CPU ....................6 CPU Fan and System Fan: CPU_FAN and SYS_FAN ..... 6 ............7 EMORY ODULE NSTALLATION Memory Slot: DDR2_SODIMM ............7 Available DDR2 SDRAM Configurations ........ - Page 7 TV-out Connector................. 16 ..................17 UMPERS Clear CMOS: CLEAR_CMOS ............17 Inverter Selector: IVDD_SEL ............17 Panel Power Selector: PVDD_SEL ..........18 Display Selector................18 ....................19 LOTS Mini Peripheral Component Interconnect: MINIPCI ....19 PCI Interrupt Request Routing ............. 19 BIOS SETUP ..................
- Page 8 Virus Warning................30 Quick Power On Self-Test ............30 First/Second/Third Boot Device............ 31 Boot Other Device................ 31 Boot Up NumLock Status .............. 31 Typematic Rate Setting ..............31 Typematic Rate (Chars/Sec) ............32 Typematic Delay (Msec) ............... 32 Security Option ................32 APIC Mode ..................
- Page 9 AGP Fast Write................40 AGP Master 1 WS Write ............... 40 AGP Master 1 WS Read ..............40 AGP 3.0 Calibration Cycle ............40 VGA Share Memory Size............... 40 Direct Frame Buffer ..............40 CPU & PCI B ..............41 ONTROL PCI Master 0 WS Write ..............
- Page 10 MODEM Use IRQ ................ 48 Soft-Off by PWRBTN ..............48 Run VGABIOS if S3 Resume ............48 AC Loss Auto restart ..............48 ..............49 AKEUP VENT ETECT PS2KB Wakeup Select ..............49 PS2KB Wakeup Key Select ............49 PS2MS Wakeup Key Select ............49 PS2 Keyboard Power On ..............
- Page 11 ..........58 UPERVISOR ASSWORD & E ................. 60 ETUP ..............61 ITHOUT AVING DRIVER INSTALLATION ............... 63 ................64 RIVER TILITIES Getting Started ................64 Running the Driver Utilities CD ........... 65 CD C ................... 66 ONTENT...
- Page 12 This page is intentionally left blank. viii...
-
Page 13: Specifications

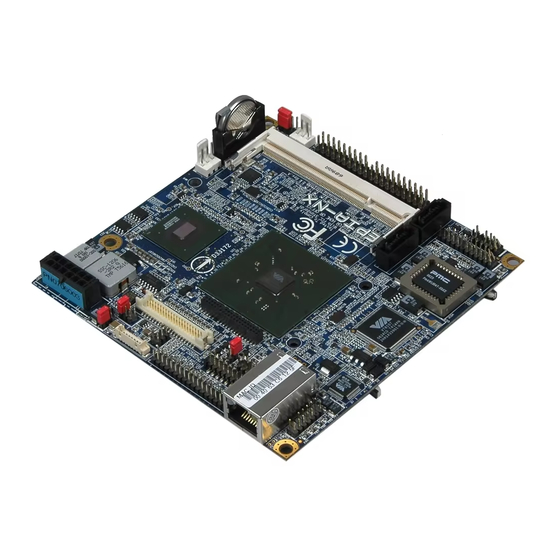

HAPTER Specifications The ultra-compact and highly integrated VIA EPIA-NX Nano-ITX mainboard is the smallest form-factor available today. Through a high level of integration, the Nano-ITX measures at only 50% of the size of a Mini-ITX mainboard. The mainboard enables the creation of an exciting new generation of small, ergonomic, innovative and affordable embedded systems. -
Page 14: Mainboard Specifications
Chapter 1 AINBOARD PECIFICATIONS • Supports VIA C7 1.5GHz NanoBGA2 Processor • Supports VIA Eden 1.2GHz NanoBGA2 Processor Chipset • VIA CX700M2 Advanced All-in-one System Processor Graphics • Integrated UniChrome™ Pro II 3D/2D AGP with MPEG-2/4 and WMV9 Video Decoding Acceleration Audio •... - Page 15 Specifications Onboard I/O Connectors • 1 x USB pin connector for 6 additional USB 2.0 ports • 1 x LPC header • 1 x PS2 mouse/keyboard header • 2 x Fan pin connectors for CPU and System fans • 1 x LVDS panel connector •...
-
Page 16: Mainboard Layout
Chapter 1 AINBOARD AYOUT ANEL AYOUT... -
Page 17: Installation
HAPTER Installation This chapter provides with information about hardware installation procedures. It is recommended to use a grounded wrist strap before handling computer components. Electrostatic discharge (ESD) can damage some components. -
Page 18: Cpu
Chapter 2 The VIA EPIA-NX Nano-ITX mainboard can support VIA C7 NanoBGA2 and VIA Eden NanoBGA2 processors. The processor requires a heatsink with fan for 1.5GHz SKU and a fanless heatsink for 1.2GHz SKU. CPU Fan and System Fan: CPU_FAN and SYS_FAN The CPU_FAN (CPU fan) and SYS_FAN (system fan) run on +12V and maintain system cooling. -
Page 19: Memory Module Installation
ODULE NSTALLATION Memory Slot: DDR2_SODIMM The VIA EPIA-NX Nano-ITX mainboard provides one SODIMM slot for DDR2 533 SDRAM memory modules and supports memory sizes up to 1GB. Insert the SODIMM module at a 45 degree angle. Push the SODIMM module back towards the board until the clips lock the module in place. -
Page 20: Connecting The Power Supply
Chapter 2 ONNECTING THE OWER UPPLY The VIA EPIA-NX Nano-ITX mainboard supports a Nano-ITX power supply for the power system. Before inserting the power supply connector, always make sure that all components are installed correctly to ensure that no damage will be caused. -
Page 21: Back Panel Ports
Installation ANEL ORTS The back panel has the following layout: RJ45 LAN Port The mainboard provides a standard RJ45 port for enabling connections to networks. -
Page 22: Connectors
Chapter 2 ONNECTORS IDE Connector: IDE The mainboard has an Ultra DMA 133/100 controller. You can connect up to two IDE devices in any combination. If two drives are connected to a single cable, the jumper on the second drive must be set to slave mode. -
Page 23: Case Connector: Fpnl
Installation Case Connector: FPNL The FPNL pin header allows you to connect the power switch, reset switch, power LED, HDD LED and the case speaker. Signal Signal +PWR_LED +HD_LED +PWR_LED -HD_LED -PWR_LED PW_BN SPEAK+ RST_SW SPEAK- Power Switch (PW_BN) Connect to a 2-pin power button switch. Pressing this button will turn the system power on or off. -
Page 24: Audio Connector: Audio
Chapter 2 Audio Connector: AUDIO This is an interface for connections to external audio devices. Signal Signal SPDIF_OUT LINEOUT_R LINEOUT_L LINEIN_R LINEIN_L MICIN1_R MICIN1_L AGND AGND KBMS Connector: KB/MS The mainboard provides a PS2 pin header to attach a PS2 keyboard and mouse. -
Page 25: Lvds Panel Connector: Panel
Installation LVDS Panel Connector: PANEL The LVDS Panel connector allows you to connect the panel’s LVDS cable directly to support LVDS panel without any need of a daughter card. Signal Signal -LD2C4 PVDD +LD2C4 PVDD -LD2C5 +LD2C5 -LD1C0 +LD1C0 -LD2C6 +LD2C6 -LD1C1 +LD1C1... -
Page 26: Secondary Lvds Connector: Lvds (Special Bios Needs To Be Reques-Ted Through Fae To Enable This Function)
Chapter 2 Secondary LVDS Connector: LVDS (Special BIOS needs to be reques- ted through FAE to enable this function) The Secondary LVDS connector allows you to connect a second LVDS panel. A LVDS-08 add-on card is required for this to function. Signal Signal +12V... -
Page 27: Serial Ata Connectors: Sata1 And Sata2
Installation Serial ATA Connectors: SATA1 and SATA2 These next generation connectors support the thin Serial ATA cables for primary internal storage devices. The current Serial ATA interface allows up to 150MB/s data transfer rate, faster than the standard parallel ATA with 133 MB/s (Ultra DMA). USB Pin Connector: USB The mainboard provides 1 USB pin connector that allows up to 6 USB 2.0 ports to be added. -
Page 28: Crt, Video Capture And Smbus Connector
Chapter 2 CRT, Video Capture and SMBus Connector The mainboard provides a single connector for the CRT, Video Capture and SMBus interfaces. Signal Signal SPD2 SPDCLK2 HSYNC VSYNC CAP0D0 CAP0D7 CAP0D4 CAP0D6 CAP0D5 CAP0HS CAP0D2 CAP0D1 CAP0D3 CAP0VS CAP0CLK SPD1 SPCLK1 SMBCK SMBDT... -
Page 29: Jumpers
Installation UMPERS The mainboard provides jumpers for setting some mainboard functions. This section will explain how to change the settings of the mainboard functions using the jumpers. Clear CMOS: CLEAR_CMOS The onboard CMOS RAM stores system configuration data and has an onboard battery power supply. -
Page 30: Panel Power Selector: Pvdd_Sel
Chapter 2 PVDD_SEL PVDD_SEL Panel Power Selector: PVDD_SEL PVDD_SEL PVDD is the VCC selector jumper to determine the panel’s signal voltage. +12V +3.3V Setting +12V +3.3V Display Selector Display Selector The jumper is the VCC selector jumper to determine a TV or a CRT display. -
Page 31: Slots
Installation LOTS Mini Peripheral Component Interconnect: MINIPCI The miniPCI slot allows you to insert a miniPCI expansion card. First unplug the power supply before adding or removing expansion cards. Read the documentation for the expansion card to see if any changes to the system are necessary. - Page 32 Chapter 2 This page is intentionally left blank.
-
Page 33: Bios Setup
HAPTER BIOS Setup This chapter gives a detailed explanation of the BIOS setup functions. -
Page 34: Entering Setup
Chapter 3 NTERING ETUP Power on the computer and press <Delete> during the beginning of the boot sequence to enter the BIOS setup menu. If you missed the BIOS setup entry point, you may restart the system and try again. -
Page 35: Control Keys
BIOS Setup ONTROL Keys Description Up Arrow Move to the previous item Down Arrow Move to the next item Left Arrow Move to the item in the left side Right Arrow Move to the item in the right side Enter Select the item Escape Jumps to the Exit menu or returns to the main menu from a... -
Page 36: Navigating The Bios Menus
Chapter 3 BIOS M AVIGATING THE ENUS The main menu displays all the BIOS setup categories. Use the Up/Down/ Left/Right arrow keys to select any item or sub-menu. Description of the selected/highlighted category is displayed at the bottom of the screen. An arrow symbol next to a field indicates that a sub-menu is available (see figure below). -
Page 37: Getting Help
BIOS Setup ETTING The BIOS setup program provides a “General Help” screen. You can display this screen from any menu/sub-menu by pressing <F1>. The help screen displays the keys for using and navigating the BIOS setup. Press <Esc> to exit the help screen. -
Page 38: Main Menu
Chapter 3 Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Advanced Chipset Features Set Supervisor Password Integrated Peripherals Set User Password Power Management Setup Save & Exit Setup PnP / PCI Configurations Exit Without Saving Frequency/Voltage Control Esc : Quit... -
Page 39: Load Fail-Safe Defaults
BIOS Setup Load Fail-Safe Defaults Use this menu option to load the BIOS default settings for minimal and stable system operations. Load Optimized Defaults Use this menu option to load BIOS default settings for optimal and high performance system operations. Set Supervisor Password Use this menu option to set the BIOS supervisor password. -
Page 40: Scmos F
Chapter 3 CMOS F TANDARD EATURES Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Date (mm:dd:yy) Tue, 13 1999 Item Help Time (hh:mm:ss) 11 20 55 Menu Level IDE Channel 0 Master Change the day, month, year IDE Channel 0 Slave and century IDE Channel 1 Master IDE Channel 1 Slave... -
Page 41: Ide Drives
BIOS Setup IDE D RIVES Phoenix - AwardBIOS CMOS Setup Utility IDE Channel 0 Master IDE HDD Auto-Detection [Press Enter] Item Help Menu Level IDE Channel 0 Master [Auto] Access Mode [Auto] To auto-detect the HDD's size, head... on this channel Capacity 0 MB Cylinder... -
Page 42: Virus Warning
Chapter 3 BIOS F DVANCED EATURES Phoenix - AwardBIOS CMOS Setup Utility Advanced BIOS Features CPU Feature [Press Enter] Item Help Hard Disk Boot Priority [Press Enter] Virus Warning [Disabled] Menu Level Quick Power On Self Test [Enabled] First Boot Device [USB-FDD] Second Boot Device [Hard Disk]... -
Page 43: First/Second/Third Boot Device
BIOS Setup First/Second/Third Boot Device Set the boot device sequence as BIOS attempts to load the disk operating system. Setting Description LS120 Boot from LS-120 drive Hard Disk Boot from the HDD CD-ROM Boot from CD-ROM ZIP100 Boot from ATAPI ZIP drive USB-FDD Boot from USB floppy drive USB-ZIP... -
Page 44: Typematic Rate (Chars/Sec)
Chapter 3 Typematic Rate (Chars/Sec) This item sets the rate (characters/second) at which the system retrieves a signal from a depressed key. Settings: [6, 8, 10, 12, 15, 20, 24, 30] Typematic Delay (Msec) This item sets the delay between when the key was first pressed and when the system begins to repeat the signal from the depressed key. -
Page 45: Full Screen Logo Show
BIOS Setup Full Screen Logo Show Show full screen logo during BIOS boot up process. Settings: [Enabled, Disabled] Summary Screen Show Show summary screen. Settings: [Enabled, Disabled]... -
Page 46: Cpu F Eature
Chapter 3 CPU F EATURE Phoenix - AwardBIOS CMOS Setup Utility CPU Feature Deplay Prior to Thermal [16 Min] Item Help Thermal Management [Thermal Monitor 1] Menu Level TM2 Bus Ratio [ 0 X] TM2 Bus VID [0.700V] Execute Disable Bit [Enabled] : Move Enter: Select... -
Page 47: Execute Disable Bit
BIOS Setup TM2 Bus VID This item sets the voltage of the throttled performance that will be initiated when the on die sensor goes from not hot to hot. Settings: [0.700V, 0.716V, 0.732V, 0.748V, 0.764V, 0.780V, 0.796V, 0.812V, 0.828V, 0.844V, 0.860V, 0.876V, 0.892V, 0.908V, 0.924V, 0.940V, 0.956V, 0.972V, 0.988V, 1.004V, 1.020V, 1.036V, 1.052V, 1.068V, 1.084V, 1.100V, 1.116V, 1.132V, 1.148V, 1.164V, 1.180V, 1.196V, 1.212V, 1.228V, 1.244V, 1.260V, 1.276V, 1.292V, 1.308V, 1.324V, 1.340V, 1.356V, 1.372V, 1.388V,... - Page 48 Chapter 3 RIORITY Phoenix - AwardBIOS CMOS Setup Utility Hard Disk Boot Priority Item Help Pri. Master : Pri. Slave Menu Level Sec. Master : Sec. Slave : Use < > or < > to USBHDD0 select a device, then USBHDD1 press <...
-
Page 49: Eatures
BIOS Setup DVANCED HIPSET EATURES Phoenix - AwardBIOS CMOS Setup Utility Advanced Chipset Features [Press Enter] AGP & P2P Bridge Control Item Help CPU & PCI Bus Control [Press Enter] [Disabled] Menu Level Memory Hole [Enabled] System BIOS Cacheable [Disabled] Video RAM Cacheable [PCI Slot] Init Display First... -
Page 50: Select Display Device
Chapter 3 Select Display Device This setting refers to the type of display being used with the system. Settings: [CRT, LCD, CRT+LCD, TV, LCD+TV] Panel Type This setting refers to the native resolution of the display being used with the system. -
Page 51: Ontrol
BIOS Setup AGP & P2P B RIDGE ONTROL Phoenix - AwardBIOS CMOS Setup Utility AGP & P2P Bridge Control AGP Aperture Size [128M] Item Help AGP 2.0 Mode [4x] Menu Level AGP Driving Control [Auto] x AGP Driving Value AGP Fast Write [Disabled] AGP Master 1 WS Write [Enabled]... -
Page 52: Agp Driving Control
Chapter 3 AGP Driving Control This item is used to signal driving current on AGP cards to auto or manual. Settings: [Auto, Manual] AGP Fast Write This item is used to enable or disable the caching of display data for the video memory of the processor. -
Page 53: Pci Delay Transaction
BIOS Setup CPU & PCI B ONTROL Phoenix - AwardBIOS CMOS Setup Utility CPU & PCI Bus Control PCI Master 0 WS Write [Enabled] Item Help PCI Delay Transaction [Enabled] Menu Level DRDY_Timing [Optimize] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help... -
Page 54: Cvbs (Composite)
Chapter 3 TV O UTPUT ONNECTOR Phoenix - AwardBIOS CMOS Setup Utility TV Output Connector CVBS (Composite) [Enabled] Item Help S-Video 0 (Y/C) [Enabled] Menu Level R/G/B [Disabled] Cr/Y/Cb [Disabled] SDTV-R/G/B [Disabled] SDTV-Pr/Y/Pb [Disabled] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help... - Page 55 BIOS Setup NTEGRATED ERIPHERALS Phoenix - AwardBIOS CMOS Setup Utility Integrated Peripherals VIA OnChip PCI Device [Press Enter] Item Help USB Device Setting [Press Enter] Menu Level : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults...
-
Page 56: Onboard Lan Boot Rom
Chapter 3 VIA O PCI D EVICE Phoenix - AwardBIOS CMOS Setup Utility VIA OnChip PCI Device Azalia HDA Controller [Auto] Item Help OnBoard LAN Boot ROM [Disabled] Menu Level : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults... -
Page 57: Usb 1.0 Controller
BIOS Setup USB D EVICE ETTING Phoenix - AwardBIOS CMOS Setup Utility USB Device Setting USB 1.0 Controller [Enabled] Item Help USB 2.0 Controller [Enabled] USB Operation Mode [High Speed] Menu Level USB Keyboard Function [Enabled] USB Storage Function [Enabled] [Enable] or [Disable] Universal Host *** USB Mass Storage Device Boot Setting ***... -
Page 58: Usb Keyboard Function
Chapter 3 USB Keyboard Function Enable or disable Legacy support of USB Keyboard Settings: [Enabled, Disabled] USB Storage Function Enable or disable Legacy support of USB Mass Storage Settings: [Enabled, Disabled] No Device Setting Description Auto mode According to contents of USB MSD decide boot up type. FDD mode The USB MSD always boot up as floppy disk. -
Page 59: Acpi Suspend Type
BIOS Setup OWER ANAGEMENT ETUP Phoenix - AwardBIOS CMOS Setup Utility Power Management Setup ACPI Suspend Type [S1&S3] Item Help Power Management Option [User Define] Menu Level HDD Power Down [Disabled] Suspend Mode [Disabled] Video Off Option [Suspend -> Off] Video Off Method [V/H SYNC+Blank] MODEM Use IRQ... -
Page 60: Video Off Option
Chapter 3 Video Off Option Select whether or not to turn off the screen when system enters power saving mode, ACPI OS such as Windows XP will override this option. Setting Description Always On Screen is always on even when system enters power saving mode Suspend ->... -
Page 61: Ps2Kb Wakeup Key Select
BIOS Setup AKEUP VENT ETECT Phoenix - AwardBIOS CMOS Setup Utility Wakeup Event Detect [Hot Key] PS2KB Wakeup Select Item Help [Any Key] PS2KB Wakeup Key Select [Any Botton] PS2MS Wakeup Key Select Menu Level [Disabled] PS2 Keyboard Power On [Disabled] When Select Password, PS2 Mouse Power On... -
Page 62: Ps2 Keyboard Power On
Chapter 3 PS2 Keyboard Power On Settings: [Disabled, Enabled] PS2 Mouse Power On Settings: [Disabled, Enabled] PowerOn by PCI Card Enables activity detected from any PCI card to power up the system or resume from a suspended state. Such PCI cards include LAN, onboard USB ports, etc. -
Page 63: Pnp/Pci C Onfigurations Pnp Os Installed
BIOS Setup PNP/PCI C ONFIGURATIONS Phoenix - AwardBIOS CMOS Setup Utility PnP / PCI Configurations PNP OS Installed [No] Item Help Reset Configuration Data [Disabled] Menu Level Resources Controlled By [Auto(ESCD)] Select Yes if you are x IRQ Resources Press Enter using a Plug and Play PCI/VGA Palette Snoop [Disabled]... -
Page 64: Resource Controlled By
Chapter 3 Resource Controlled By Enables the BIOS to automatically configure all the Plug-and-Play compatible devices. Setting Description Auto(ESCD) BIOS will automatically assign IRQ, DMA and memory base address fields Manual Unlocks “IRQ Resources” for manual configuration PCI/VGA Palette Snoop Settings: [Disabled, Enabled] Assign IRQ For VGA/USB Assign IRQ for VGA and USB devices. -
Page 65: Auto Detect Pci Clk
BIOS Setup REQUENCY OLTAGE ONTROL Phoenix - AwardBIOS CMOS Setup Utility Frequency / Voltage Control DRAM Clock/Drive Control [Press Enter] Item Help Auto Detect PCI Clk [Enabled] Menu Level Spread Spectrum [0.25%] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values... -
Page 66: Dram Clock
Chapter 3 DRAM C LOCK RIVE ONTROL Phoenix - AwardBIOS CMOS Setup Utility PnP / PCI Configurations DRAM Clock [By SPD] Item Help DRAM Timing [Auto By SPD] Menu Level x SDRAM CAS Latency [DDR/DDR 2.5 / 4 x Bank Interleave Disabled x Precharge to Active(Trp) x Active to Precharge(Tras) -
Page 67: Read To Precharge (Trtp)
BIOS Setup Read to Precharge (Trtp) Settings: [2T, 3T] Write to Read CMD (Trtp) Settings: [1T/2T, 2T/3T] Write Recovery Time (Twr) Settings: [2T, 3T, 4T, 5T] RDSAIT mode Settings: [Manual, Auto]... - Page 68 Chapter 3 EFAULTS Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Frequency / Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP / PCI Configurations Save &...
-
Page 69: O Ptimized D Efaults
BIOS Setup PTIMIZED EFAULTS Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Frequency / Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP / PCI Configurations Save &... - Page 70 Chapter 3 UPERVISOR ASSWORD Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Frequency / Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP / PCI Configurations Save &...
- Page 71 BIOS Setup Additionally, when a password is enabled, the BIOS can be set to request the password each time the system is booted. This would prevent unauthorized use of the system. See “Security Option” in the “Advanced BIOS Features” section for more details.
- Page 72 Chapter 3 & E ETUP Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Frequency / Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP / PCI Configurations Save &...
- Page 73 BIOS Setup ITHOUT AVING Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Frequency / Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP / PCI Configurations Save &...
- Page 74 Chapter 3 This page is intentionally left blank.
-
Page 75: Driver Installation
HAPTER Driver Installation This chapter gives you brief descriptions of each mainboard driver and application. You must install the VIA chipset drivers first before installing other drivers such as audio or VGA drivers. The applications will only function correctly if the necessary drivers are already installed. -
Page 76: D River U Tilities
Chapter 4 RIVER TILITIES Getting Started The mainboard includes a Driver Utilities CD that contains the driver utilities and software for enhancing the performance of the mainboard. If the CD is missing from the retail box, please contact the local dealer for the CD. Note: The driver utilities and software are updated from time to time. -
Page 77: Running The Driver Utilities Cd
Driver Installation Running the Driver Utilities CD To start using the CD, insert the CD into the CD-ROM or DVD-ROM drive. The CD should run automatically after closing the CD-ROM or DVD-ROM drive. The driver utilities and software menu screen should then appear on the screen. - Page 78 Chapter 4 CD C ONTENT VIA 4in1 Drivers: Contains VIA ATAPI Vendor Support Driver (enables the performance enhancing bus mastering functions on ATA-capable Hard Disk Drives and ensures IDE device compatibility), AGP VxD Driver (provides service routines to your VGA driver and interface directly to hardware, providing fast graphical access), IRQ Routing Miniport Driver (sets the system's PCI IRQ routing sequence) and VIA INF Driver (enables the VIA Power Management function).
