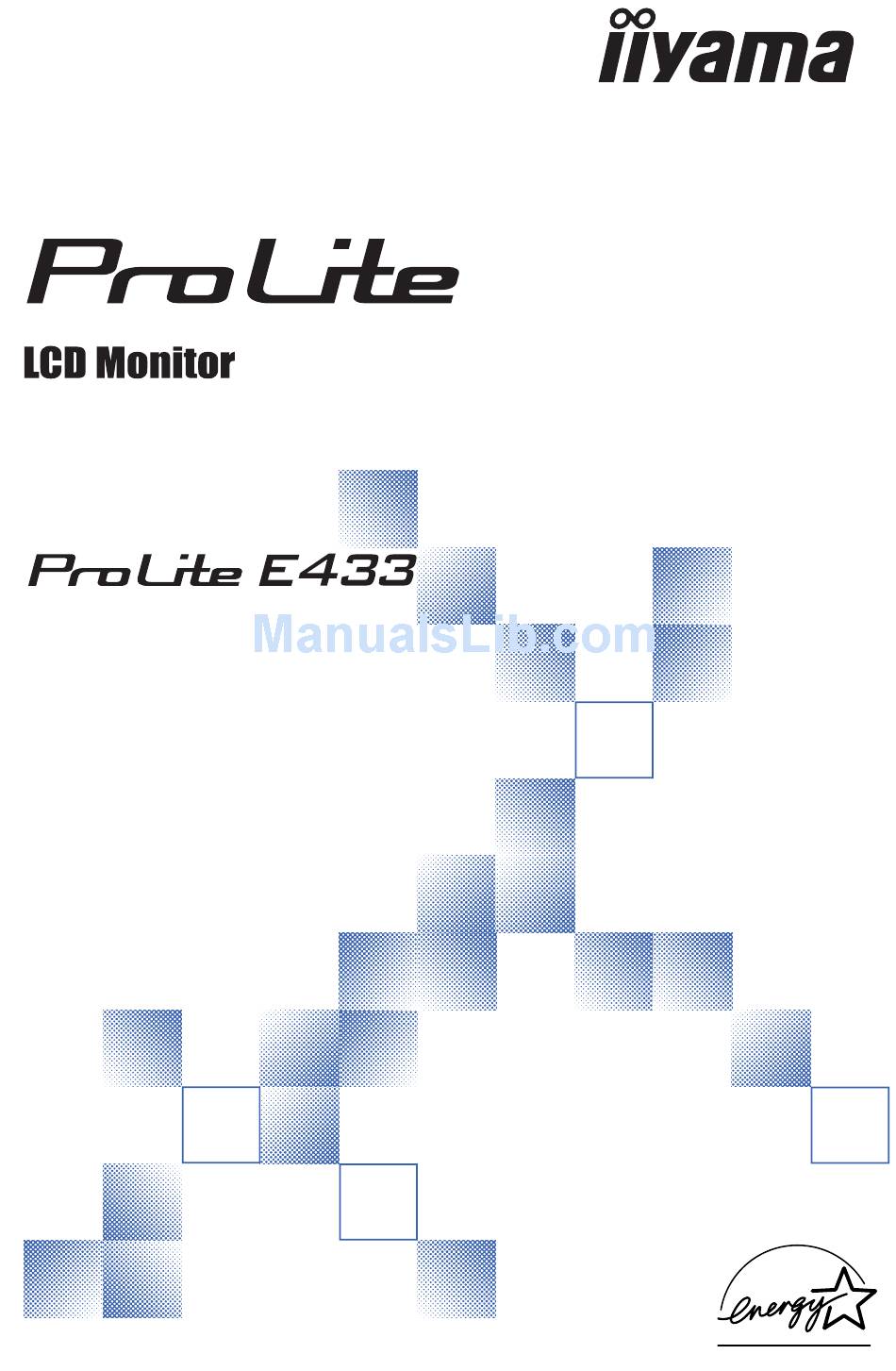

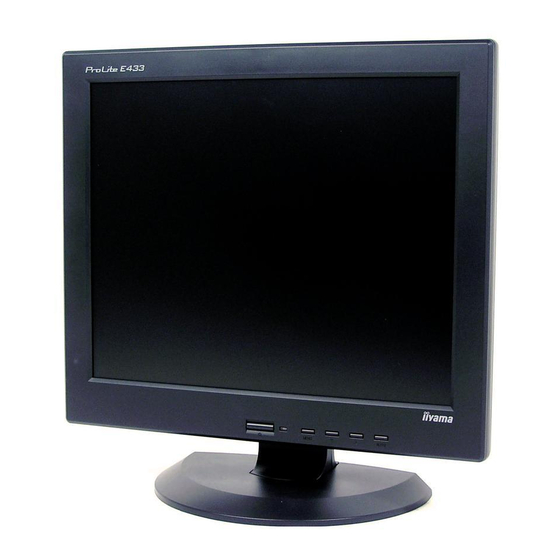

USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
Advertisement
Table of Contents
Related Manuals for Iiyama Prolite E433
Summary of Contents for Iiyama Prolite E433
-
Page 1: User Manual
USER MANUAL Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t comprehensive manual before installing and switching on the monitor. -
Page 2: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 3: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS ..............1 BEFORE YOU OPERATE THE MONITOR ..........3 FEATURES ..................3 CHECKING THE CONTENTS OF THE PACKAGE ......3 INSTALLATION OF STAND .............. 4 CONTROLS ..................5 CONNECTING YOUR MONITOR ............5 OPERATING THE MONITOR .............. -
Page 4: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. -
Page 5: Installation Location
CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. -
Page 6: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local IIYAMA dealer or regional IIYAMA office. -
Page 7: Installation Of Stand
INSTALLATION OF STAND The monitor is designed to be used with the stand installed. Be sure to install the stand before operating the monitor. CAUTION Install the stand on a stable surface. The monitor may cause injury or damage if it falls or is dropped. -
Page 8: Controls
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 9: Operating The Monitor
OPERATING THE MONITOR SWITCHING THE MONITOR ON/OFF This ON/OFF button is used for switiching the monitor on and off.NOTE The ON/OFF switch dose not disconnect the device from the mains voltage. NOTE To completely disconnect the mains voltage.Please remove the power plug from the socket. -
Page 10: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Main menu OSD main menu of controls gives you an overview of the selection of controls available.When you want to make adjustment of the screen image, press and release button Menu. Brightness adjust the overall image and background screen brightness. Contrast Adjust the image brightness in relation to the background. - Page 11 Color select or Color Select Menu Select user mode User color you can adjust to individual color gum intensity by yourself.Increase or decrease red,green or blue depending upon which color is selected. Cool This control adjusts the color temperature of the screen image this item are preset by factory, you can not adjust these setting The performance is bluer and brighter.
-
Page 12: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 13: Appendix
APPENDIX SPECIFICATIONS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 43.2cm / 17.0" Pixel pitch 0.264mm H × 0.264mm V Brightness 300cd/m (Typical) Contrast ratio 450 : 1 (Typical) Viewable angle Right / Left: 70 degrees each, Up/Down: 65 degrees (Typical) Response time 25ms (Black, white, black) Display Colors... -
Page 14: Dimensions
DIMENSIONS 364mm/14.3" 56mm/2.2" 306mm/12.0" 235mm/9.3" COMPLIANT TIMING Horizontal Vertical Video Mode Frequency Frequency 31.469kHz 59.941Hz 37.861kHz 72.810Hz 640 × 480 37.500kHz 75.000Hz 35.156kHz 56.250Hz 37.879kHz 60.317Hz VESA SVGA 800 × 600 48.077kHz 72.188Hz 46.875kHz 75.000Hz 48.363kHz 60.004Hz 1024 × 768 56.476kHz 70.069Hz 60.023kHz... - Page 15 IIYAMA CORPORATION 710-1 Kitaowaribe, Nagano-shi 381-0014 Japan...
