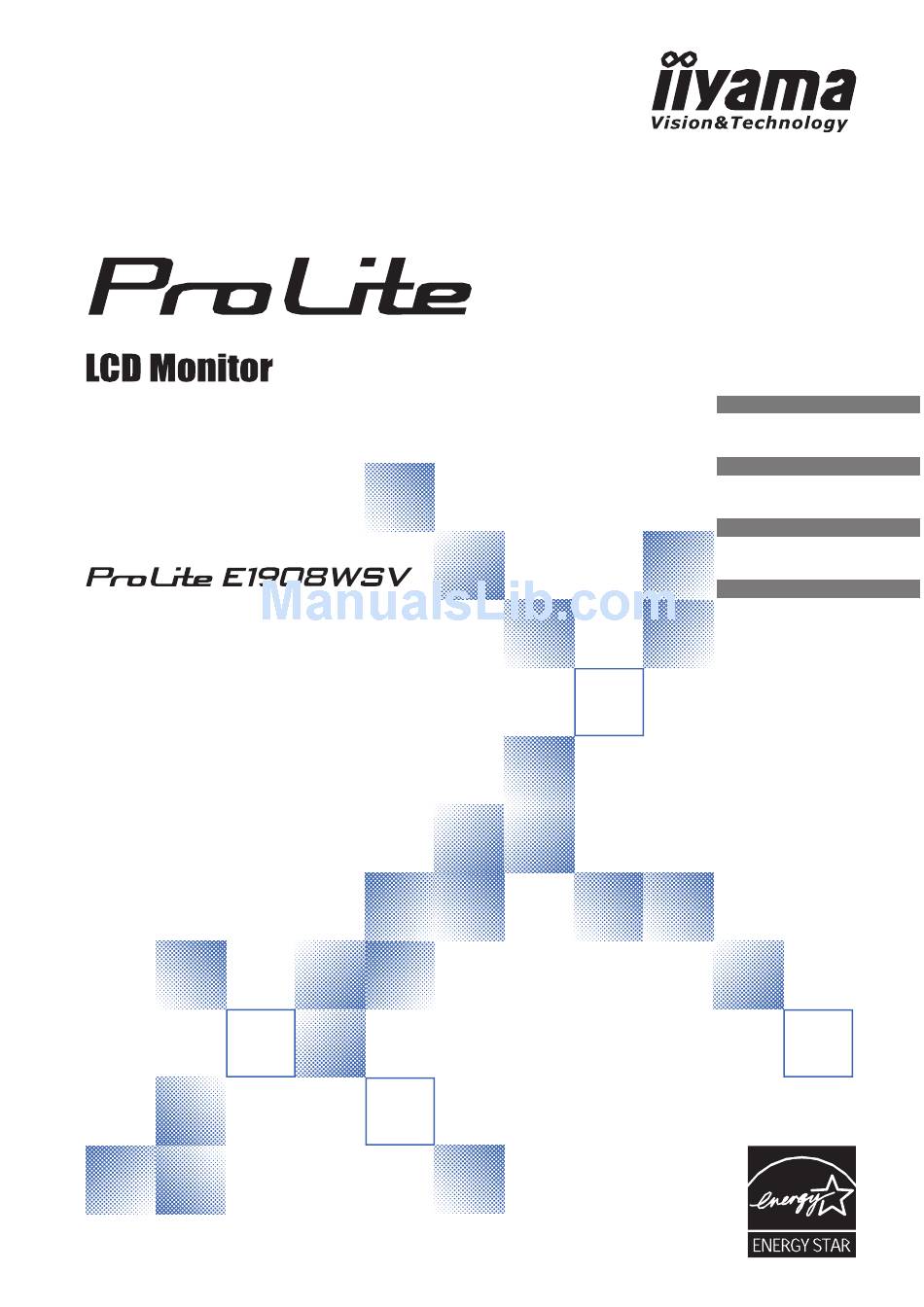

USER MANUAL

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
ENGLISH
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS

Advertisement

Table of Contents
loading

Related Manuals for Iiyama ProLite E1908WSV

Summary of Contents for Iiyama ProLite E1908WSV

  • Page 1: User Manual

    ENGLISH ENGLISH DEUTSCH FRANCAIS NEDERLANDS Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
  • Page 2 Dear user, we congratulate you on the purchase of your iiyama LCD. All iiyama LCD monitors comply with the ISO13406-2 standard for pixel defects. For details on warranty and locally used pixel policies that apply directly after installation of your product please check the iiyama website.

  • Page 3: Ce Marking Declaration Of Conformity

    We reserve the right to change specifications without notice. All trademarks used in this user manual are the property of their respective owners. As an E Partner, iiyama has determined that this product meets the E guidelines for ® ®...

  • Page 4: Table Of Contents

    This information is only for U.S.A.. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.

  • Page 5: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

  • Page 6: Installation Location

    CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 7: Special Notes On Lcd Monitors

    Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

  • Page 9: Fitting And Removal Of Base

    FITTING AND REMOVAL OF BASE Install the stand on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before installation to avoid electric shock or damage. <Install>...

  • Page 10: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> A Power Switch ( B Menu Button (MENU) C + Button ( + ) D – Button ( – ) E Auto Button (AUTO) F Power Indicator Blue: Normal operation NOTE Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal.

  • Page 11: Connecting Your Monitor

    The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.

  • Page 12: Computer Setting

    Change to the desired signal timing listed on page 23: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

  • Page 13: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS.

  • Page 14: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations. Brightness / Contrast / Economy Mode / Picture Mode / Volume / DCR: To display direct menu press either of the +/- Buttons. Continue to use the +/- Buttons to select the adjustments required.
  • Page 15 Menu : 1 M e nu : 1 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Adjustment Item Problem / Option Button to Press Too dark Brightness * Direct Too bright Too dull...
  • Page 16 Menu : 2 Menu:2 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Adjustment Item Problem / Option Button to Press Return to Menu. Auto Set-up * Adjust Clock, Phase, V-Position and H-Position Direct automatically.
  • Page 17 Menu : 2 Adjustment Item Problem / Option Sharpness 1 2 3 4 5 Adjust the picture quality at resolutions of less than 1680 × 1050. You can change the picture quality from 1 to 5 (sharp to soft). Press the + Button to change the picture quality in numerical order.
  • Page 18 Menu : 3 Menu:3 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Problem / Option Button to Press Adjustment Item 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions NOTE within the overall display:...
  • Page 19 Menu : 4 Menu:4 1680 × 1050 H : 6 5 . 4 K H z V : 6 0 . 1 H z Problem / Option Button to Press Adjustment Item Too soft Volume Direct Too loud NOTE is displayed while Mute is active. Sretch the picture to fit the full screen.

  • Page 20: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com).
  • Page 21 C C C C C Press the Auto Button. (Auto Set-up) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
  • Page 22 G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. – NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clock may not be adjusted correctly.

  • Page 23: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of E NERGY and VESA DPMS. When activated, it automatically reduces unnecessary power consumption ® of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.

  • Page 24: Trouble Shooting

    2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...
  • Page 25 Problem Check No sound. The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of loud or too quiet.

  • Page 26: Appendix

    APPENDIX SPECIFICATIONS LCD Panel a-Si TFT Active Matrix Driving system Size Diagonal: 48cm / 19" 0.243mm H × 0.243mm V Pixel pitch Brightness 300cd/m (Typical) Contrast ratio Static 1000:1 (Typical), DCR function available Viewable angle Right / Left: 85 degrees each Up / Down: 80 degrees each 5ms (Black, white, black) Response time Display Colors...

  • Page 27: Dimensions

    DIMENSIONS 439.0mm/17.3" 59.0mm/2.3" 410.0mm/16.1" COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 37.500kHz 75.000Hz 31.500MHz 640 × 480 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 49.500MHz 46.875kHz 75.000Hz 50.000MHz 48.077kHz 72.188Hz VESA...
