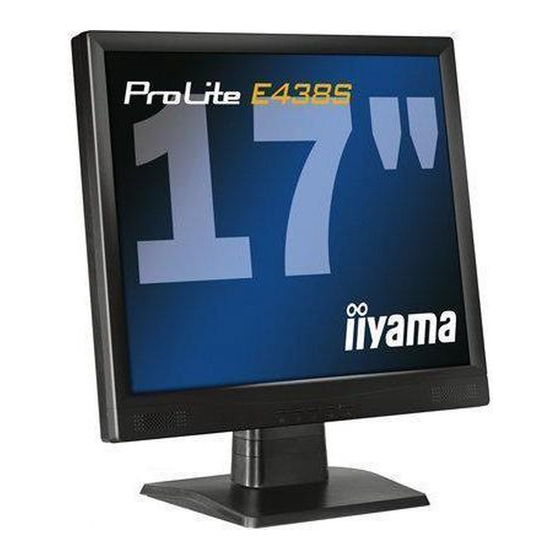

Iiyama ProLite E438S User Manual
  1. Manuals
  2. Brands
  3. Iiyama Manuals
  4. Monitor
  5. ProLite E438S
  6. User manual

Iiyama ProLite E438S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
PLE438S-e.p65
1
ENGLISH
DEUTSCH
FRANCAIS
ITALIANO
2005/08/08, 10:21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite E438S and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite E438S

Summary of Contents for Iiyama ProLite E438S

  • Page 1 USER MANUAL ENGLISH DEUTSCH FRANCAIS ITALIANO Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
  • Page 2 Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 3 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.
  • Page 4 To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by IIYAMA could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS ..............1 SPECIAL NOTES ON LCD MONITORS ..........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 CHECKING THE CONTENTS OF THE PACKAGE ......4 HOW TO USE THE STAND ..............

  • Page 6: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 8: Special Notes On Lcd Monitors

    Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

  • Page 9: Before You Operate The Monitor

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

  • Page 10: How To Uninstall The Stand

    HOW TO UNINSTALL THE STAND (Fig 1) (Fig 2) (Fig 3) (Fig 4) (Fig 5) 1. Lay the monitor flat on a table with the LCD screen face down (see Fig 1). To prevent the monitor from being scratched, put a piece of soft cloth on the table on which the screen will be set.

  • Page 11: Computer Setting

    Change to the desired signal timing listed on page 19: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC1/2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC1/2B compliant computer with the Signal Cable supplied.

  • Page 12: Front Panel Control

    FRONT PANEL CONTROL FRONT PANEL CONTROL A ACTIVATE/EXIT OSD B SCROLL DOWN / DECREASE C SCROLL UP / INCREASE D SELECT DESIRED FUNCTION E LED INDICATER F POWER ON / OFF G SPEAKERS INSTALLATION H AC CONNECTOR (AC IN) I AUDIO CONNECTOR K D-SUB MINI 15PIN CONNECTOR(VGA) J DVI-D-24PINCONNECTOR(DVI) L KEYHOLE FOR SECURITY LOCK...

  • Page 13: Operating The Monitor

    OPERATING THE MONITOR USING OSD FUNCTION Press the button to display the main menu shown below. Press the button to scroll to the desired menu option. Press the button to select the menu option. Press the button to select submenu option. After making adjustment, press button to save changes and exit the screen.
  • Page 14 C o n t r a s t 1 : Exit 2 : Brightness Contrast: To adjust the foreground white level of screen image. : increase contrast, : decrease contrast. B r i g h t n e s s 1 : Exit 2 : Contrast Brightness:...
  • Page 15 User Color 1 : Exit 2 : Select User Color: Individual adjustments for red(R), green (G), blue (B). 1. Press button to set adjustment and select next color to adjust. 2. Press button to adjust selected color. Information H.Frequency: 79.99 V.
  • Page 16 Image Adjust H. /V. Position H.Size Fine Tune Sharpness 1 : Exit 2 : Select Image Adjust: Adjust Horizontal /Vertical position ,H. Size, Fine Tune and Sharpness H. Position Use Up/Down to Adjust 1 : Exit 2 : V. Position H./V.
  • Page 17 F i n e Tu n e 1 : Exit Fine Tune: To adjust the delay time. Press to adjust to user preference. S h a r p n e s s 1 : Exit Sharpness : adjusts the clarity of a non-SXGA (1280x1024) signal. Press button to adjust.
  • Page 18 Language Select 1 : Exit 2 : Select Language Select: Allows the user to choose from available languages. Resolution Notice Disable Enable 1 : Exit Resolution Notice: There is a OSD message of “For best picture quality change resolution to ”1280 x 1024” displayed on the screen after 30 seconds Powering ON or changing mode to lower resolutions (640 x 480/ 720 x 400/ 800 x 600/ 1024x768), if the function was “enable”.
  • Page 19 O S D Po s i t i o n 1 : Exit 2 : Select OSD Position: Press the · button to select the horizontal or vertical OSD position. Horizontal OSD Position horizontally repositions all OSD screens. moves OSD right, moves OSD left.
  • Page 20 Setup Menu Language Select Resolution Notice OSD Position OSD Time Out Input Select Analog 1 : Exit 2 : Select Input Select: When press Input Select change Input singnal to Analog or Digital. Memory Recall Memory Recall: Return the adjustments back to factory settings. Press the button to select the Memory Recall menu option.

  • Page 21: Care And Maintenance

    CARE AND MAINTENANCE CARE CARE Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place anything heavy on top of your monitor.

  • Page 22: Trouble Shooting

    TROUBLE SHOOTING No Power Make sure A/C power is securely connected to the power adapter and the power supply is firmly connected to the monitor. Plug another electrical device into the power inlet to verify that the outlet is supplying proper voltage.

  • Page 23: Appendix

    APPENDIX SPECIFICATIONS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 43.0cm / 17.0" Pixel pitch 0.264mm H × 0.264mm V Brightness 300/m (Typical) Contrast ratio 500 : 1 (Typical) Viewable angle Right / Left : 70 degrees each, Up: 67 degrees, Down: 63 degrees(Typical) Response time 8ms (Black, white, black) Display Colors...

  • Page 24: Dimensions

    DIMENSIONS DIMENSIONS DIMENSIONS 57.5mm/2.3" 375.5mm/14.8" 200.5mm/7.9" COMPLIANT TIMING Vertical Horizontal Video Mode Dot Clock Frequency Frequency COMPLIANT TIMING 25.175MHz 31.468kHz 59.941Hz COMPLIANT TIMING 640 × 480 31.500MHz 37.500kHz 74.997Hz 36.000MHz 35.156kHz 56.249Hz 40.000MHz 37.878kHz 60.317Hz VESA SVGA 800 × 600 49.500MHz 46.875kHz 75.001Hz...

  • Page 25: Connector Pin Assignment

    CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Input Signal Input Signal Connector Red video Ground Green video Blue video Data line (SDA)* Ground H-Sync Red video ground V-Sync Green video ground Clock line (SCL)* Blue video ground * Compliant to VESA DDC. DVI-D 24pin Input Signal Input Signal...
