To reduce the risk of electric shock, the hose with electrical wires has a polarized

To reduce the risk of electric shock

plug (one blade is wider than the other). This plug will fit in a polarized outlet only

one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install the proper outlet. Do not change the plug

in any way.

GENERAL INFORMATION

The built-in vacuum system is designed for dry pick up of household dirt and dust.

Avoid picking up hard or sharp objects with the system to prevent hose and plastic

pipe damage or clogs.

Service Information

The instructions in this booklet serve as a guide to routine maintenance. For infor-

mation, your nearest Eureka Authorized Warranty Station or if additional service is

required, telephone toll free: 1-800-282-2886.

DO NOT OIL THE MOTOR AT ANY TIME. IT IS PERMANENTLY LUBRICATED

AND SEALED.

Rating Plate

The model, type and serial numbers are

indicated on the rating plate located on the

control panel or motor hood. For prompt

and complete service information, always

refer to these numbers when inquiring

about service.

PLANNING

If your home already has the system of plastic pipes and inlet valves, you are ready

to install the power unit (refer to Install Power Unit section below). If not, you can

contract to have the system installed by a professional or you may choose to do-it-

yourself. If you plan to install the system yourself, it is important to carefully plan the

location of each inlet valve, the power unit, and the network of plastic pipes. This

booklet only deal with the installation of the power unit; "How-To" booklets are gen-

erally included with installation kits. Careful planning will help you determine the

installation kits to buy. The kits should contain enough plastic pipe and fittings, and

inlet valves for your needs. Check with your dealer if you have any questions.

MODEL

TYPE

SERIAL NO.

VOLTS

AMPS

HERTZ

THE EUREKA COMPANY

Powerhead (Optional)

A rotating brush sweeps and combs the carpet nap. Keep the brush free from hair

and threads so it will continue brushing the carpet nap. When the bristles no longer

touch a piece of cardboard held across the bottom plate, the brush roll should be

serviced by an Authorized Warranty Service (refer to Service Information in the front

of this booklet).

Powerhead Belt

The brush roll belt on the motorized nozzle drives the brush to agitate, sweep, and

comb the carpet nap. The belt should be checked regularly to be sure it is in good

condition. Replace the belt if it is stretching, cracking, or slipping. Cut away any hair

or thread wound around the brush roll or the belt pulleys because the buildup could

cause the belt to rotate unevenly.

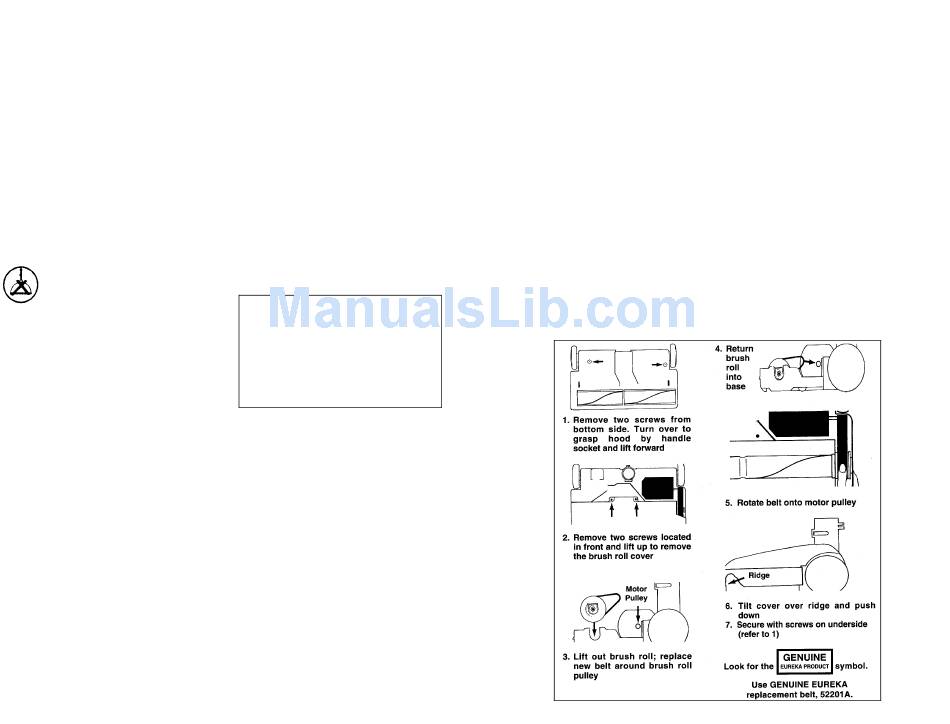

How to Replace Worn Belt

NOTE:

D D D D i i i i s s s s c c c c o o o o n n n n n n n n e e e e c c c c t t t t p p p p o o o o w w w w e e e e r r r r c c c c o o o o r r r r d d d d f f f f r r r r o o o o m m m m e e e e l l l l e e e e c c c c t t t t r r r r i i i i c c c c a a a a l l l l o o o o u u u u t t t t l l l l e e e e t t t t b b b b e e e e f f f f o o o o r r r r e e e e r r r r e e e e p p p p l l l l a a a a c c c c i i i i n n n n g g g g b b b b e e e e l l l l t t t t . . . . B B B B e e e e l l l l t t t t p p p p u u u u l l l l - - - -

NOTE:

l l l l e e e e y y y y s s s s c c c c a a a a n n n n b b b b e e e e c c c c o o o o m m m m e e e e h h h h o o o o t t t t d d d d u u u u r r r r i i i i n n n n g g g g n n n n o o o o r r r r m m m m a a a a l l l l u u u u s s s s e e e e . . . . T T T T o o o o p p p p r r r r e e e e v v v v e e e e n n n n t t t t b b b b u u u u r r r r n n n n s s s s , , , , a a a a v v v v o o o o i i i i d d d d t t t t o o o o u u u u c c c c h h h h i i i i n n n n g g g g

the belt pulley when servicing the drive belt.
