Storage

When not in use, remove the POWER-TOUCH handle from the motorized nozzle wands

and place the hose on the hose storage bracket.

Cleaning Accessories

Optional accessories for the built-in vacuum system are available through your local

dealer or direct from The Eureka Company.

For location of nearest Eureka Warranty Station or Service Information call 1-800-

282-2886.

NOTE:Some models feature a motorized nozzle. Assembly and use instructions follow.

• Do not use without dust bag or filter(s) in place.

* • Belt pulleys can become hot during normal use. To prevent burns, avoid touching

the belt pulley when servicing the drive belt.

• Use extra care when cleaning on stairs.

• Do not pick up flammable or combustible liquids such as gasoline, or use in areas

where they may be present.

• Keep your work area well lighted.

• Unplug electrical appliances before vacuuming them.

*Some models

Grounding Instructions

This appliance must be grounded. If it should malfunction or breakdown, grounding

provides a path of least resistance for electric current to reduce the risk of electric

shock. This appliance is equipped with a cord having an equipment-grounding conduc-

tor and grounding plug. The plug must be plugged into an appropriate outlet that is

properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of an equipment-grounding conductor can result in risk of elec-

tric shock. Check with qualified electrician or service person if you are in doubt as to

whether the outlet is properly grounded. Do not modify the plug provided with the

appliance. If it will not fit the outlet, have proper outlet installed by a qualified techni-

cian.

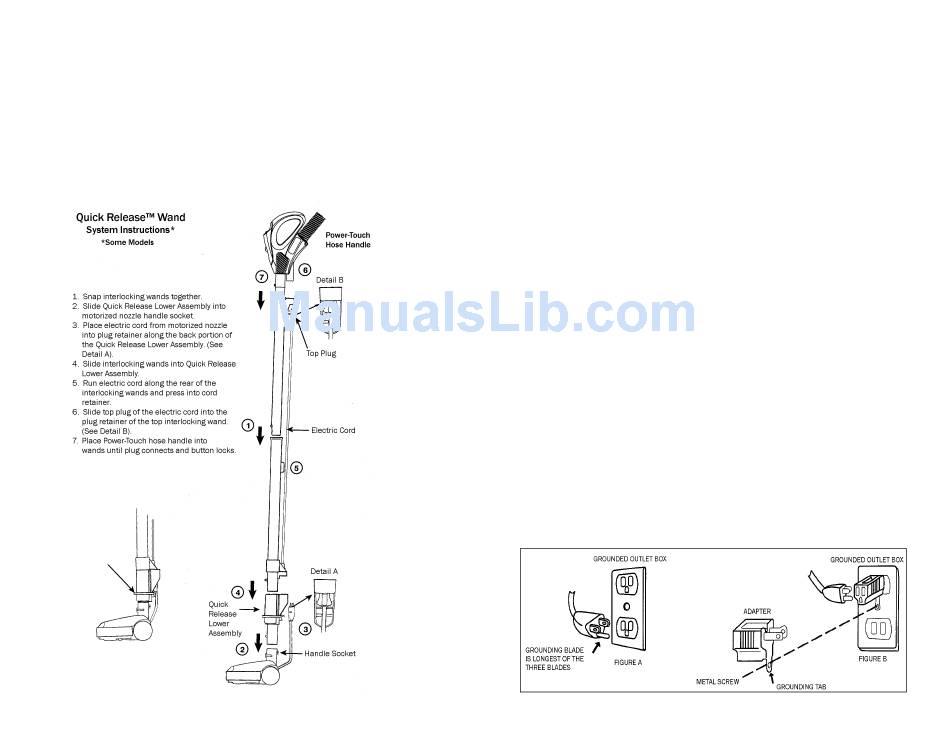

This appliance is for use on a nominal 120 volt circuit and has a grounding plug that

looks like the plug illustrated in Figure A. A temporary adapter which looks like the

adapter illustrated in Figure B may be used to connect this plug to a two-pole recepta-

cle, as shown, if a properly grounded outlet is not available. The temporary adapter

should be used only until a properly ground outlet, Figure A, can be installed by a qual-

ified electrician. The green colored rigid ear, lug or the like extending from the adapter

must be connected to a permanent ground such as a properly grounded outlet box

cover. Whenever the adapter is used, it must be held in place by a metal screw.

NOTE:

I I I I n n n n C C C C a a a a n n n n a a a a d d d d a a a a , , , , t t t t h h h h e e e e u u u u s s s s e e e e o o o o f f f f a a a a t t t t e e e e m m m m p p p p o o o o r r r r a a a a r r r r y y y y a a a a d d d d a a a a p p p p t t t t e e e e r r r r i i i i s s s s n n n n o o o o t t t t p p p p e e e e r r r r m m m m i i i i t t t t t t t t e e e e d d d d b b b b y y y y t t t t h h h h e e e e C C C C a a a a n n n n a a a a d d d d i i i i a a a a n n n n

Electrical Code.

SAVE THESE INSTRUCTIONS
