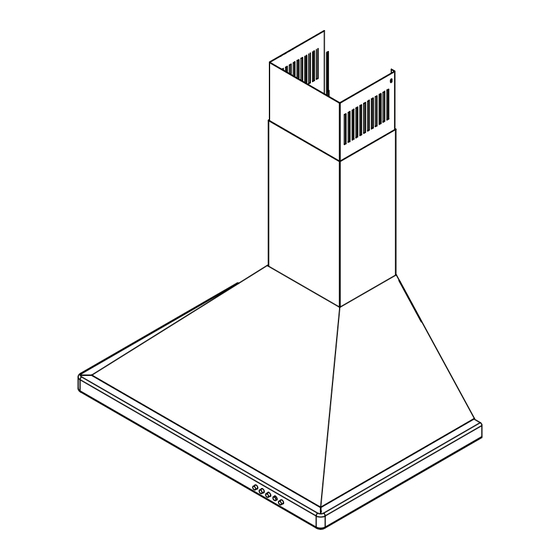

- Page 1 Brisas BMI-E36AG BMI-E36AS BSI-E36AS BVE-E30AS BVE-E36AS Model number: Serial Number: SEP08.0101 © Zephyr Corporation...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Speci cations 8-10 ........... Mounting the Hood BMI & BSI ......Mounting the Hood BVE......... 12 Ductless Recirculating ..........FEATURES &...
- Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
-
Page 5: Operation
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and filters in place. -
Page 6: Hardware Package Contents
www.zephyronline.com MODELS: BMI-E30AS BMI-E30AG BSI-E30AG BVE-E30AS BVE-E36AS PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - Hardware package 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs 2 - Metal mesh filters 1 - Canopy, glass or stainless steel (for BMI and BSI models only) - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8” Round, 30 Ft.
-
Page 8: Damage - Shipment/Installation
www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than * Min. ducted (A) 32”. Min. recirc. (B) Max. It is important to install the hood at the proper mounting height. - Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
- Page 10 www.zephyronline.com...
- Page 11 8 " 8 " 16 " 16 " 4 " 16 " 8 "...
- Page 12 www.zephyronline.com...
- Page 13 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. (24” minimum from range top) . 2. Plum and mark center line. 3.
- Page 14 www.zephyronline.com CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. Duct Cover Bracket (24” minimum from range top) . 2. Plum and mark center line. 4"...
- Page 15 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and re- circulated back within the home.
- Page 16 www.zephyronline.com...
-
Page 17: Surface Maintenance
SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. -
Page 18: Replacing Light Bulbs
If bulbs are dif cult to turn due to prolonged use, firmly attach a glass suction cup approximately the diameter of the bulb or use a rubber/latex glove and turn counter clockwise. Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen. For Zephyr part numbers please turn to page 18 of the manual. - Page 19 TROUBLESHOOTING PROCEDURES FOR BRISAS Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 20 www.zephyronline.com DESCRIPTION PART# Replacement Parts Light Bulb GU-10 50W (each) Z0B-0020S Optional Accessories Recirculating Kit BRC-0002 (for BMI & BSI) BRC-0001 (for BVE) Replacement Charcoal Filter Z0F-C002 Duct Cover Extension B1C-00MI (for BMI & BSI) B1C-00VE (for BVE) To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
- Page 21 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows: One Year Limited Warranty for Parts: For one year from the date of your original purchase of the Products, we will provide, free of charge, Products or parts to replace those that failed due to manufacturing defects.
