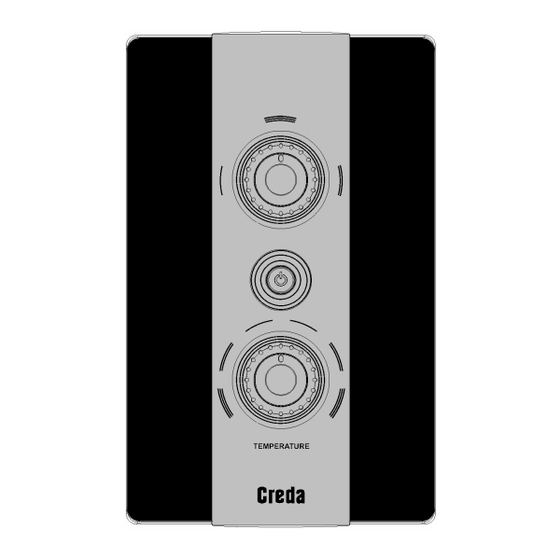

Creda AquaNoir Installation And User Manual

HOW TO USE YOUR AquaNoir SHOWER (SUMMARY)

1. Ensure the electricity and water are turned on to the unit.
2. Press the start / stop button "B".
This will turn the shower on, the water will flow and the
area around the control knobs and button will illuminate.
It is recommended that you do not wholly enter
the water flow during this period.
3. Knob "A" controls the power selection.
Select High (2 red bands), Medium (1 red band) or
Cold (1 white band).
The pointer on the knob indicates setting.
4. If the water is not at your desired showering
temperature, turn knob "C" a small amount
until you reach the desired showering temperature.
Turn clockwise towards the white bands for cooler.
Turn anti-clockwise towards the red bands for warmer.
5. When you have finished showering,
press the start / stop button "B" again.
The illuminated areas will go out.
10.5kW Models Only-Water will continue to flow for approximately 7 seconds before switching off
6. Switch off the electricity supply at the ceiling switch or local isolator.
Notes
• Wait 20 seconds for the temperature to stabilise after each adjustment.
• If the shower has been recently used, it may take up to 20 seconds to come on.
During this time the water may go from very hot to cold before stabilising.
• The position of knob "C" will be approximately the same each time the shower is used,
varying only with incoming water temperature or pressure changes
(e.g. you will only need to change from summer to winter).
• During normal operation, if an overheated water temperature is sensed then the heater
will switch off.
Water will continue to flow and cool down before the heater switches back on again.
IMPORTANT WARNINGS!
DO NOT SWITCH THE APPLIANCE ON IF YOU SUSPECT IT OF BEING FROZEN.
WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT.
DO NOT OPERATE THE APPLIANCE IF WATER DISCHARGES FROM THE PRESSURE RELIEF
VALVE. MAINTENANCE IS REQUIRED BEFORE THE APPLIANCE CAN BE SAFELY USED.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN AND
THE INFIRM) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES,
OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN
SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE
BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY
DO NOT PLAY WITH THE APPLIANCE.
We offer a technical advisory service on the telephone to installers and
other customers with problems in the field. RING 0844 372 7766 (UK ONLY)
(A3) Leaflet No. 567-2277-03a
16
AquaNoir Range
ELECTRIC SHOWERS
Installation and User Guide
IMPORTANT:
This booklet should be left with the user
after installation and demonstration
