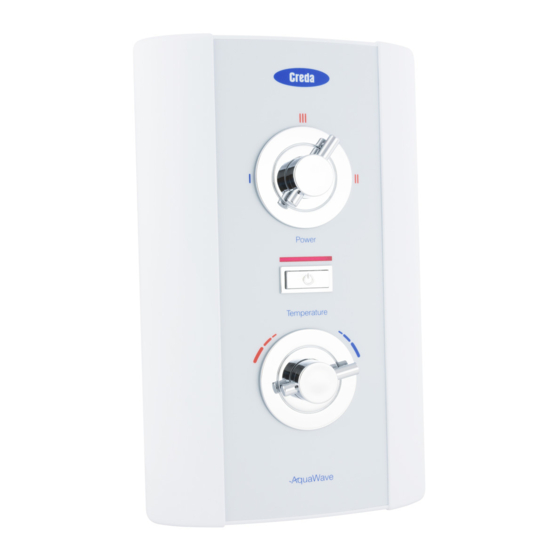

Electric shower (covers white, colour and heritage models)

Advertisement

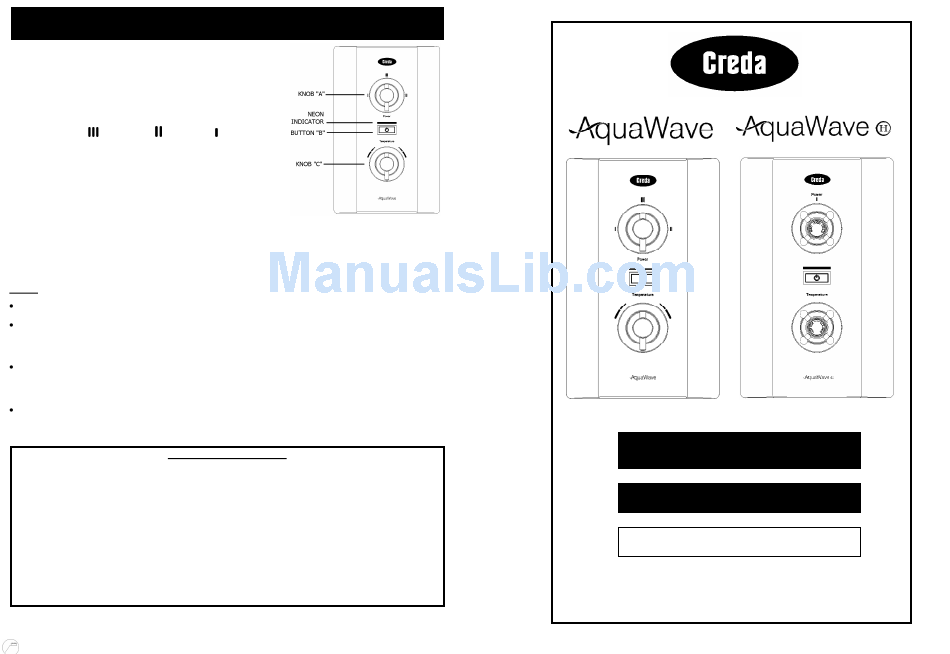

HOW TO USE YOUR AQUAWAVE CONTEMPORARY SHOWER (SUMMARY)
Relates to the Contemporary Shower Range ONLY, see unique section for Heritage Range
1. Ensure the electricity and water are turned on to the unit.
2. Press the start / stop button "B".
This will turn the shower on, the water will flow and the
neon indicator light will illuminate. It is recommended that
you do not wholly enter the water flow during this period.
3. Knob "A" controls the power selection.
Select "High /
", "Medium /
" or "Cold / "
The "small bar" indicates knob setting.
4. If the water is not at your desired showering
temperature, turn knob "C" a small amount until you
reach the desired showering temperature.
Turn clockwise for cooler.
Turn anti-clockwise for warmer.
5. When you have finished showering, press the start / stop button "B" again.
The water will stop flowing and the neon indicator will go out.
10.5kW Models Only-Water will continue to flow for approximately 7 seconds before switching off.
6. Switch off the electricity supply at the ceiling switch or local isolator.
Notes
Wait 20 seconds for the temperature to stabilise after each adjustment.
The neon indicator light illuminates when the heaters are on and, if the shower has
been recently used, it may take up to 20 seconds to come on.
During this time the water may go from very hot to cold before stabilising.
The position of knob "C" will be approximately the same each time the shower is
used, varying only with incoming water temperature or pressure changes
(e.g. you will only need to change from summer to winter).
During normal operation, if an overheated water temperature is sensed then the
heater will switch off and the neon indicator light will go out.
Water will continue to flow and cool down before the heater switches back on again.
IMPORTANT WARNINGS!
DO NOT SWITCH THE APPLIANCE ON IF YOU SUSPECT IT OF BEING FROZEN.
WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT.
DO NOT OPERATE THE APPLIANCE IF WATER DISCHARGES FROM THE PRESSURE RELIEF
VALVE. MAINTENANCE IS REQUIRED BEFORE THE APPLIANCE CAN BE SAFELY USED.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN)
WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES,
OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN
SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE
BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY
DO NOT PLAY WITH THE APPLIANCE.
We offer a technical advisory service on the telephone to installers and
other customers with problems in the field. RING 0870 9000 430 (UK ONLY)
(A3) Leaflet No. 567-2151-04 Revision A
16
AQUAWAVE RANGE
(Covers White, Colour and Heritage Models)
ELECTRIC SHOWER
Installation and User Guide
IMPORTANT:
This booklet should be left with the user
after installation and demonstration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquawave White and is the answer not in the manual?

Questions and answers

Summary of Contents for Creda Aquawave White

  • Page 1 HOW TO USE YOUR AQUAWAVE CONTEMPORARY SHOWER (SUMMARY) Relates to the Contemporary Shower Range ONLY, see unique section for Heritage Range 1. Ensure the electricity and water are turned on to the unit. 2. Press the start / stop button “B”. This will turn the shower on, the water will flow and the neon indicator light will illuminate.
  • Page 2: Table Of Contents

    How to install your Aquawave Shower ..2. Press the start / stop button “B”. Creda After Sales Service ... . . Cold Water Inlet Pipe Configuration..
  • Page 3: How To Install Your Aquawave Shower

    If rear, please read the section on plumbing. To aid installation, you may find it convenient to FAX: +44 (0) 1733 310606 move the flexible pressure relief valve outlet assembly by removing the two securing screws. Website: www.creda-showers.co.uk If you do, please ensure that they are fully tightened on re-assembly (see Diagram 2b).
  • Page 4 These can result from toilets being flushed or taps being turned on and off. 7. The shower is designed to have an open outlet and should only be used with “Creda” recommended When this happens your showering temperature will be held within a controlled band, provided that fittings.
  • Page 5: Cold Water Inlet Pipe Configuration

    Check circuit through push button switch. If items are defective then replace. “B” is pressed. Power supply not reaching shower. CREDA AFTER SALES SERVICE We offer a technical advisory service on the telephone to installers and other customers with problems in the field.
  • Page 6 OF THE TERMINAL BLOCK. Handset - Heritage Cat No. 93593571 Credit or Debit cards from Height Adjuster - Heritage Cat No. 93590361 Creda Sales Hotline 0870 9000 420 5. Re-fit the detachable bottom section with the two screws if it was removed.
  • Page 7 HOW TO USE YOUR AQUAWAVE HERITAGE SHOWER (DETAILED) Relates to the Heritage Shower Range ONLY, see unique section for Contemporary Range Ensure the electricity and water are turned on to the unit. Your shower has 2 control knobs (see Diagram 6b). Knob “A”...
  • Page 8: Assembly Of Accessories

    HOW TO USE YOUR AQUAWAVE CONTEMPORARY SHOWER (DETAILED) ASSEMBLY OF ACCESSORIES Relates to the Contemporary Shower Range ONLY, see unique section for Heritage Range Diagram 5a Ensure the electricity and water are turned on to the unit. Diagram 5b Contemporary Colour Model Contemporary Your shower has 2 control knobs (see Diagram 6a).
