Rear panel

Refer to Figure 2 and Table 3 to connect the appropriate devices.

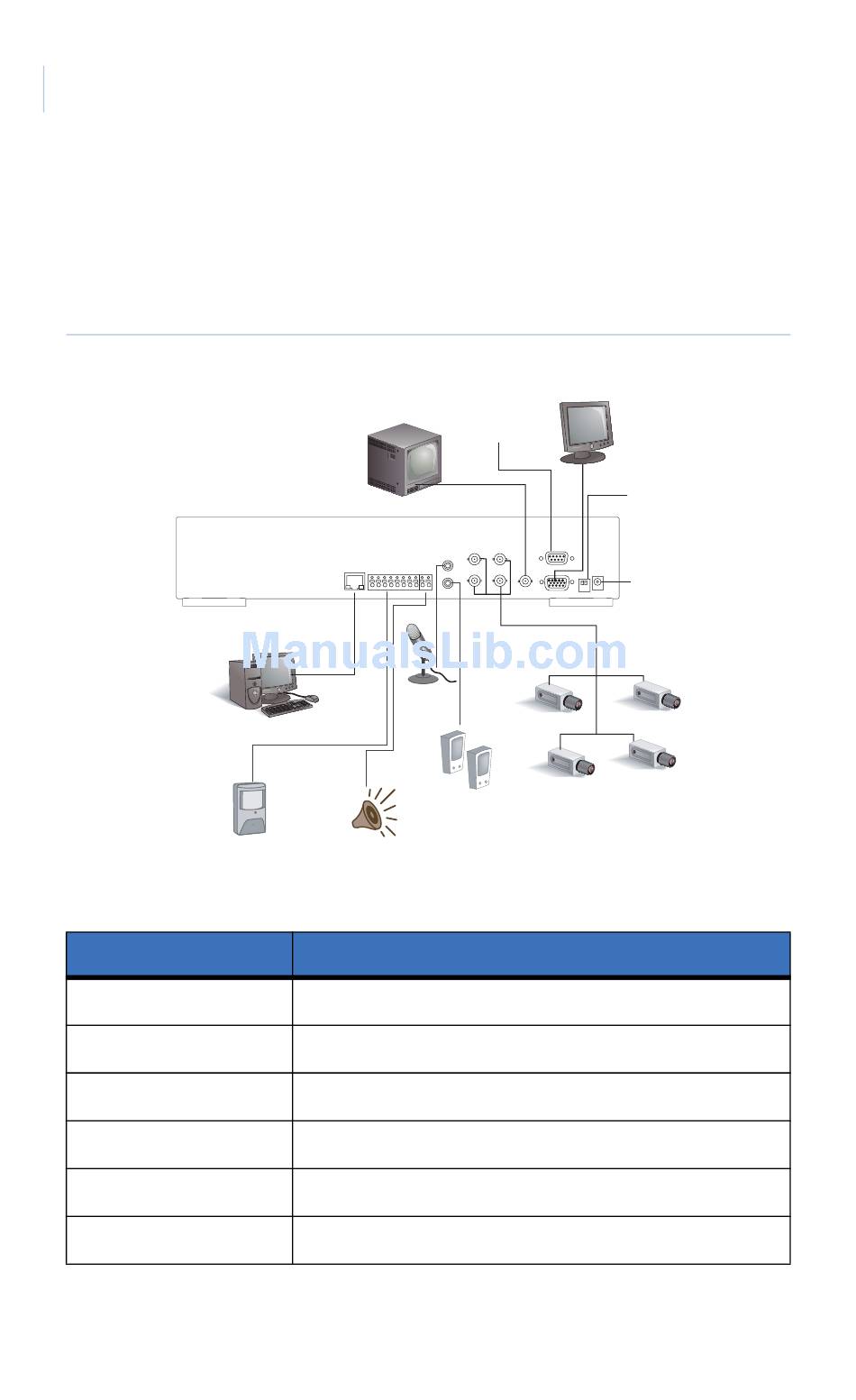

Figure 2. Rear panel
LAN for
connection to
the Digia Client
Four sensor inputs
Table 3. Rear panel connections
Connection
Video in
Line in
Line out
Video out
VGA
RS-232C
CCTV monitor
Line in
Alarm output
Purpose
Four BNC connectors for video input.
One connection for audio input.
One connection for audio output.
One connection for video output.
One connection to use a VGA monitor.
For future use.
RS-232 for
future use
Four cameras
Line
out
VGA monitor
PAL and VGA
switches
To 12 VDC
power supply
