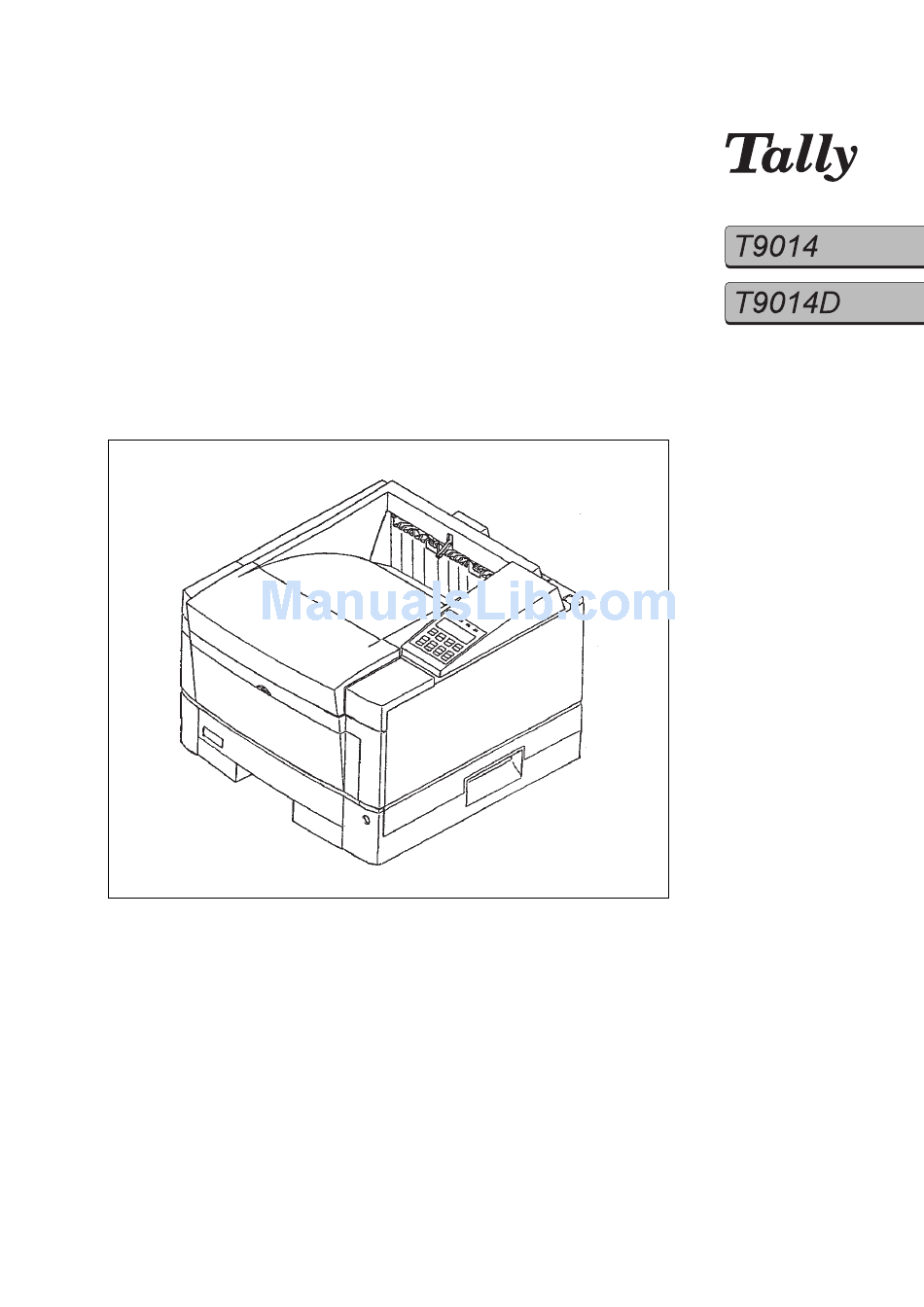

  • Page 1 Maintenance Manual Laser Printer...
  • Page 2 Spare Parts Visual Index of Parts 8.12 Cleaner 8.11 Print Unit 8.2 Upper Cover 8.8 Power Unit 8.10 Paper Tray 8.3 Printer 8.9 Heat Roller Unit 8.7 Laser Diode Stay 8.6 Base Frame 8.4 Printer Mecha Unit 1 8.5 Printer Mecha Unit 2...

  • Page 3: Spare Parts

    Spare Parts Upper Cover Item name ID-No. parts status 1–7 U COVER SUB ASY T9014 397 232 1–7 U COVER SUB ASY T9014D 397 211 A, B UPPER COVER 397 291 SHADE COVER ASY 397 292 UPPER DOOR 397 293...
  • Page 4 Spare Parts Printer...
  • Page 5 FRONT COVER 397 305 LOGO LABEL TALLY PAPER TRAY T9014D A4 397 512 PAPER TRAY T9014D LETTER 397 513 PAPER TRAY T9014 A4 397 516 PAPER TRAY T9014 LETTER 397 534 POWER UNIT 100-120V POWER UNIT 220-240V BASE FRAME ASY...
  • Page 6 Spare Parts Printer Mecha Unit 1 35 18...
  • Page 7 SHEET 397 309 PE LEVER 397 310 HV GUIDE 397 311 HV BOARD T9014D 397 221 A, B HV BOARD T9014 397 235 A, B TAPPING SCREW – MECH BOARD T9014D 397 227 A, B MECH BOARD T9014 397 236...
  • Page 8 Spare Parts Printer Mecha Unit 2-1...
  • Page 9 Spare Parts Item name ID-No. parts status 1–20 FRAME L ASY FRAME L SUB ASY 2–4 P MOTER ASY PICK MOTOR 397 216 A, B SCREW – PM BRACKET ASY TAPPING SCREW GEAR P 397 328 MFF GEAR A ASY 397 329 MFF GEAR B MFF GEAR C...
  • Page 10 Spare Parts Printer Mecha Unit 2-2 8-10...
  • Page 11 Spare Parts Item name ID-No. parts status GEAR BOX ASY FRAME R SUB ASY TAPPING SCREW 4–13 COVER R ASY 397 332 LOWER COVER R PSS BOARD 397 228 A, B TAPPING SCREW PSS CABLE PT LOCK LEVER PT LOCK SPRING 10–11 PLATE R ASY LOWER PLATE R...
  • Page 12 Spare Parts Base Frame 8-12...
  • Page 13 SHEET RE1 397 393 SHEET RE2 397 394 FG PLATE T 397 395 TRCG UNIT T9014D 397 217 A, B TRCG UNIT T9014 397 233 A, B PAPER GUIDE F TAPPING SCREW – DUMPER F 17–20 R MOTOR ASY REGIST MOTOR...

  • Page 14: Laser Diode Stay

    Spare Parts Laser Diode Stay 8-14...
  • Page 15 Spare Parts Item name ID-No. parts status 1–18 LD STAY ASY LD STAY LD UNIT 397 348 LD FG COVER 397 349 SCREW – 5–6 DCH LED UNIT 397 350 DCH LED LED HOLDER 7–16 FRAME 2 ASY 397 231 A, B PAPER FRAME 2 FEED 2 ASY...

  • Page 16: Power Unit

    Spare Parts Power Unit 8-16...
  • Page 17 Spare Parts Item name ID-No. parts status 1–00 POWER UNIT 110-120V POWER UNIT 220-240V PB COVER POWER BOARD 100-120V 397 358 POWER BOARD 220-240V 397 220 TAPPING SCREW – SCREW – SWITCH COVER 397 359 SENSOR LEVER 5 7–20 PAPER FRAME ASY PAPER FRAME SENSOR LEVER 6 EJECT ROLLER...

  • Page 18: Heat Roller Unit

    Spare Parts Heat Roller Unit 29 30 8-18...
  • Page 19 Spare Parts Item name ID-No. parts status 1–33 HR UNIT 120V HR UNIT 220-240V 397 240 1–25 HR SUB UNIT 120V HR SUB UNIT 220-240V 1–17 HR BASE UNIT HR FRAME ASY 1 BU ROLLER ASY BEARING BR BEARING HEAT ROLLER ASY BEARING HR GEAR HR RING HR...

  • Page 20: Paper Tray

    Spare Parts 8.10 Paper Tray 8-20...
  • Page 21 397 381 PLATE ASY 397 382 PAPER GUIDE E 397 383 HOLDER 397 384 SEPARATOR T9014D 397 222 A, B SEPARATOR T9014 397 235 A, B P SIZE LEVER 397 386 SIZE LABEL A4 – SIZE LABEL LETTER – 8-21...

  • Page 22: Print Unit

    Spare Parts 8.11 Print Unit Item name ID-No. parts status 1–4 PRINT UNIT DEV. UNIT DRUM UNIT 044 858 P LOCK ASY TONER BOTTLE 044 857 8-22...
  • Page 23 Spare Parts 8.12 Cleaner, T9014D only Item name ID-No. parts status 1–4 CLEANER 397 307 CL PAD ASY 044 859 2–4 CL HOLDER ASY 397 387 CL HOLDER CL P PLATE CL SPRING 8-23...
  • Page 24 Spare Parts 8.13 Duplex Unit for T9014D 27~29 8-24...
  • Page 25 Spare Parts Item name ID-No. parts status 1–44 DUPLEX UNIT BOARD COVER 397 398 TAPPING SCREW – STAY 397 399 SCREW – ROM BOARD 397 400 A, B SCREW – AL SHEET 397 401 SPACER 397 402 9–12 COVER L ASY SIDE COVER L 397 403 SHEET...
  • Page 26 Spare Parts 8.14 Duplex Unit for T9014D (Base Unit) 8-26...
  • Page 27 Spare Parts Item name ID-No. parts status 1–15 BASE UNIT BASE ASY CONNECT BRACKET 397 427 SCREW – SIDE FRAME L 397 428 BINDING HEAD SCREW – SCREW – SIDE FRAME R 397 429 BINDING HEAD SCREW – SCREW – U CONNECTOR ASY 397 430 SCREW...
  • Page 28 Spare Parts 8.15 Duplex Unit for T9014D (Base ASY) 7 10 21 20 8-28...
  • Page 29 Spare Parts Item name ID-No. parts status 1–42 BASE ASY 1–14 BASE SUB ASY BASE FRAME ASY BEARING D4 397 435 ROLLER G 397 436 ROLLER H 397 437 5–6 UPPER GUIDE ASY UPPER GUIDE ASY 397 438 ROLLER 397 439 SCREW –...
  • Page 30 Spare Parts 8.16 Duplex Unit for T9014D (Base Frame ASY) 14(R) 8-30...
  • Page 31 Spare Parts Item name ID-No. parts status 1–42 BASE FRAME ASY 1–24 BASE FRAME S ASY FRAME ASY 2–6 M BRACKET ASY M BRACKET S ASY 397 468 STEPPING MOTOR 397 469 A, B SCREW – GEAR V 397 470 GEAR W 397 471 SCREW...
  • Page 32 Spare Parts 8.17 Duplex Unit for T9014D (Rear Unit 1) 29 55 8-32...
  • Page 33 Spare Parts Item name ID-No. parts status 1–60 REAR UNIT R GEAR A 397 491 R GEAR B 397 492 R GEAR D 397 493 R GEAR F 397 494 R GEAR K 397 495 RETAINING RING 397 459 STACKER 397 496 TAPPING SCREW –...
  • Page 34 Spare Parts 8.17 Duplex Unit for T9014D (Rear Unit 2) 29 55 8-34...
  • Page 35 Spare Parts Item name ID-No. parts status 30–31 SWITCH GUIDE SWITCH GUIDE SG DUMPER IDLE ROLLER 33~–41 PAPER GUIDE ASY PAPER GUIDE 34–35 ROLLER ASY ROLLER ROLLER HOLDER SPRING RH SWITCH LEVER A SPRING SLA LOCK LEVER L LOCK LEVER R DUMPER TAPPING SCREW 43–46...
  • Page 36 Spare Parts 8.18 Feeder Unit for T9014 / T9014D 8-36...
  • Page 37 Spare Parts Item name ID-No. parts status 1–3 FEEDER UNIT (WITHOUT PAPER TRAY) CE MARK FEEDER UNIT (WITHOUT PAPER TRAY) UL (FOR FCPA) FEEDER UNIT (WITHOUT PAPER TRAY) CSA (FOR FC1) 1–7 FEEDER UNIT (WITH PAPER TRAY A4) CE MARK FEEDER UNIT (WITH PAPER TRAY LETTER) UL (FOR FCPA) FEEDER UNIT (WITH PAPER TRAY LETTER) CSA (FOR FC1) FEEDER UNIT...
  • Page 38 Spare Parts 8.19 Feeder Unit for T9014 / T9014D (Feeder Unit) 8-38...
  • Page 39 Spare Parts Item name ID-No. parts status 1–24 FEEDER UNIT FEEDER SUB ASY 2–5 RR ASY RR FRAME 397 505 R SHAFT 397 506 BEARING F2 397 507 SPRING R2 397 508 TAPPING SCREW – 7–12 PR ASY PR BRACKET 397 509 SHAFT P2 ASY 397 510...
  • Page 40 Spare Parts 8.20 Feeder Unit for T9014 / T9014D (Feeder Sub ASY) 8-40...
  • Page 41 Spare Parts Item name ID-No. parts status 1–24 FEEDER SUB ASY MAIN FRAME ASY SHAFT F ASY 397 521 BEARING PF2 397 513 INSIDE F-GUIDE TAPPING SCREW – LOCK SPRING 397 522 LOCK LEVER 397 523 GEAR F 397 524 GEAR 397 525 PM2 BRACKET ASY...
  • Page 42 Spare Parts 8.21 Feeder Unit for T9014 / T9014D (Paper Tray) 8-42...
  • Page 43 Spare Parts Item name ID-No. parts status 1–14 PAPER TRAY 1–9 PT SUB ASY 397 536 PAPER TRAY PLATE HOLDER L2 397 537 PLATE HOLDER R2 397 538 PH SPRING 397 539 2ND P-PLATE ASY 397 540 PP SPRING 6 397 541 SEPARATOR ASY 397 542...
