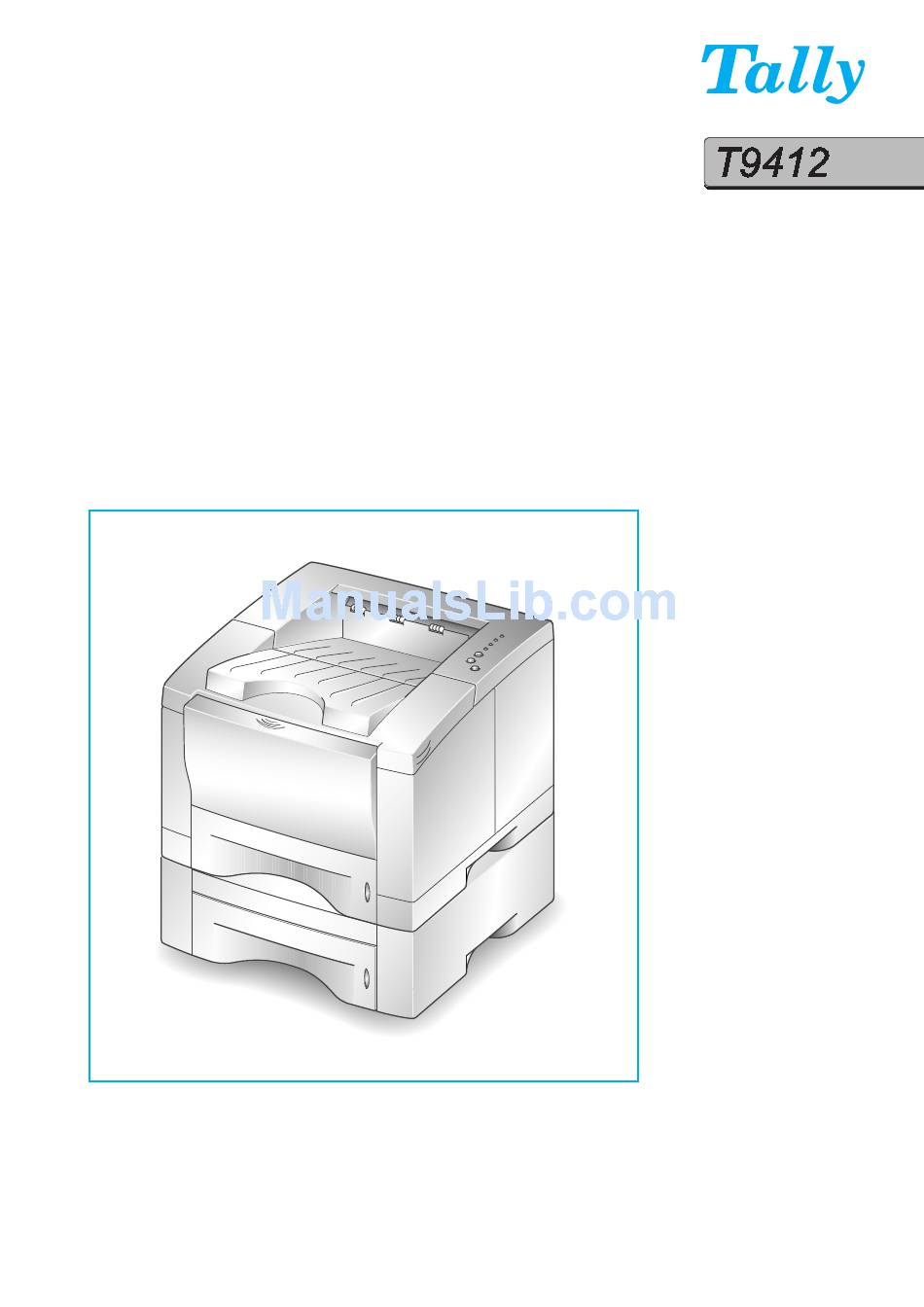

  • Page 1 ® Maintenance manual Laser printer...
  • Page 2 5. Exploded Views and Parts Lists(T9412) Main Exploded View & Parts Lists Cover Exploded View & Parts Lists Frame Exploded View & Parts Lists Exit Exploded View & Parts Lists Fuser Exploded View & Parts Lists Rack-MPF Exploded View & Parts Lists Drive Exploded View &...

  • Page 3: Main Exploded View

    Exploded Views and Parts Lists 5-1 Main Exploded View...
  • Page 4 Exploded Views and Parts Lists Main Parts Lists Location No. Description Id. No. Q'ty ELA HOU TOP-HOUSING UNIT-LSU 398 425 ELA UNIT-MOTOR ELA UNIT-DEVE ELA HOU-MPF MEA RACK-FEEDER CST 398 426 CBF-HARNESS-MOTOR MEA UNIT-FEEDER 398 427 PMO-CAP SENSOR PMO-HOLDER SCF CN 398 428 MEA UNIT-BRKT BOTTOM(L) 398 429...
  • Page 5 Exploded Views and Parts Lists 5-2 Top Exploded View...
  • Page 6 Exploded Views and Parts Lists Top Parts Lists Location No. Description Id. No. Q'ty ELA-HOU COVER MAIN 399 453 PMO-COVER OPEN PMO-COVER MAIN MEA UNIT-MP TRAY 398 438 PMO-COVER-MP NPR-BADGE (45) PMO-TRAY EXTENSION MP PMO-TRAY HOLDER MP IPR-GUIDE LATCH PMO-ADJUSTER_P SIDE PMO-TRAY LINK MP STOPPER HINGE OPEN PMO-LENS LED...

  • Page 7: Frame Exploded View

    Exploded Views and Parts Lists 5-3 Frame Exploded View...
  • Page 8 Exploded Views and Parts Lists Frame Parts Lists Location No. Description Id. No. Q'ty ELA UNIT-FRAME BASE FAN-DC-HAWK 398 444 PMO-GUIDE RIB CBF HARNESS-INLET ASS'Y PMO-HOLDER WIRE PMO-KEY DEVE HAWK CBF HARNESS-ENGINE_CONTROL CBF-HARNESS-FUSER PBA SUB-EXIT SENSOR 398 445 CBF-HARNESS-THERMISTOR JOINT CBF-HARNESS-MP_CLUTCH ENG PBA SUB-FUSER_SW 398 446...
  • Page 9 Exploded Views and Parts Lists Frame Parts Lists Location No. Description Id. No. Q'ty ELA HOU-VARISTOR IPR-TERMINAL TR HAWK ELA UNIT-SENSOR DEVE 22-1 PBA SUB-SWITCH 398 452 22-2 PMO-HOLDER ACTUATOR 22-3 PMO-ACTUATOR DEVE GROUND FU ELA UNIT-TERMINAL TR L 398 455 24-1 ICT-SHAFT HV LARGE 24-2...
  • Page 10 Exploded Views and Parts Lists Location No. Description Id. No. Q'ty ELA UNIT-EMPTY ACT 399 458 32-1 PMO-ACTUATOR EMPTY HAWK 32-2 SPRING EMPTY PMO-HINGE GUIDE FEED GND ICU PMO-CAP SENSOR 399 459 GND MP GEAR-P/UP DRIVE 398 466 GROUND MOTOR IPR-GUIDE DUST IPR-OPC-HAWK CAP CONNECTOR L...

  • Page 11: Exit Exploded View

    Exploded Views and Parts Lists 5-4 Exit Exploded View 5-10...
  • Page 12 Exploded Views and Parts Lists Exit Parts Lists Location No. Description Id. No. Q'ty MEA RACK-HOU EXIT PMO-FRAME REAR GEAR-IDLE 15 RING-CS GEAR-IDLE 25 SPRING-F/DOWN PMO-HOLDER EXIT_F/DOWN PMO-ROLLER-EXIT, MAIN PMO-ROLLER-EXIT, FR MEC-BEARING EXIT RMO-RUBBER EXIT PMO-SHAFT EXIT_F/DOWN GEAR-EXIT RMP-RUBBER EXIT_F/UP 5-11...

  • Page 13: Fuser Exploded View

    Exploded Views and Parts Lists 5-5 Fuser Exploded View 5-12...
  • Page 14 Exploded Views and Parts Lists Fuser Parts Lists Location No. Description Id. No. Q'ty ELA UNIT FUSER (220V) 398 456 SCREW TAPTITE M3 x 8, BH+ SCREW TAPTITE M3 x 10, FH+ SCREW MACHINE M3 x 6 THERMISTOR-FUSER 398 457 NPR-ELECTRODE FU_R NPR-ELECTRODE FU_M NPR-ELECTRODE FU_L...

  • Page 15: Rack-Mpf Exploded View

    Exploded Views and Parts Lists 5-6 Rack-MPF Exploded View 5-14...
  • Page 16 Exploded Views and Parts Lists Rack-MPF Parts Lists Location No. Description Id. No. Q'ty ELA HOU-MPF 398 461 PHOTO-INTERRUPTER 399 465 SCREW-TAPTITE WASHER-PLAIN SOLENOID-HAWK 398 462 CBF-HARNESS-MP_EMPTY SPRING-PICKUP MP SPRING-PICK UP MP 399 466 BRACKET_MP PMO-PLT KNOCK UP ICT-SHAFT PICKUP ,MP PMO-GEAR PICKUP MP PMO-CAM PICK UP(MP) PMO-FRAME MP...

  • Page 17: Drive Exploded View

    Exploded Views and Parts Lists 5-7 Drive Exploded View 5-16...
  • Page 18 Exploded Views and Parts Lists Drive Parts Lists Location No. Description Id. No. Q'ty ELA UNIT-MOTOR 398 464 MOTOR-STEP 398 465 IPR-BRKT GEAR IPR-BRKT MOTOR GEAR-RDCN 145-70 GEAR-RDCN 90-24 GEAR-OPC DRV 135 GEAR-OPC DRIVE2 GEAR-FEED DRV GEAR-CLUTCH 56 GEAR-FUSER DRV23 PMO-CLUTCH LEVER SPRING-CLUTCH WASHER-PLAIN...

  • Page 19: Pick-Up Exploded View

    Exploded Views and Parts Lists 5-8 Pick-Up Exploded View 5-18...
  • Page 20 Exploded Views and Parts Lists Pick-Up Parts Lists Location No. Description Id. No. Q'ty MEA RACK-FEEDER 399 467 SCREW-TAPTITE WASHER-PLAIN SPRING-FEED(1) 399 468 SPRING-FEED(2) 399 469 BEARING-PICK UP GEAR-P/UP DRIVE GEAR-FEED GEAR-PICK UP(12) IPR-SHAFT FEED IPR-SHAFT FEED IDLER IPR-SHAFT PICK UP GROUND_FEED IPR-GUIDE_FEED PMO-HOUSING P/UP...

  • Page 21: Cassette Exploded View

    Exploded Views and Parts Lists 5-9 Cassette Exploded View 5-20...
  • Page 22 Exploded Views and Parts Lists Cassette Parts Lists Location No. Description Id. No. Q'ty MEA RACK-FEEDER CST (500) 398 426 PMO-COVER GUIDE EXT PMO-FRAME CASSETTE PMO-GUIDE EXT CST PMO-GUIDE PAPER PMO-GUIDE SIDE CST PMO-INDICATOR EMPTY PMO-SIDE GUIDE EXT PMO-SUB GUIDE CAST PMO-HOLDER_INDICATOR PMO-LOCKER PLATE IPR-FINGER...
  • Page 23 Exploded Views and Parts Lists 5-10 Second Cassette Frame Exploded View (option) 5-22...
  • Page 24 Exploded Views and Parts Lists Second Cassette Frame Parts List (option) Location No. Description Id. No. Q'ty MEA ETC-FRAME SCF SCREW-TAPTITE PMO-FRAME UPPER PMO-GUIDE ENV IPR-GROUND TOP CASE BODY-TOP PBA SUB-SCF 399 470 PCT-INSULATOR SCF HAWK PMO-HUB CLUTCH SPRING-TS CLUTCH PMO-COLLAR_CLUTCH_PI GEAR-P/UP OPTION SPRING-IDLE,SCF...
  • Page 25 Exploded Views and Parts Lists Location No. Description Id. No. Q'ty PMO-FRAME LEFT SCREW-TAPTITE IPR-GROUND BOTTOM CASE BODY-BOTTOM FOOT-RUBBER SCF CBF HARNESS-SCF GND PMO-FRAME RIGHT IPR-GROUND FEED CBF HARNESS-SCF FEED GND SCREW-MACHINE RING-E 5-24...
  • Page 26 Exploded Views and Parts Lists Second Cassette Exploded View (option) 5-25...
  • Page 27 Exploded Views and Parts Lists Second Cassette Parts List (option) Location No. Description Id. No. Q'ty MEA ETC-CAST SCF RPR-PAD FRICTION "PMO-FRAME PAD SPRING-PAD "PMO-GUIDE PAPER1 IPR-KNOCK UP(SCF) RPR-CORK KNOCKUP LABEL(R)-INSTRUCT S,SEC PMO-SUB GUIDE CASSETTE PMO-GUIDE-SIDE SPRING-SCF LEVER PMO-DETECT PANEL LABEL(R)-HEIGHT NEC IPR-PLATE PAPER PMO-LINK LEVER...
