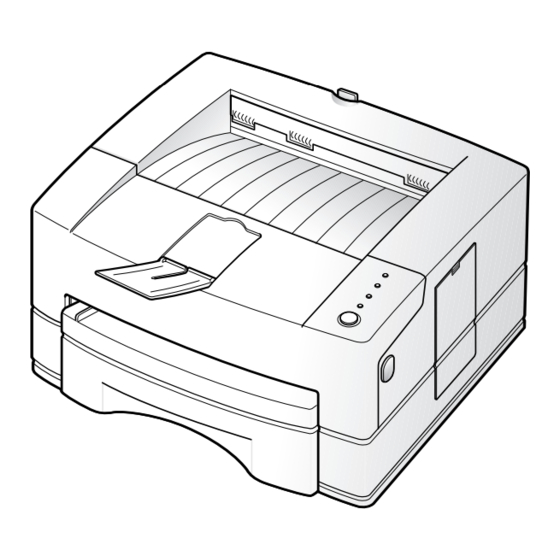

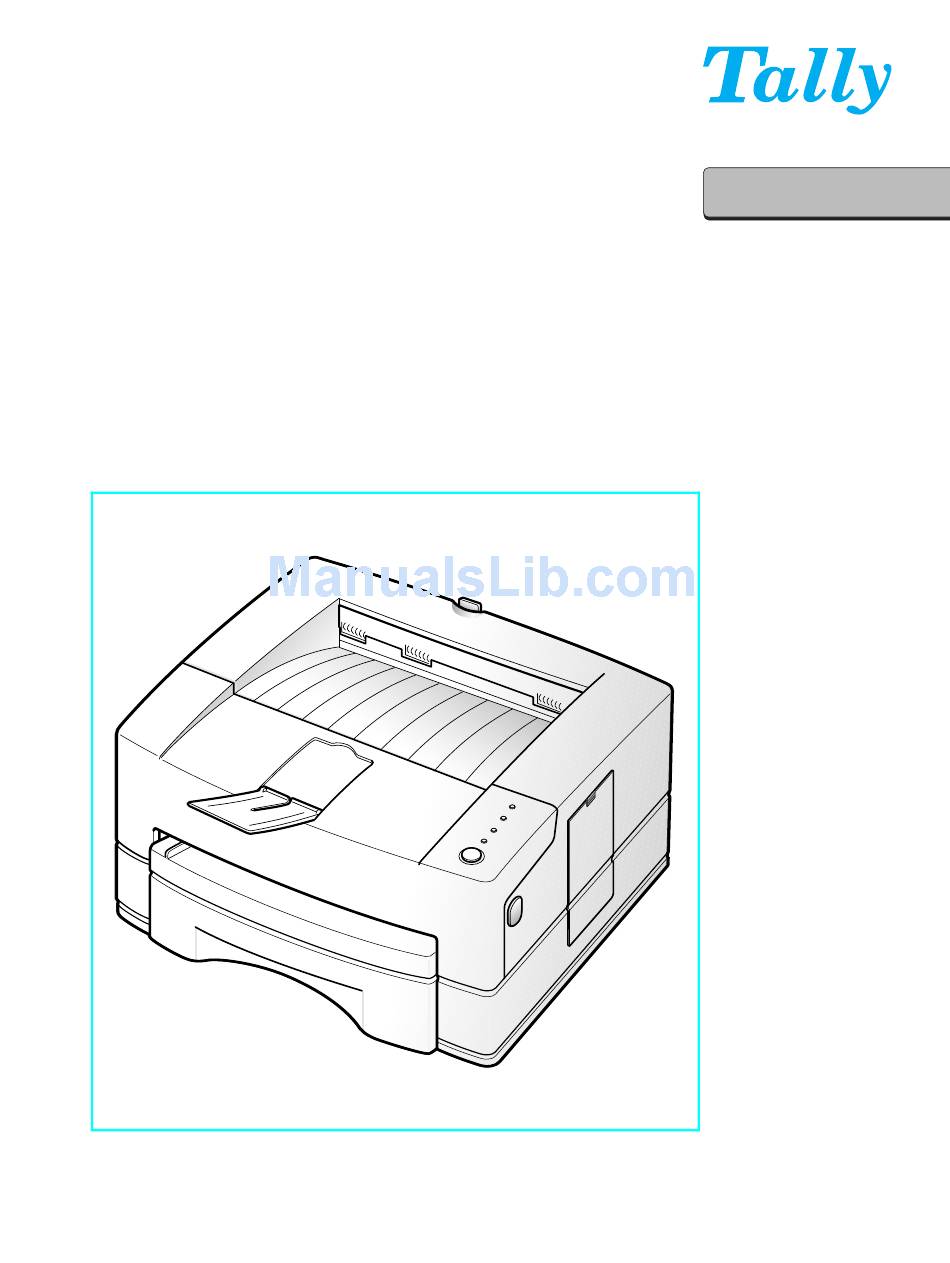

- Page 1 ® T9408 Maintenance manual Laser printer...
-
Page 2: Main Exploded View
Exploded Views and Parts List 6-1. Main Exploded View... -
Page 3: Main Parts List
Exploded Views and Parts List 6-2. Main Parts List DESCRIPTION Part No. Q’TY PART STATUS 6-1-1 MEA ETC-COVER MT 396 108 6-1-2 PRA ETC-MAIN 6-1-3 ELA HOU-CONTROLLER B’D 396 040 6-1-4 ENGINE-6.0 396 041 6-1-5 MEA ETC-FEEDER CAS 396 042 6-1-6 PRA AUTO AXL-DEVE 6-1-7... -
Page 4: Cover Exploded View
Exploded Views and Parts List 6-3. Cover Exploded View... - Page 5 Exploded Views and Parts List 6-4. Cover Parts List DESCRIPTION Part No. Q’TY PART STATUS 6-3-1 PMO-COVERMAIN 396 109 6-3-2 PMO-COVER_EXIT 396 044 6-3-3 PMO-COVER_SIMM 396 110 6-3-4 SPRING-CS:PI0.7,D12.4 6-3-5 PMO-BUTTON_C/O 6-3-6 MEC-HOUSING_COVER 396 111 6-3-7 IPR-SHAFT COVER OPEN 396 045 6-3-8 HINGE-HSGR 396 046...
-
Page 6: Frame Exploded View
Exploded Views and Parts List 6-5. Frame Exploded View... -
Page 7: Frame Parts List
Exploded Views and Parts List 6-6. Frame Parts List DESCRIPTION Part No. Q’TY PART STATUS 6-5-1 FRAME ASS’Y 396 113 6-5-2 BUSH TR INNER 396 054 6-5-3 GEAR-TRANSFER 396 055 6-5-4 GND-TRANSFER,PLATE 6-5-5 HOLDER-TR BEARING,L 396 056 6-5-6 HOLDER-TR BEARING,R 396 057 6-5-7 SPRING PLATE TR... -
Page 8: Fuser Exploded View
Exploded Views and Parts List 6-7. Fuser Exploded View... -
Page 9: Fuser Parts List
Exploded Views and Parts List 6-8. Fuser Parts List DESCRIPTION Part No. Q’TY PART STATUS FUSER ASS’Y 396 071 SPRING EXIT F/UP ROLLER EXIT F/UP ELECTRODE-FU,L THERMOSTAT 396 072 CBF-HARNESS,LAMP 396 073 GEAR-EXIT/L,ID 396 074 GEAR FUSER 396 075 H/R BEARING,L 396 076 H/R BEARING,R 396 077... -
Page 10: Drive Assembly Exploded View
Exploded Views and Parts List 6-9. Drive Assembly Exploded View 6-10... -
Page 11: Drive Parts List
Exploded Views and Parts List 6-10. Drive Parts List DESCRIPTION Part No. Q’TY PART STATUS 6-9-1 ELA-MOTOR MAIN 396 084 6-9-3 GEAR-132/25 396 085 6-9-4 GEAR-125/18 396 086 6-9-5 GEAR-FEED DRV 396 087 6-9-6 GEAR-OPC DRV 396 088 6-9-7 GEAR-IDLE OPC 396 089 6-9-8 GEAR-IDLE,FU... -
Page 12: Pick-Up Exploded View
Exploded Views and Parts List 6-11. Pick-Up Exploded View 6-12... - Page 13 Exploded Views and Parts List 6-12. Pick-Up Parts List DESCRIPTION Part No. Q’TY PART STATUS 6-11-1 PICK UP ASS’Y 396 097 6-11-2 SHAFT-PICK,UP 6-11-3 BEARING-PICK-UP 396 098 6-11-4 LEVEL P/UP 396 099 6-11-5 GND-FEED 6-11-6 FRAME-FEED 6-11-7 HOUSING-PICK,UP 396 100 6-11-8 RUBBER-PICK,UP 396 101...
-
Page 14: Cassette Exploded View
Exploded Views and Parts List 6-13. Cassette Exploded View 6-14... - Page 15 Exploded Views and Parts List 6-14. Cassette Parts List DESCRIPTION Part No. Q’TY PART STATUS 6-13-1 PMO-FRAME CASSETTE 6-13-2 PMO-GUIDE SUB CST 6-13-3 PMO-GUIDE SIDE CST 6-13-4 SPRING-KNOCK UP 396 106 6-13-5 IPR-GUIDE PAPER 6-13-6 IPR-PLATE KNOCK UP 6-13-7 IPR-FINGER 6-13-8 PMO-GUIDE REAR CST 6-13-9...
