Hitachi C 6DC Technical Data And Service Manual

Hitachi C 6DC Technical Data And Service Manual

Cordless circular saw
Hide thumbs Also See for C 6DC:
Table of Contents

Advertisement

Quick Links

Download this manual

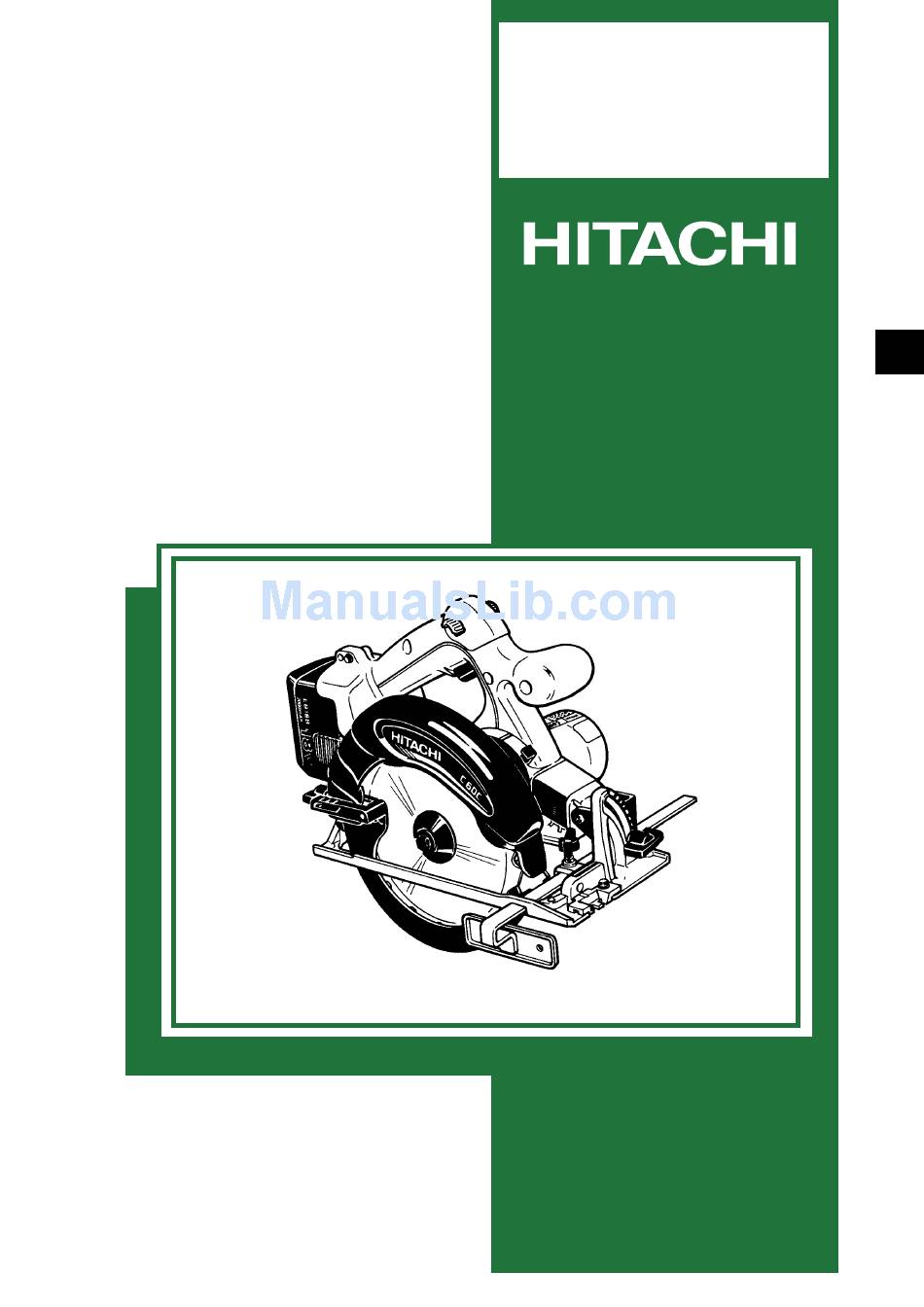

MODEL
C 6DC
POWER TOOLS
C
TECHNICAL DATA
CORDLESS CIRCULAR SAW
AND
C 6DC
SERVICE MANUAL
LIST No. F831
Apr 1999
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

Advertisement

Table of Contents
loading

Related Manuals for Hitachi C 6DC

Summary of Contents for Hitachi C 6DC

  • Page 1 MODEL C 6DC POWER TOOLS TECHNICAL DATA CORDLESS CIRCULAR SAW C 6DC SERVICE MANUAL LIST No. F831 Apr 1999 SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT...
  • Page 2 REMARK: Throughout this TECHNICAL DATA AND SERVICE MANUAL, a symbol(s) is(are) used in the place of company name(s) and model name(s) of our competitor(s). The symbol(s) utilized here is(are) as follows: Competitors Symbols Utilized Model Name Company Name DW936K DEWALT 5620DWA MAKITA...

  • Page 3: Table Of Contents

    [ Appendix ] Assembly Diagram for C 6DC • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 4: Product Name

    1. PRODUCT NAME Hitachi Cordless Circular Saw, Model C 6DC 2. MARKETING OBJECTIVE Circular saws are highly sought in the United States and some other countries where a majority of houses are of 2 x 4 construction. While we have so far met this demand with our AC-powered saws, the need for cordless tools is growing for working on sites with no or few power supply facilities.

  • Page 5: Selling Point Descriptions

    The shape of the handle is an important consideration in designing an easy-to-use circular saw. The shape, angle and location of the Model C 6DC's switch handle is similar to those of AC-powered circular saws that are familiar to users, because of Hitachi's unique design of the battery holder. The figures and the table below give a comparison of switch handles between the Model C 6DC and maker C's saw.
  • Page 6 (4) Convenient spotlight for lighting blade edges and cutting lines The Model C 6DC is the first product in the portable circular saw industry equipped with a spotlight for lighting blade edges. The working efficiency is improved because the spotlight helps to align the saw blade with a premarked cutting line even in a dimly lit workplace.

  • Page 7: Specifications

    5. SPECIFICATIONS Model C 6DC 165 mm (6-1/2") Saw blade diameter at 90 0 --- 57 mm (0 --- 2-1/4") Cutting depth at 45 0 --- 40 mm (0 --- 1-9/16") Type of motor DC magnet motor Type of handle...
  • Page 8 1) Saw blade For America and Canada External diameter Hole diameter No. of teeth Code No. 165 mm (6-1/2") 15.9 mm (5/8") 16 pieces 302407 165 mm (6-1/2") 15.9 mm (5/8") 40 pieces 317451 For Australia and New Zealand External diameter Hole diameter No.

  • Page 9: Comparisons With Similar Products

    6. COMPARISONS WITH SIMILAR PRODUCTS Maker HITACHI Model C 6DC 54 mm (2-1/8") 57 mm (2-1/4") 38 mm (1-1/2") Max. cut depth 40 mm (1-9/16") 38 mm (1-1/2") 28 mm (1-1/8") Diameter 165 mm (6-1/2") 165 mm (6-1/2") 135 mm (5-3/8") Saw blade No.

  • Page 10: Precautions In Sales Promotion

    8. PRECAUTIONS IN SALES PROMOTION In the interest of promoting the safest and most efficient use of the Model C 6DC Cordless Circular Saw by all of our customers, it is very important that at the time of sale the salesperson carefully ensures that the buyer seriously recognizes the importance of the contents of the Handling Instructions, and fully understands the meaning of the precautions listed on the Caution Plate and Name Plate attached to each tool.

  • Page 11: Caution Plates

    (10) Disposal of the Model EB 18B battery. Ensure that all customers understand that Model EB 18B Batteries should be turned in to a Hitachi Power Tool sales outlet or authorized service center when they are no longer capable of being recharged or repaired.

  • Page 12: Inherent Drawbacks Of Cordless Circular Saws Requiring Particular Attention During Sales Promotion

    (1) Do not overload the motor. As the Model C 6DC is a battery-powered cordless circular saw, the motor's output and torque are less than those of ordinary AC-powered circular saws. Do not twist or thrust the main body during cutting. Otherwise, the motor becomes locked and will cause burning of the motor or deterioration of the battery.

  • Page 13: Repair Guide

    9-1. Precautions in Disassembly and Reassembly The [Bold] numbers in the description below and the circled numbers in the following figures correspond to the item numbers in the parts list and the exploded assembly diagram for the Model C 6DC. 9-1-1. Disassembly (1) Removal of the Saw Blade [11] While pressing the Lock Lever [23], turn the Bolt M7 x 17.5 [13] clockwise with the attached Box Wrench...
  • Page 14 (2) Removal of the Safety Cover [4] Remove the three Seal Lock Flat Hd. Screws M3 x 12 [8] and then the Bearing Cover [7]. Remove the Return Spring [5] from the Saw Cover [28]. Remove the Safety Cover [4] from the Bearing Holder [2]. Fig.
  • Page 15 (4) Removal of the Handle Cover [55] Remove the five Tapping Screws (W/Flange) D4 x 16 [56] to remove the Handle Cover [55]. (5) Disassembly of the Gear [1] and Motor (B) [19] (a) Remove the Seal Lock Flat Hd. Screw M5 x 12 [3] to remove the Bearing Holder [2] and the Gear [1]. Remove the Gear [1] from the Bearing Holder [2].
  • Page 16 (6) Removal of the Base Ass'y [46] Extract the Roll Pin D6 x 45 [43] that connects the Base Ass'y [46] and the Housing [32]. Remove the Base Ass'y [46]. Fig. 5 --- 13 ---...
  • Page 17 9-1-2. Reassembly Reassembly can be accomplished by following the disassembly procedures in reverse, with some items to be noted as follows. (1) Reassembly of the components for power supply (a) Be sure to perform wiring connections as indicated in the wiring diagram (Fig. 9-1 or 9-2). For the U.S.A.
  • Page 18 For Australia and New Zealand 60 61 Fig. 6-2 (b) Mount Inner Cover (A) [20] to Motor (B) [19] as illustrated in Fig. 7. Adjust the screw boss of Inner Cover (A) [20] to the hole of Motor (B) [19]. Fig.
  • Page 19 (c) Connect the internal wires as illustrated in Figs. 8-1 and 8-2. Mount the Knob [54], Terminal (A) [53] and Spring (F) [52] without fail. For the U.S.A. and Canada Terminal No.3 After putting 54 knob's "convex" in the hole of terminal (A), assemble into the housing.
  • Page 20 (2) Reassembly of the Gear [1] (a) Apply grease (Hitachi Motor Grease No. 29) to the pinion and the meshing parts of the Gear [1], and also to the inside of the metal of Inner Cover (B) [25]. 5 Grams in total.

  • Page 21: Precautions In Disassembly And Reassembly Of Battery Charger

    For Australia and New Zealand Lamp [57] Black Brown Resistor [49] Motor (B) [19] Switch [51] Blue Resistor (A) [47] Connector [59] Fig. 9-2 (5) Tightening torque of each screw is given below. Machine Screw (W/Washer) M3.5 x 6 [48] 1.5 kg •...

  • Page 22: Standard Repair Time (Unit) Schedules

    9. STANDARD REPAIR TIME (UNIT) SCHEDULES Variable MODEL 60 min. Fixed Work Flow C 6DC Switch Socket Inner Cover (B) Housing Ball Bearing Motor (B) (609VV) Inner Cover (A) Lock Lever General Assembly Saw Blade Saw Cover Safety Cover Gear...

  • Page 23: Assembly Diagram For C 6Dc

    Assembly Diagram for C 6DC --- 20 ---...
  • Page 24 C 6DC PARTS ITEM CODE NO. DESCRIPTION REMARKS USED 317-468 GEAR 308-361 BEARING HOLDER 305-568 SEAL LOCK FLAT HD. SCREW M5X12 317-202 SAFETY COVER 317-203 RETURN SPRING 600-2VV BALL BEARING 6002VVCMPS2S 308-362 BEARING COVER 308-773 SEAL LOCK FLAT HD. SCREW M3X12...
  • Page 25 C 6DC ITEM CODE NO. DESCRIPTION REMARKS USED 317-461 TERMINAL 980-061 SWITCH (1P SCREW TYPE) W/O LOCK 301-631 SPRING (F) 317-207 TERMINAL (A) 314-299 KNOB 317-463 HANDLE COVER 305-812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) 315-229 LAMP (12V 5W) 317-212 SOCKET 959-141 CONNECTOR 50092 (10 PCS.)

  • Page 26: Standard Accessories

    C 6DC STANDARD ACCESSORIES ITEM CODE NO. DESCRIPTION REMARKS USED CHARGER (MODEL UC 24YF) 302-756 GUIDE 940-543 BOX WRENCH 10MM 317-218 CASE 12 ---- 98 Printed in Japan (981220 N) --- 23 ---...
