Reference Manual
Solaira

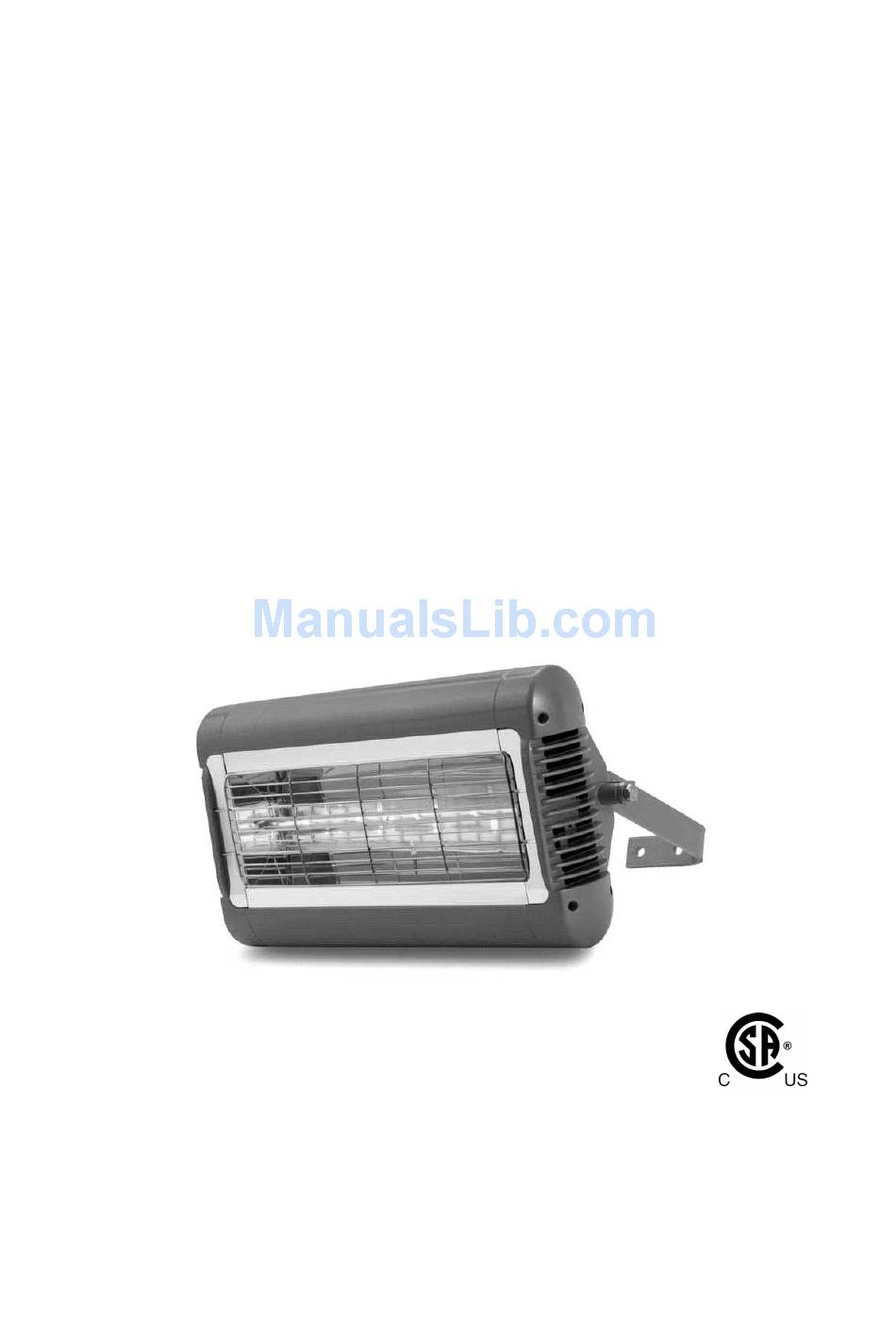

Alpha H1
(Single Emitter)
CANADA & USA MODELS:
SALPHA15120 (120V)
SALPHA10240 (208/240V)
SALPHA15240 (208/240V)
SALPHA20240 (208/240V)
WEATHERPROOF INFRARED HEATERS
SUITABLE FOR OUTDOOR AND INDOOR USE -
RESIDENTIAL, COMMERCIAL AND INDUSTRIAL
INFORESIGHT
CONSUMER PRODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3
Tel: 905-568-7655 Fax: 905-568-7521
Email: info@solairaheaters.com Website: www.solairaheaters.com
Advertisement
Related Manuals for Solaira SALPHA15120
Summary of Contents for Solaira SALPHA15120
- Page 1 Reference Manual Solaira Alpha H1 (Single Emitter) CANADA & USA MODELS: SALPHA15120 (120V) SALPHA10240 (208/240V) SALPHA15240 (208/240V) SALPHA20240 (208/240V) WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE - RESIDENTIAL, COMMERCIAL AND INDUSTRIAL INFORESIGHT CONSUMER PRODUCTS INC. 125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3 Tel: 905-568-7655 Fax: 905-568-7521 Email: info@solairaheaters.com Website: www.solairaheaters.com...
- Page 2 Height x Depth 1500 12.5 12.5 6’ 7” 11¾” 3’ 3½” 17” x 9” x 12¾” 1 x SALPHA15120 1 x 1500 1 x SALPHA10240 208/240 1 x 750/1000 750/1000 3.6/4.2 3.6/4.2 6’ 7” 11¾” 3’ 3½”...
- Page 3 I M P O R T A N T I N S T R U C T I O N S When using electrical INFRARED HEATERS, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before using this heater.
- Page 4 C o n f i g u r a t i o n s The Alpha heater is a single emitter unit - it has one only. It can be installed on its own or joined to one or two more of the same units.
- Page 5 DRILLING HOLE TEMPLATE DIMENSIONS FOR WALL MOUNTED BRACKETS Fig. C Fig. D A s s e m b l i n g T w o S i n g l e H e a t e r s J o i n e d ( W a l l M o u n t e d C h a i n H a n g i n g )
- Page 6 Securely fasten the L-shaped wall brackets to the mounting surface using both of the fixing holes in the short part of the bracket (see Fig. H for mounting hole template centres). Please refer to Table 1 for recommended positioning of the heater. Please note. wall fixings are not supplied. They Fig.
- Page 7 A s s e m b l i n g - T h r e e S i n g l e H e a t e r s J o i n e d Take the first heater and lie it face down on a flat surface. Take the second and third heaters and position them face down and parallel to the first.
- Page 8 Securely fasten the L-shaped wall brackets to the mounting surface using both of the fixing holes in the short part of the bracket (see Fig. L for mounting hole centres). Please refer to Table 1 for recommended positioning of the heater. Please note.
-
Page 9: Connector Block
M a i n t e n a n c e For replacement emitters or spare parts (see diagram on back page) please contact your local distributor quoting model type and rating from rating label. It is very important that your replacement emitter is exactly the same as the one it was supplied with. - Page 10 6. At the front of the heater, gently remove the wire guard by prizing it away from its locating holes at each end of the heater case (Fig. S). Fig. S 7. Remove the screw from the side reflector (Fig. T) and lift the side reflector up and away from the heater. Repeat at the opposite end to remove other side reflector.
- Page 11 Fig. V 9. The emitter can now be removed away from the heater leaving it ready to have the new emitter fitted as shown in Fig. V. 10. Refit the new emitter in reverse order making sure that no wires can get trapped. Replace both ends side reflectors and their screws.
- Page 12 C h a i n H a n g i n g C o n f i g u r a t i o n s - A t a G l a n c e 1 x Alpha H1 Unit 2 x Alpha H1 Units 3 x Alpha H1 Units INFORESIGHT...
