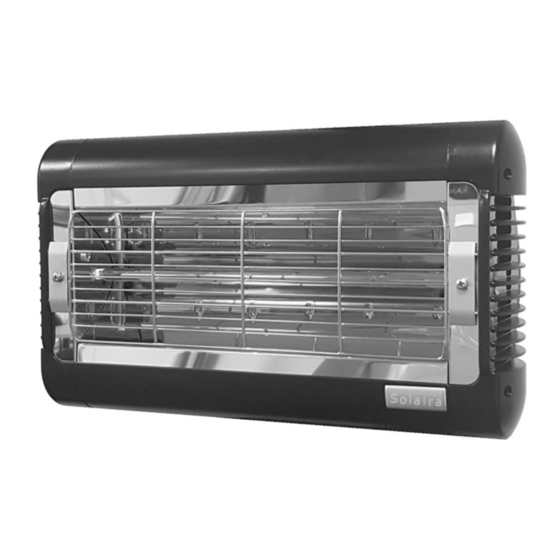

Solaira Alpha H1 Reference Manual

1 x lamp emitter heater, canada & usa models, weatherproof infrared heaters suitable for outdoor and indoor use - commercial and industrial, residential 240v outdoor use only in non-hazardous areas, 240v-1125w/1500w / 277v-1500w/2000w, candel low light

Hide thumbs Also See for Alpha H1:

Reference manual (12 pages)

page of 18

/ 18
Bookmarks

Quick Links

Download this manual

Solaira Alpha

SALPHA15277C

SALPHA15277L1C

SALPHA20277C

SALPHA20277L1C

WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE

- COMMERCIAL AND INDUSTRIAL, (RESIDENTIAL 240V OUTDOOR USE ONLY)

125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3

Email: info@solairaheaters.com - Website: www.solairaheaters.com

I M P O R TA N T - S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E

Reference Manual

H1 277V

(1 × Lamp Emitter Heater)

CANADA & USA MODELS:

(240V - 1125W /

(240V - 1500W /

= COLOR CODE

IN NON-HAZARDOUS AREAS

INFORESIGHT CONSUMER PRODUCTS INC.

Tel: 905-568-7655 - Fax: 905-568-7521

Ref No. 043482-EN-S Iss. Oa

277V - 1500W)

277V - 1500W) CANDEL LOW LIGHT

277V - 2000W)

277V - 2000W) CANDEL LOW LIGHT

247748

Need help?

Do you have a question about the Alpha H1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solaira Alpha H1

Page 1 Reference Manual Solaira Alpha H1 277V (1 × Lamp Emitter Heater) CANADA & USA MODELS: SALPHA15277C (240V - 1125W / 277V - 1500W) SALPHA15277L1C (240V - 1125W / 277V - 1500W) CANDEL LOW LIGHT SALPHA20277C (240V - 1500W / 277V - 2000W)
Page 2 I M P O R TA N T I N S T R U C T I O N S When using electrical INFRARED HEATERS, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1.
Page 3 I M P O R TA N T I N S T R U C T I O N S 8. Do not insert or allow foreign objects to enter any opening as this may cause an electric shock or fire, or damage the heater. 9.
Page 4 It is mounted on an adjustable bracket that allows the heat to be directed exactly where it is required. The Alpha H1 can also be used in a modular system in that more than one heater can be connected together - see ‘Configurations’ later in the manual.
Page 5 of 18 Ref No. 043482-EN-S Iss. Oa...
Page 6 C O N F I G U R AT I O N S The Alpha H1 heater contains one lamp emitter. It can be installed as a single unit or joined to one or two other individual units with joining bars that are available to connect the heaters together and increase the size and output of the installation.
Page 7 When ceiling hanging the Alpha H1 heater, ensure the • Fig. B minimum distance from the ceiling is adhered to as shown in Fig. B. Always allow the heater to cool before attempting to • reposition/move. Never attempt to move the heater while...
Page 8 Fig. E CLEARANCE supply when mounting or adjusting the heater position. When wall mounting two Alpha H1 heaters  joined together in a horizontal manner, do not position the heater at an angle more than 50° and less than 30° as shown in Fig. E.
Page 9 C AU T I O N Always isolate the heater from the mains supply when mounting or adjusting the heater position. When two Alpha H1 heaters are joined they can also  be chain hung from a ceiling (Fig. H).
Page 10 Observe the minimum safe distance between the heater body and inflammable surfaces  and objects when mounting. Keep out of the reach of children.  Please refer to the specification tables for recommended positioning of the heater. When hanging from a ceiling two chains of equal length and gauge are required and should be selected with fixings that are adequate to hold the weight of the heater.
Page 11 C AU T I O N Always isolate the heater from the mains supply when mounting or adjusting the heater position. When wall mounting three Alpha H1 heaters  joined together in a vertically stacked manner, position the assembly downward as shown in Fig.
Page 12 C AU T I O N Always isolate the heater from the mains supply when mounting or adjusting the heater position. When three Alpha H1 heaters are joined they should only be hung from a ceiling on chains  - do not wall mount! Always allow the heater to cool before attempting to reposition/move.
Page 13 C I R C U I T D I A G R A M Fig. L Represents cables Pre-wired to heater (colours as shown) 240V / 277V ~ 60Hz M AI N T E N A N C E ( 2 7 7 V C I R C U I T ) NOTE: For replacement lamp emitters or spare parts please contact your local distributor quoting model type and rating from rating label.
Page 14 of 18 Ref No. 043482-EN-S Iss. Oa...
Page 15 R E P L A C I N G A 2 7 7 V L AM P E M I T T E R C AU T I O N Always isolate the mains power from the heater or heater assembly before any attempts are made to replace the lamp emitter.
Page 16 6. At the front of the heater, remove the grille bridging clamps as shown in Fig. T from both sides of the grille by undoing the centre screws and gently remove the grille by pulling it out from the centre and prizing the prongs away from their locating holes at one end (Fig. U) and pull out of opposite end.
Page 17 Fig. X 10. Refit the new lamp emitter in reverse order making sure that no wires can get trapped. Replace the side reflectors and their screws before any other parts are fitted to make sure the lamp emitter is held securely. 11.
Page 18 Solaira Alpha H1 277V CANADA & USA MODELS: SALPHA15277C (240V - 1125W / 277V - 1500W) SALPHA15277L1C (240V - 1125W / 277V - 1500W) CANDEL LOW LIGHT SALPHA20277C (240V - 1500W / 277V - 2000W) SALPHA20277L1C (240V - 1500W /...
