Reference Manual

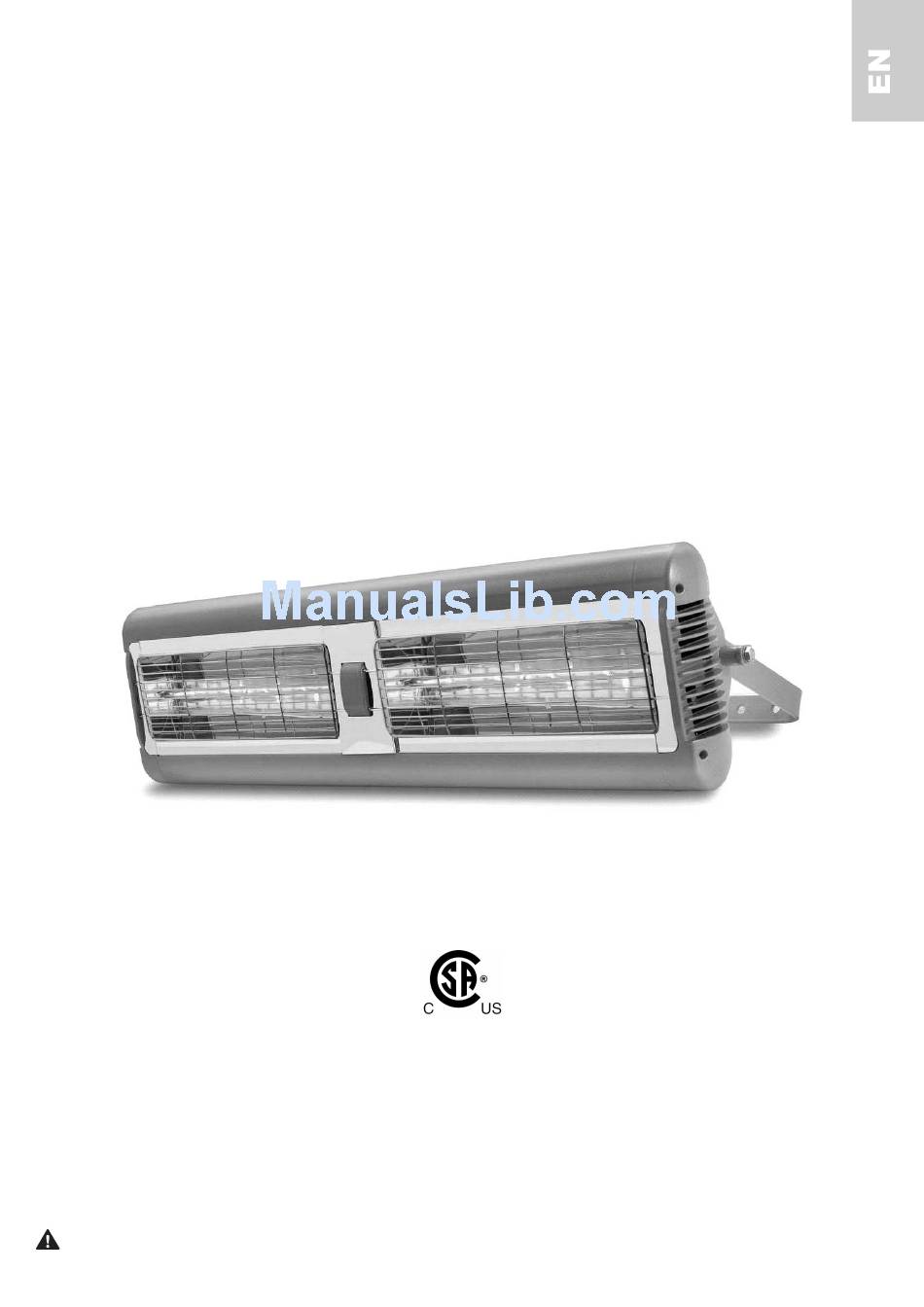

Solaira

Alpha H2

(Double Emitter)

CANADA & USA MODELS:

SALPHAH2-20240 (208 / 240V - 1500 / 2000W)

SALPHAH2-30240 (208 / 240V - 2250 / 3000W)

SALPHAH2-40240 (208 / 240V - 3000 / 4000W)

WEATHERPROOF INFRARED HEATERS

SUITABLE FOR OUTDOOR AND INDOOR USE -

RESIDENTIAL, COMMERCIAL AND INDUSTRIAL

247748

INFORESIGHT CONSUMER PRODUCTS INC.

125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3

Tel: 905-568-7655 - Fax: 905-568-7521

Email: info@solairaheaters.com - Website: www.solairaheaters.com

I M P O R TA N T - S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E

Need help?

Do you have a question about the Alpha H2SALPHAH2-20240 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solaira Alpha H2SALPHAH2-20240

Page 1 Reference Manual Solaira Alpha H2 (Double Emitter) CANADA & USA MODELS: SALPHAH2-20240 (208 / 240V - 1500 / 2000W) SALPHAH2-30240 (208 / 240V - 2250 / 3000W) SALPHAH2-40240 (208 / 240V - 3000 / 4000W) WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE -...
Page 2 I M P O R TA N T I N S T R U C T I O N S I M P O R TA N T I N S T R U C T I O N S I M P O R TA N T I N S T R U C T I O N S I M P O R TA N T I N S T R U C T I O N S When using electrical INFRARED HEATERS, basic precautions...
Page 3 I M P O R TA N T I N S T R U C T I O N S I M P O R TA N T I N S T R U C T I O N S I M P O R TA N T I N S T R U C T I O N S I M P O R TA N T I N S T R U C T I O N S 8.
Page 4 I N T R O D U C T I O N The Alpha H2 heater produces radiant heat like the sun, warming people and objects rather than the air in between. It is mounted on an adjustable bracket that allows the heat to be directed exactly where it is required.
Page 5 S P E C I F I C AT I O N T a b l e 1 . C a n a d a a n d U S A H e a t e r s No. of Units × 1 ×...
Page 6 C O N F I G U R AT I O N S The Alpha H2 heater is a double emitter - it contains two emitters. It can be installed as a single unit or joined to one or two more single units. Joining bars are available that connect the heaters together to increase the size and output of the installation.
Page 7 Always allow the heater to cool before attempting to • reposition/move. Never attempt to move the heater while it is switched on! Observe the minimum safe distance between the heater • Fig. B body and inflammable surfaces and objects when mounting. Please refer to Table 1 for the recommended positioning of •...
Page 8 A S S E M B L I N G - 2 × D O U B L E ( T W O E M I T T E R S ) H E AT E R S J O I N E D Take the first heater and place it face down on a flat surface.
Page 9 Fix the heater assembly to the chains via the hole in the centre of the joining bar as shown in Fig. E and ensure the heaters face directly down when hanging. Secure the supply cable so it is not resting on the body or obstructing the air-vents. Always isolate the heater from the mains supply when adjusting the position.
Page 10 C H A I N H A N G I N G - 3 × D O U B L E ( T W O E M I T T E R S ) H E AT E R S J O I N E D C AU T I O N C AU T I O N C AU T I O N...
Page 11 M AI N T E N A N C E NOTE: For replacement emitters or spare parts please contact your local distributor quoting model type and rating from rating label. It is very important that your replacement emitter is exactly the same as the one it was supplied with. Failure to fit the exact same type can cause the heater to prematurely fail.
Page 12 4. At the back of the heater, remove the plate holding the terminal box by removing the two fixing screws as shown in Fig. J. FIXING SCREWS Fig. J Fig. K 5. Pull the emitter wires one at a time through the plate to remove as shown in Fig. K. 6.
Page 13 8. Release the emitter end by pressing the top edge of the spring clip away from the emitters ceramic end-cap. Gently lift the end of the emitter upwards so it is no longer being retained by the clip (see Fig. O). The wire can then be gently pulled from behind the reflector. 9.
Page 14 WA L L M O U N T E D C O N F I G U R AT I O N - AT A G L A N C E 1 x Alpha H2 Unit...
Page 15 C H A I N H A N G I N G C O N F I G U R AT I O N S - AT A G L A N C E 1 x Alpha H2 Unit 2 x Alpha H2 Units 3 x Alpha H2 Units...
Page 16 I M POR TANT - SAV E T H ES E I N STR UCT ION S FOR FU TU RE R EF E RE NC E INFORESIGHT CONSUMER PRODUCTS INC. 125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3 Tel: 905-568-7655 - Fax: 905-568-7521 Email: info@solairaheaters.com - Website: www.solairaheaters.com 247748...
