SCOSYXLAW15120
SCOSYXLAW15240
SCOSYXLAW20240
SUITABLE FOR OUTDOOR AND INDOOR USE -
RESIDENTIAL, COMMERCIAL AND INDUSTRIAL
INFORESIGHT CONSUMER PRODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3
Email: info@solairaheaters.com - Website: www.solairaheaters.com
I M P O R TA N T - S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E

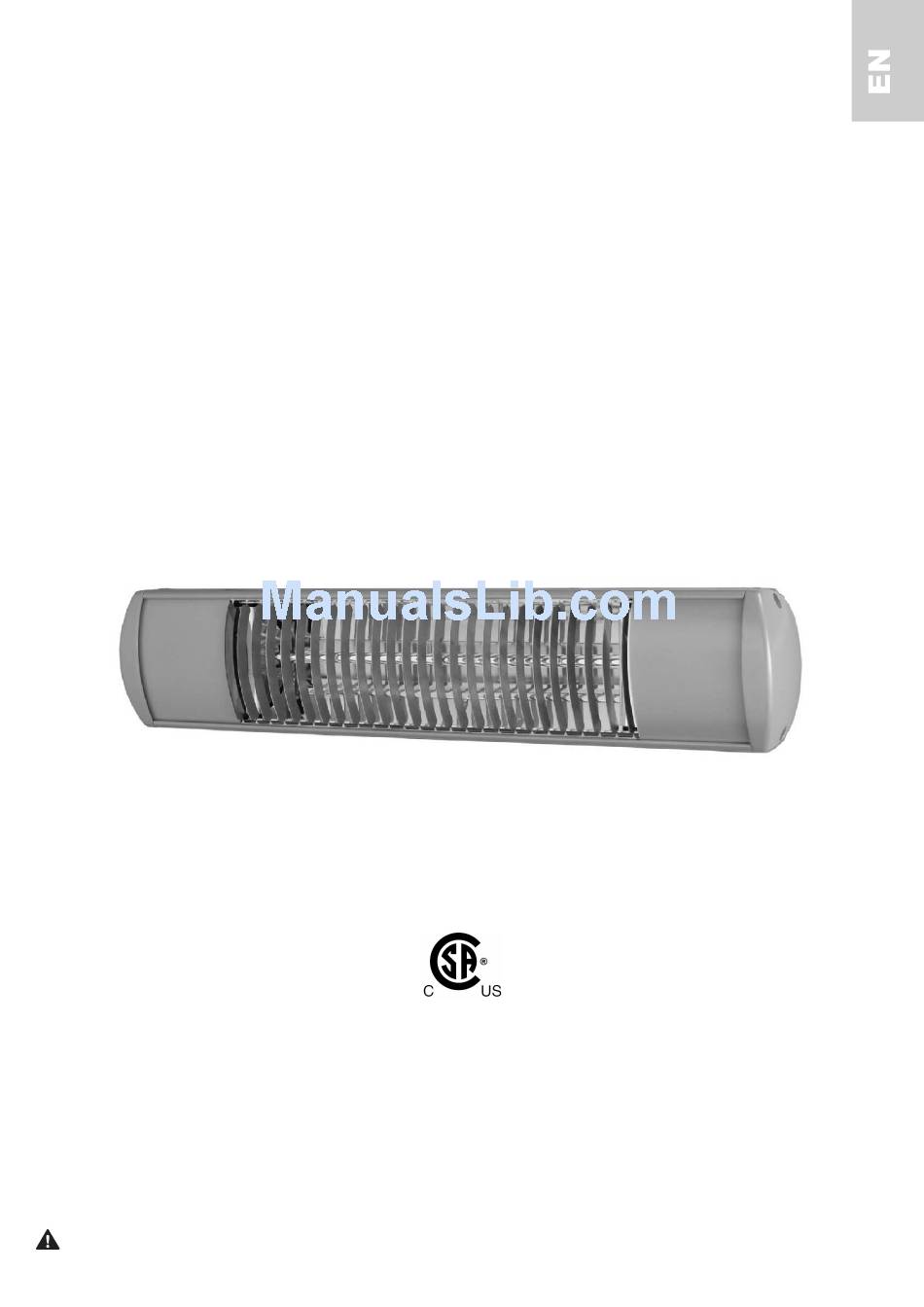

Reference Manual
Solaira
Cosy XL
CANADA & USA HEATER MODELS:
WEATHERPROOF INFRARED HEATERS
Tel: 905-568-7655 - Fax: 905-568-7521
(120V - 1500W)
(208 / 240V - 1125 / 1500W)
(208 / 240V - 1500 / 2000W)
247748
Advertisement
Related Manuals for Solaira SCOSYXLAW15120
Summary of Contents for Solaira SCOSYXLAW15120
- Page 1 Reference Manual Solaira Cosy XL CANADA & USA HEATER MODELS: SCOSYXLAW15120 (120V - 1500W) SCOSYXLAW15240 (208 / 240V - 1125 / 1500W) SCOSYXLAW20240 (208 / 240V - 1500 / 2000W) WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE -...
- Page 2 I M P O R TA N T I N S T RU C T I O N S I M P O R TA N T I N S T RU C T I O N S I M P O R TA N T I N S T RU C T I O N S I M P O R TA N T I N S T RU C T I O N S When using electrical short-wave INFRARED HEATERS, basic precautions should always be followed to reduce the risk of fire,...
- Page 3 I M P O R TA N T I N S T RU C T I O N S I M P O R TA N T I N S T RU C T I O N S I M P O R TA N T I N S T RU C T I O N S I M P O R TA N T I N S T RU C T I O N S 9.
- Page 4 I N T R O D U C T I O N The Solaira Cosy XL heater produces radiant heat like the sun, warming people and objects rather than the air in between. It is mounted on an adjustable bracket that allows the heat to be directed exactly where it is required.
- Page 5 W A R N I N G : R I S K O F F I R E W A R N I N G : R I S K O F F I R E W A R N I N G : R I S K O F F I R E W A R N I N G : R I S K O F F I R E Keep combustible material such as furniture, papers, clothes and curtains at least 6 feet (1.8m) from the front of the heater and away...
- Page 6 M O U N T I N G Fig. A C AU T I O N C AU T I O N C AU T I O N C AU T I O N Switch off/unplug the heater from the mains supply when mounting or adjusting the heater position.
- Page 7 M A I N T E N A N C E NOTE: For replacement emitters or spare parts (see diagram on back page) please contact your local distributor quoting model type and rating from rating label. It is very important that your replacement emitter is exactly the same as the one it was supplied with.
- Page 8 R E P L A C I N G T H E E M I T T E R C A U T I O N C A U T I O N C A U T I O N C A U T I O N Unplug/switch off from the mains power before any attempts are made to replace the emitter.
- Page 9 7. Remove the two screws as highlighted on in Fig. J to take out the side reflector bracket and reflector assembly that allows access the emitter holding clip. Repeat at opposite end of emitter. Fig. J 8. Where the emitter wires are fed through the gasket into the terminal box (Fig. J), gently pull the emitter wires through the body of the heater so the wires exit the terminal box.
- Page 10 C O S Y X L - C O M P O N E N T PA R T D I A G R A M EMITTER/LAMP SAFETY GUARD SIDE COVER SIDE REFLECTOR SIDE REFLECTOR BRACKET SIDE SIDE REFLECTOR BRACKET REFLECTOR END CASING REFLECTOR...
