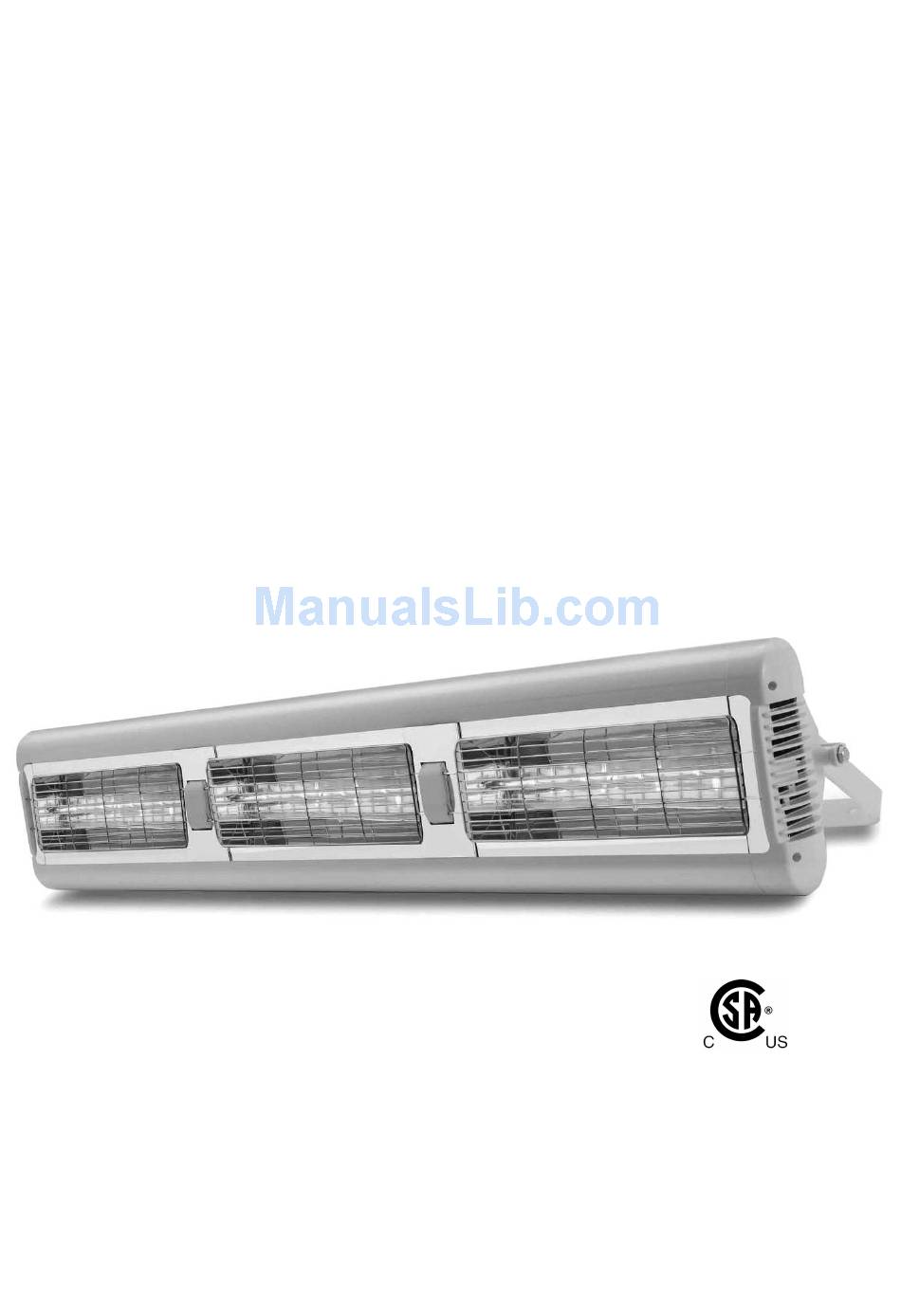

Reference Manual
Solaira
Alpha H3
(Triple Emitter)
CANADA & USA MODELS:
SALPHAH3-30240 (208/240V)
SALPHAH3-45240 (208/240V)
SALPHAH3-60240 (208/240V)
WEATHERPROOF INFRARED HEATERS
SUITABLE FOR OUTDOOR AND INDOOR USE -
RESIDENTIAL, COMMERCIAL AND INDUSTRIAL
INFORESIGHT
CONSUMER PRODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3
Tel: 905-568-7655 Fax: 905-568-7521
Email: info@solairaheaters.com Website: www.solairaheaters.com
Advertisement
Related Manuals for Solaira SALPHAH3-30240
Summary of Contents for Solaira SALPHAH3-30240
- Page 1 Reference Manual Solaira Alpha H3 (Triple Emitter) CANADA & USA MODELS: SALPHAH3-30240 (208/240V) SALPHAH3-45240 (208/240V) SALPHAH3-60240 (208/240V) WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE - RESIDENTIAL, COMMERCIAL AND INDUSTRIAL INFORESIGHT CONSUMER PRODUCTS INC. 125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3 Tel: 905-568-7655 Fax: 905-568-7521 Email: info@solairaheaters.com Website: www.solairaheaters.com...
- Page 2 2250/3000 3.6/4.2 10.8/12.5 8' 2¼" / 9’ 10” 1' 7½" 3’ 3½” 47½" x 9" x 12¾” 17.6 1 x SALPHAH3-30240 1 x SALPHAH3-45240 208/240 3 x 1125/1500 3375/4500 5.4/6.3 16.218.8 10' 8” / 11’ 5½” 1' 7½" 3’ 3½”...
- Page 3 I M P O R T A N T I N S T R U C T I O N S When using electrical INFRARED HEATERS, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before using this heater.
- Page 4 C o n f i g u r a t i o n s The Alpha H3 heater is a triple emitter - it contains three emitters. It can be installed as a single unit or joined to another single unit.
- Page 5 Fig. C DRILLING HOLE TEMPLATE DIMENSIONS FOR WALL MOUNTED BRACKETS Fig. D A s s e m b l i n g - 2 x T r i p l e ( t h r e e e m i t t e r s ) H e a t e r s J o i n e d Take the first heater and place it face down on a flat surface.
-
Page 6: Connector Block
M a i n t e n a n c e For replacement emitters or spare parts (see diagram on back page) please contact your local distributor quoting model type and rating from rating label. It is very important that your replacement emitter is exactly the same as the one it was supplied with. - Page 7 6. At the front of the heater, gently remove the wire guards by prizing them away from their locating holes at one end of the heater case (Fig. S) and pull out of opposite end. Fig. S 7. Remove the screws from the central reflector/cover on both sides (Fig. T) and the single screw from the side reflector (Fig. U).
- Page 8 Fig. X 9. The emitter can now be removed away from the heater leaving it ready to for the new emitter to be fitted as shown in Fig. X. 10. Refit the new emitter in reverse order making sure that no wires can get trapped. Replace the side reflectors/covers and their screws before any other parts are fitted to make sure the emitter is held safely.
