English–5

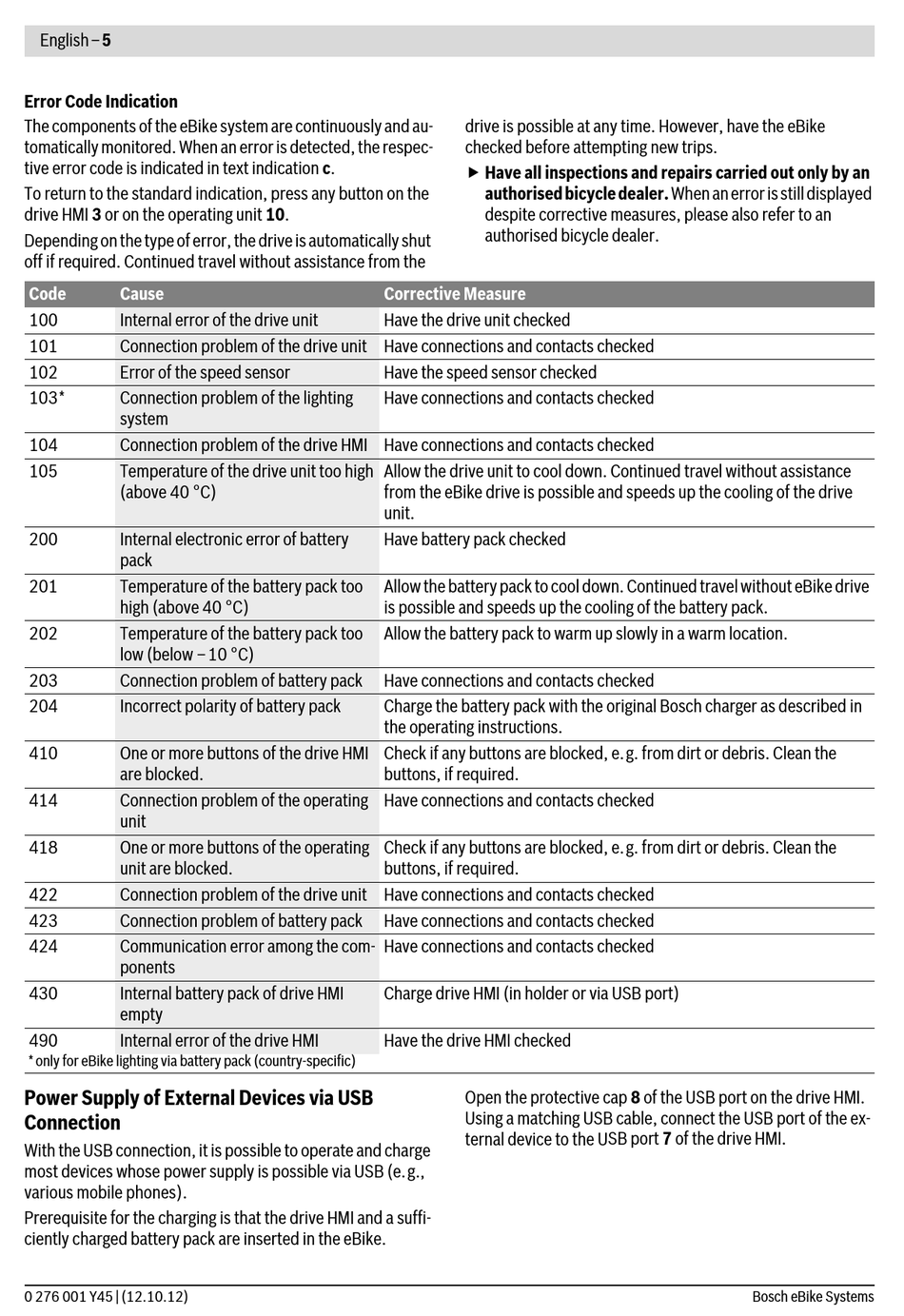

Error Code Indication
The components of the eBike system are continuously and au-
tomatically monitored. When an error is detected, the respec-
tive error code is indicated in text indication c.
To return to the standard indication, press any button on the
drive HMI 3 or on the operating unit 10.
Depending on the type of error, the drive is automatically shut
off if required. Continued travel without assistance from the
Code Cause
100 Internal error of the drive unit
101 Connection problem of the drive unit Have connections and contacts checked
102 Error of the speed sensor
103* Connection problem of the lighting
system
104 Connection problem of the drive HMI Have connections and contacts checked
105 Temperature of the drive unit too high
(above 40 °C)
200 Internal electronic error of battery
pack
201 Temperature of the battery pack too
high (above 40 °C)
202 Temperature of the battery pack too
low (below –10 °C)
203 Connection problem of battery pack
204 Incorrect polarity of battery pack
410 One or more buttons of the drive HMI
are blocked.
414 Connection problem of the operating
unit
418 One or more buttons of the operating
unit are blocked.
422 Connection problem of the drive unit Have connections and contacts checked
423 Connection problem of battery pack
424 Communication error among the com-
ponents
430 Internal battery pack of drive HMI
empty
490 Internal error of the drive HMI
* only for eBike lighting via battery pack (country-specific)
Power Supply of External Devices via USB
Connection
With the USB connection, it is possible to operate and charge
most devices whose power supply is possible via USB (e.g.,
various mobile phones).
Prerequisite for the charging is that the drive HMI and a suffi-
ciently charged battery pack are inserted in the eBike.
0 276 001 Y45 | (12.10.12)
drive is possible at any time. However, have the eBike
checked before attempting new trips.
 Have all inspections and repairs carried out only by an
authorised bicycle dealer. When an error is still displayed
despite corrective measures, please also refer to an
authorised bicycle dealer.
Corrective Measure
Have the drive unit checked
Have the speed sensor checked
Have connections and contacts checked
Allow the drive unit to cool down. Continued travel without assistance
from the eBike drive is possible and speeds up the cooling of the drive
unit.
Have battery pack checked
Allow the battery pack to cool down. Continued travel without eBike drive
is possible and speeds up the cooling of the battery pack.
Allow the battery pack to warm up slowly in a warm location.
Have connections and contacts checked
Charge the battery pack with the original Bosch charger as described in
the operating instructions.
Check if any buttons are blocked, e.g. from dirt or debris. Clean the
buttons, if required.
Have connections and contacts checked
Check if any buttons are blocked, e.g. from dirt or debris. Clean the
buttons, if required.
Have connections and contacts checked
Have connections and contacts checked
Charge drive HMI (in holder or via USB port)
Have the drive HMI checked
Open the protective cap 8 of the USB port on the drive HMI.
Using a matching USB cable, connect the USB port of the ex-
ternal device to the USB port 7 of the drive HMI.
