› Damaged batteries may not be charged, and
further use is not permitted.
› The battery may heat up during charging. A maxi-
mum temperature of 45°C may be reached. If the
battery becomes any warmer than this, suspend
the charging process immediately.
4.4

Fitting the battery

1. Insert the battery into the battery holder of the Pe-
delec from the left by tilting it outwards at roughly
45°. In doing so, make sure that the lateral guides at
the bottom of the battery are also inserted into the
guides in the holder.
Reinstalling the battery
2. Tilt the battery towards the bike until it engages in the
locking mechanism. If the key is still in the lock, turn it
clockwise then pull it out to lock the battery in place.
3. Make sure the battery is firmly in place.

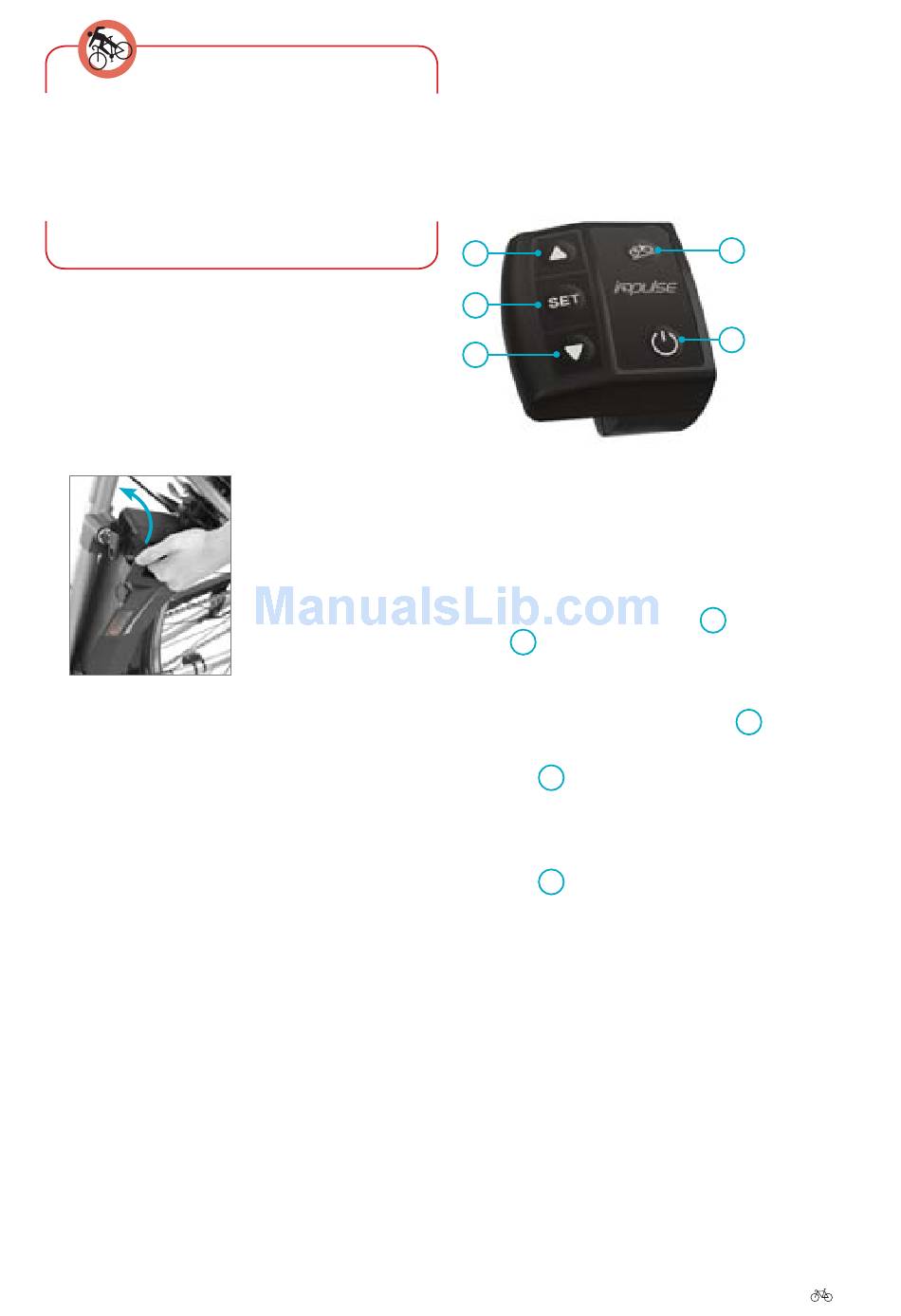

5 Control panel and display

5.1

Basic functions

Control panel
1
2
3
1 Upper arrow button
(more powerful assistance)
2 Set button
3 Lower arrow button
(less powerful assistance)
4 Pushing assistance
5 Power button
• On the left, you will find the
lower arrow buttons. The buttons have differ-
3
ent functions depending on the item of the settings
menu at which you are located.
• Between the arrow buttons is the
can be used to request a variety of displays.
4
• The pushing assistance is located at the top
on the right. This moves the Pedelec slowly (at a
maximum speed of 6 km/h) without you having to
turn the pedals.
• The power button is located at the bottom on
5
the right. This can be used to turn the system on
and off again.
VI User Manual | Impulse Ergo Pedelec
4
5
upper and
1
Set button. It
2
