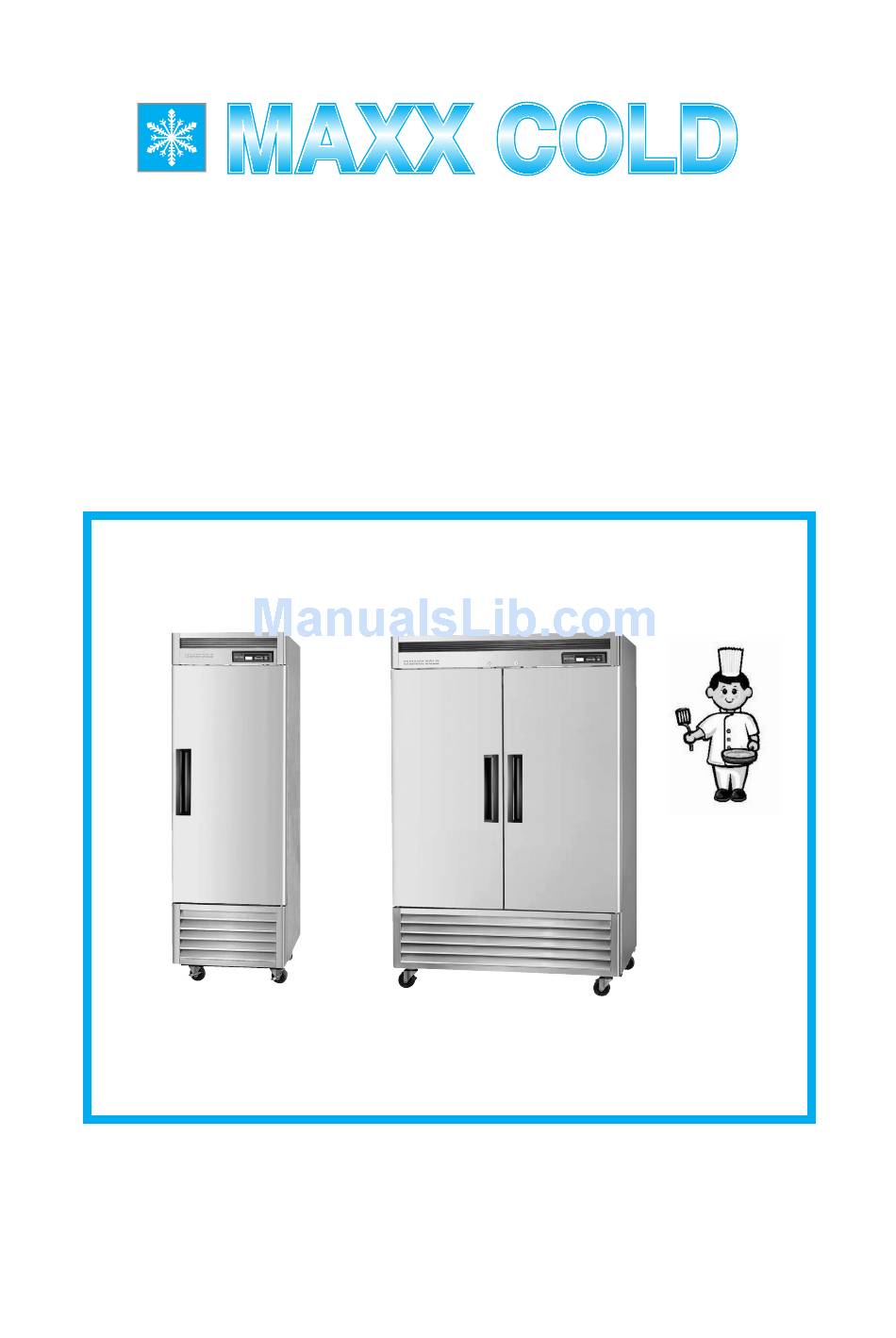

- Page 1 Installation and Operation Guide MCF-49FD, MCF-23FD MCR-49FD, MCR-23FD...
-
Page 2: Table Of Contents
Solid Door Freezers MODEL COMP. H.P REFRIGERANT AMPERAGE POUNDS MCF-23FD R-134a 440W MCF-49FD R-404A 1340W SERIAL NUMBER The serial number is located on the rating label which is on the left interior wall. Please retain the unit's serial number for service purposes. -
Page 3: Installation
INSTALLATION 1. GOOD AIR CIRCULATION - Be sure to avoid any object which will restrict exhausted air flow. - Be sure that there is ample space so that air can flow through the rear of the unit. - The back of the unit should be located no less than 5 inches from the wall. 2. -
Page 4: Cleaning
CLEANING 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface. 2. CLEANING THE CONDENSER FINS - To maintain proper refrigeration performance, the Condenser coil must be free of dust, dirt, and grease. -
Page 5: Basic Operation
BASIC OPERATION MCR-23FD REFRIGERATOR MCR-49FD 1. Plug in and turn on the power switch located on the bottom of the top grill. The Display panel will be lighted. The compressor will begin to run. 2. The default temperature setting is 35 (+1 ) 3. -
Page 6: Display Panel
DISPLAY PANEL DOOR OPENING INSIDE TEMP. TEMP. CONTROL BUTTON 1. UP / DOWN BUTTON (Temperature control button) - By pushing the up/down button, you can set the inside temperature. 2. DOOR OPENING INDICATOR - If door is opened, door opening indicator will be turned on. - If the door is left open for 5 minutes an alarm will sound continuously. -
Page 7: Freezer
BASIC OPERATION MCF-23FD FREEZER MCF-49FD 1. Plug in and turn on the power switch located on the bottom of the top grill. The Display panel will be lighted. The compressor will begin to run. 2. The default temperature setting is -2 (-18 ) 3. - Page 8 DISPLAY PANEL DOOR OPENING INSIDE TEMP. TEMP. CONTROL BUTTON 1. UP / DOWN BUTTON (Temperature control button) - By pushing the up/down button, you can set the inside temperature. 2. DEFROST - The electronic defrost controller is set at the factory to provide a defrost cycle every 6 hours.
-
Page 9: Reversible Door Assembling Method
REVERSIBLE-DOOR ASSEMBLY METHOD MODEL : MCF-23FD / MCR-23FD 1. REMOVAL OF TOP GRILL and GRILL ASSEMBLY 1) Remove the TOP GRILL by removing securing screws. Upper or downward located in the PICTURE (A) TOP GRILL 2) Remove GRILL by removing securing screws. connected Left and right side located GRILL... - Page 10 3. Installation method of REVERSIBLE DOOR 1) After reversing 180 degree DOOR ASSEMBLY , locate the HANDLE in the desired side. M5*27 SCREW DOOR-HINGE 2) Assemble in the following LOWER order. DOOR-HINGE DOOR-HINGE SHAFT-LOWER BUSHING DOOR ASSEMBLY DOOR-HINGE BUSHING DOOR-HINGE SHAFT-UPPER DOOR-HINGE STOP PIN M5*27 SCREW...
-
Page 11: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOMS CAUSES SOLUTIONS Refrigerator/Freezer is The Temp. is set too low (high) Push the button to a warmer to maintain food freshness. (colder) position. freezing (thawing) food. Check the power cord to The unit does not There is a power make sure the unit is plugged connection failure problem. - Page 12 MEMO...
- Page 13 MEMO...
- Page 14 MEMO...
