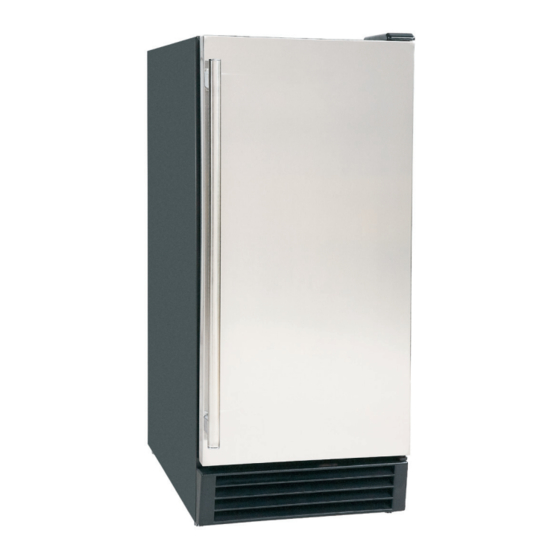

Maxx Cold MCR3U-O Instruction Manual

Indoor/outdoor refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MCR3U / MCR3U-O
INSTRUCTION MANUAL
Indoor/Outdoor Refrigerator

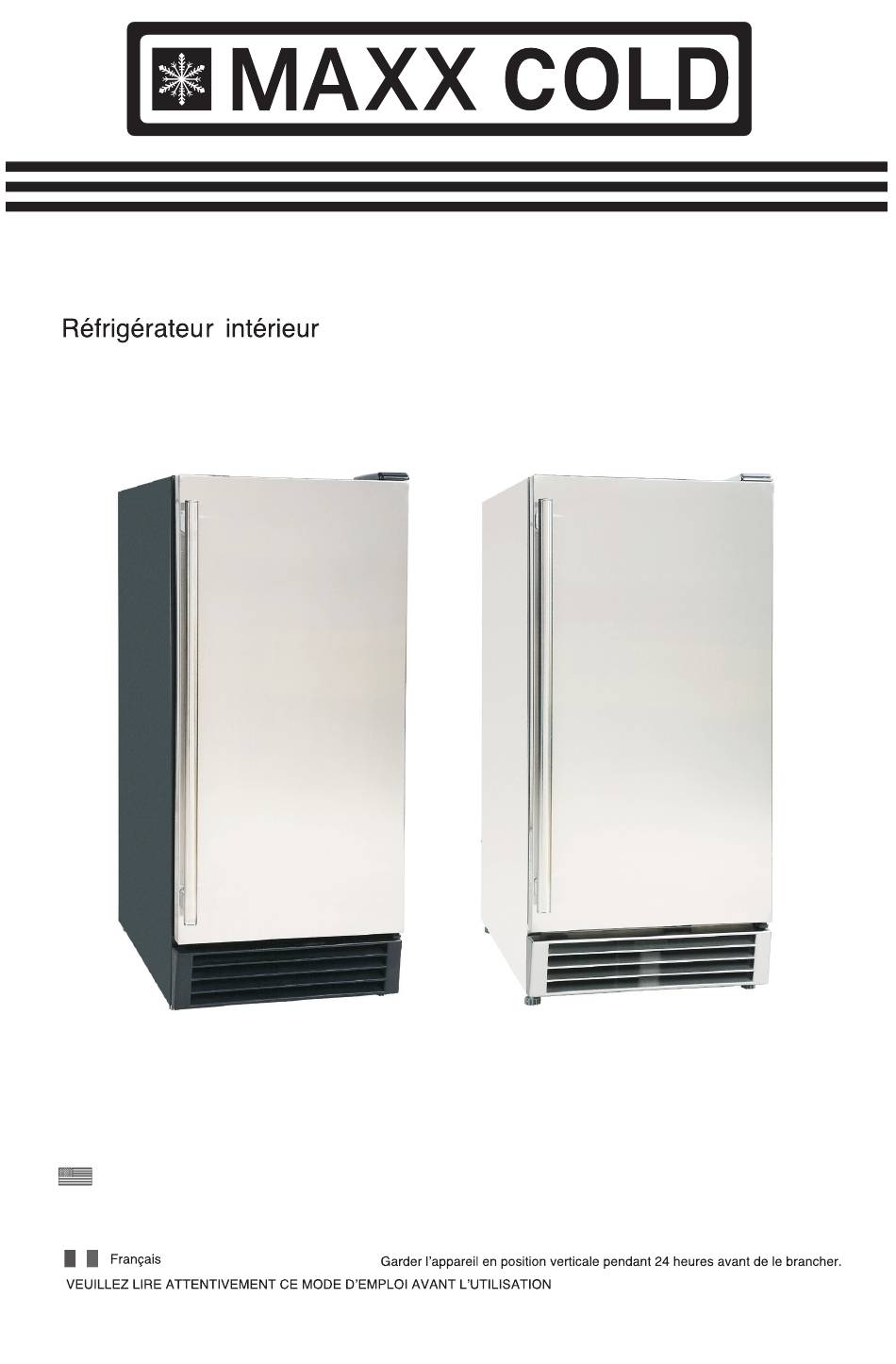

MODE D'EMPLOI
/ extérieur
MCR3U INDOOR
MCR3U-O OUTDOOR
English
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE
Be sure unit is standing upright 24 hours prior to plug-in.
031615

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCR3U-O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxx Cold MCR3U-O

Summary of Contents for Maxx Cold MCR3U-O

  • Page 1 MCR3U / MCR3U-O INSTRUCTION MANUAL Indoor/Outdoor Refrigerator MODE D’EMPLOI / extérieur MCR3U INDOOR MCR3U-O OUTDOOR English PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE Be sure unit is standing upright 24 hours prior to plug-in. 031615...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Read all instructions before using this appliance. Use this appliance only for its in- tended purpose as described in this instruction manual. Always exercise basic safety precautions, as described below. After reading the instruction manual, store it in an accessible place where the user(s) of this product can easily find it.
  • Page 3 IMPORTANT SAFEGUARDS 1. All repairs, disassembly and modifications should be performed only by qualified technicians. Attempting to perform these yourself could result in fire, malfunction or in- jury. 2. Never splash water directly onto the product or wash it with water without unplug- ging, as a short circuit could result.
  • Page 4 1. This unit must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the Installation section. 2. This model can either be built-in or free-standing. Built-in units vent at the bottom front and airflow at the front of this vent must be unimpeded. 3.

  • Page 5: Technical Specifications

    TECHNICAL SPECIFICATIONS Model Number: MCR3U Description: Indoor / Outdoor Refrigerator Electrical Input: 115VAC ~ 60Hz Current Rating: 2.0A Unit Dimensions: 14⅝”W x 24 ”D x 33½”H 371.475 mm W x 619.125 mm D x 850.9 mm H Unit Weight: 69 lbs/31.29kg Ambient Temperature Range: 25ºF - 100ºF /-4ºC - 38ºC 35ºF - 50ºF / 2ºC - 10ºC...

  • Page 6: Installation

    INSTALLATION Remove the exterior and interior packaging. Use a soft dry cloth to wipe down the outside of the refrigerator thoroughly. Use a clean cloth dampened with lukewarm water to wipe down the inside of the refrigerator. Air must circulate freely in front of the refrigerator. Avoid placing the appliance near any source of heat or moisture, or in direct sunlight.
  • Page 7 INSTALLATION door. Set aside. 5. Using a Phillips screwdriver, remove the magnet baffle and door switch baffle, then place them on the opposite side at the top of the door. 6. Push the four plug buttons into the spare screw holes. To replace door on hinges: 1.

  • Page 8: Operating Your Refrigerator

    OPERATING YOUR REFRIGERATOR IMPORTANT: Do not plug in the refrigerator for 24 hours after unit is set in place. Failure to do so may result in the unit working improperly. This refrigerator has a rotary temperature control knob (thermostat) inside the unit which is marked with the settings OFF-COLD-COLDEST in order of increasing coldness.
  • Page 9 OPERATING YOUR REFRIGERATOR Please note: Cold air falls and warmer air rises, and there will be a small temperature variation from the bottom of the unit to the top. The temperature at the bottom of the unit will always be slightly colder. Operating the Internal Light This appliance has an internal light to make it easier for you to see the foods you have stored.

  • Page 10: Cleaning And Maintenance

    CLEANING & MAINTENANCE Cleaning the Outside Unplug your refrigerator. Clean the outside with a cloth dampened in warm soapy water. Dry thoroughly with a soft cloth. To clean the door gasket, use only warm soapy water. Never use harsh cleansers or scouring pads to clean any part of your unit.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Unit does not turn on Not plugged in. Fuse blown or circuit breaker tripped. Noise or vibration Check that unit is level. If not, adjust leveling legs. Unit is too warm Check that door is properly closed and sealed. Check temperature setting.
  • Page 12 11 11...
  • Page 16 extérieur...
  • Page 24 www.maxxcold.com 3355 Enterprise Ave, Suite #160, Fort Lauderdale, FL 33331 Phone:(954) 202-7419 · Fax:(954) 202-7337...
