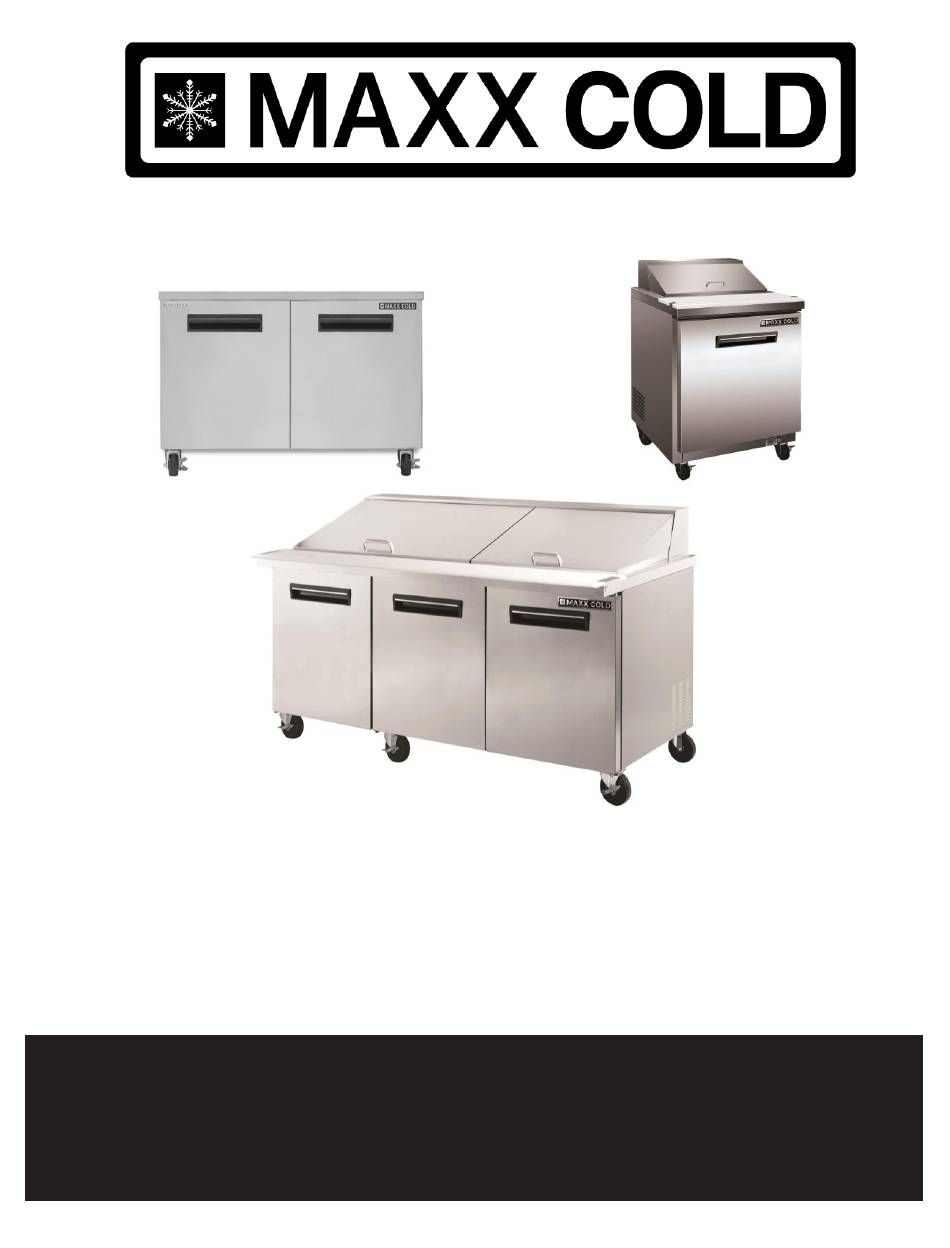

SERVICE, INSTALLATION AND
OPERATION
MANUAL
WARRANTY AND TECHNICAL SERVICE
Warranty and Service Parts
Toll free: 1-888-464-9277 / www.maxximumfoodservice.com
8:30am to 5:30pm E.S.T. Monday through Friday
Distributed by The Legacy Companies. 3355 Enterprise Avenue, Suite 160, Weston, FL 33331
Phone: (954) 202-7419 • Website: TheLegacyCompanies.com • Email: Sales@TheLegacyCompanies.com
MCR27U / MCR48U / MCR60U / MCR72U UNDERCOUNTER REFRIGERATORS
MCF27U / MCF48U / MCF60U / MCF72U UNDERCOUNTER FREEZERS
MCR27S / MCR48S MCR60S / MCR72S SANDWICH STATIONS
MCR27M / MCR48M / MCR60M / MCR72M MEGATOPS
PLEASE READ CAREFULLY
3/30/2018
Advertisement
Table of Contents
Related Manuals for Maxx Cold MCF27U
Summary of Contents for Maxx Cold MCF27U
- Page 1 Phone: (954) 202-7419 • Website: TheLegacyCompanies.com • Email: Sales@TheLegacyCompanies.com MCR27U / MCR48U / MCR60U / MCR72U UNDERCOUNTER REFRIGERATORS MCF27U / MCF48U / MCF60U / MCF72U UNDERCOUNTER FREEZERS MCR27S / MCR48S MCR60S / MCR72S SANDWICH STATIONS MCR27M / MCR48M / MCR60M / MCR72M MEGATOPS...
-
Page 2: Table Of Contents
TABLE of CONTENTS SERIAL NUMBER INFORMATION ............................. 3 APPLIANCE SAFETY ................................... 4 IMPORTANT SAFEGUARDS ............................... 5 SPECIFICATIONS – UNDERCOUNTER FREEZERS & REFRIGERATORS ................7 SPECIFICATIONS – SANDWICH STATIONS ..........................8 SPECIFICATIONS – MEGATOPS ..............................9 RECEIVING AND INSPECTING THE EQUIPMENT ....................... 10 INTRODUCTION .................................. -
Page 3: Serial Number Information
Fill out and return the enclosed warranty postcard or visit our website/warranty registration. Keep the dated proof of purchase invoice which establishes the appliance's warranty period. SERIAL #:______________________________________________________________________________________________ MODEL #:________________________________________ DATE OF PURCHASE:_______________________________ SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators is located inside the unit on the left hand side near the top on the wall. -
Page 4: Appliance Safety
APPLIANCE SAFETY Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. All safety messages will follow the Safety Alert Symbol and either the words “DANGER”, “WARNING”... -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Before appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. We strongly recommend that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. - Page 6 IMPORTANT SAFEGUARDS (cont.) Electrical Connection Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall outlet to minimize the possibility of electric shock hazard from the appliance.
-
Page 7: Specifications - Undercounter Freezers & Refrigerators
SPECIFICATIONS – UNDERCOUNTER FREEZERS & REFRIGERATORS MCR27U/MCF27U MCR48U/MCF48U MCR60U/MCF60U MCR72U/MCF72U Dimensions* Temperature Capacity Voltage Amps Unit Weight Refrigerant in / mm Range 27.5 x 30 x 35.875 7 Cu Ft 33°-41° F 185 lb MCR27U 120V/60Hz/1 R134a 699 x 762 x 911 198 L 1°-5°... -
Page 8: Specifications - Sandwich Stations
SPECIFICATIONS – SANDWICH STATIONS Dimensions* Temperature Capacity Voltage Amps Unit Weight Refrigerant in / mm Range 27.5 x 30 x 42.5 7 Cu Ft 33°-41° F 198 lb MCR27S 120V/60Hz/1 R134a 699 x 762 x 1080 198 L 1°-5° C 90 kg 48.5 x 30 x 42.5 13 Cu Ft... -
Page 9: Specifications - Megatops
SPECIFICATIONS – MEGATOPS Dimensions* Temperature Capacity Voltage Amps Unit Weight Refrigerant in / mm Range 27.5 x 35.3 x 44.1 7 Cu Ft 33°-41° F 223 lb MCR27M 120V/60Hz/1 R134a 699 x 897 x 1120 198 L 1°-5° C 101 kg 48.3 x 35.3 x 44.1 13 Cu Ft 33°-41°... -
Page 10: Receiving And Inspecting The Equipment
7. Retain all crating material until an inspection has been made or waived. INTRODUCTION This user’s manual is intended for installing, using and servicing your MAXX COLD Appliance. It is recommended that this manual be kept in an accessible place. Every MAXX COLD machine is designed and manufactured according to the highest standards of safety and performance. -
Page 11: Appliance Installation
APPLIANCE INSTALLATION WARNING Excessive Weight Hazard Use two or more persons to move and install appliances. Failure to do so may result in back or other injury. Remove Packaging Materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your appliance. •... -
Page 12: Installation Clearance
APPLIANCE INSTALLATION (cont.) Installation Clearance Allow for a minimum of 2 inches of clearance around the unit for optimal air flow Leveling Ensure the floor where the unit is to be located is level or shim the unit to level it. Stabilizing All models are supplied with casters for your convenience. -
Page 13: Operation
OPERATION 1. The temperature controller (thermostat) is located on the upper left of the of the back side of the cabinet interior 2. The controller has been preset to “NORMAL” position at the factory. 3. Set the control knob toward “COOL” for a higher temperature, and for a lower temperature set the knob towards “COLD”. -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE DANGER The unit must be turned off and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Failure to comply may result in death or severe personnel injury. Exterior and Interior Cleaning of Appliances Clean using soap and warm water. -
Page 15: Stainless Steel Care And Cleaning
CLEANING AND MAINTENANCE (cont.) Stainless Steel Care and Cleaning To prevent rust or discoloration on stainless steel several important steps need to be taken. First, we need to understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also contains 12-20% chromium which forms an invisible passive film over the steels surface which acts as a shield against corrosion. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, see Troubleshooting below. The problem may be something very simple that can be solved without a service call. Fault Probable Cause Action...
