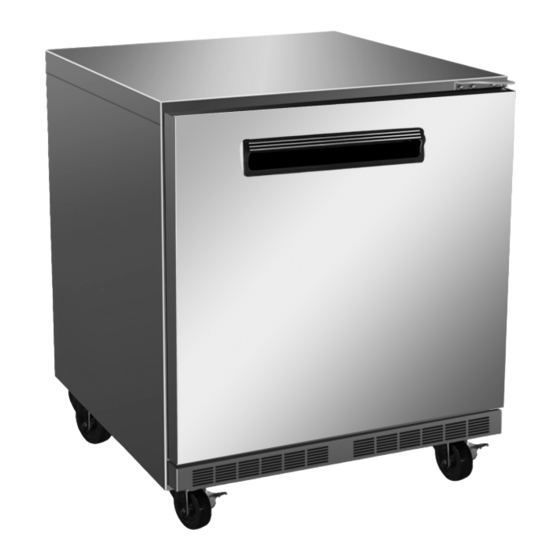

Front breathing undercounter refrigerator
Hide thumbs
Also See for X Series:
- Manual (21 pages) ,
- Service, installation and care manual (16 pages) ,
- Installation manual (28 pages)
Related Manuals for Maxx Cold X Series
Summary of Contents for Maxx Cold X Series
- Page 1 Front Breathing Undercounter Refrigerator Service, Installation and Care Manual MXCR27U-FBHC IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
-
Page 2: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT ..................2 SAFETY WARNINGS ........................3 INSTALLATION ............................ 5 OPERATION ............................6 MAINTENANCE .......................... 8 SPECIFICATIONS & PARTS LISTING ................... 10 WIRING DIAGRAMS ......................11 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 3: Safety Warnings
Service and Installation Manual COMMERCIAL REFRIGERATOR SAFTEY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol. - Page 4 Service and Installation Manual WARNING: RISK OF FIRE DUE TO FLAMMABLE MATERIALS WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 5: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 6: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cabinets Temperature range for the internal cabinets is 35°to 40°F for all undercounter refrigerators. Continual frequent opening and closing of the appliance door may prevent the unit’s ability to maintain optimum refrigeration temperature. - Page 7 Service and Installation Manual 1.1 Function of LEDS MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 8: Maintenance
Service and Installation Manual MAINTENANCE The power switch must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using a mild detergent and warm water. If this isn't sufficient, use a nonabrasive liquid cleaner, preferably one intended for use as a stainless steel cleaner and polisher. - Page 9 Service and Installation Manual MAINTENANCE (cont.) Gasket Maintenance Gaskets require regular cleaning to prevent mold and mildew build up and also to keep the elasticity of the gasket. Gasket cleaning can be done with the use of warm soapy water. Avoid full strength cleaning products on gaskets as this can cause them to become brittle and prevent proper seals.
-
Page 10: Specifications & Parts Listing
Service and Installation Manual SPECIFICATION & PARTS LIST UNDERCOUNTER & WORKTOP REFRIGERATORS STORAGE CAPACITY SHELF (Nominal/ CAPACITY COOLING CHARGE NEMA COMPRESSOR RATED MODEL# V/Hz/Ph AMPS Actual) RATE Sq-ft PLUG Cu-ft MXCR27U-FBHC 115/60/1 1 .5 6.5 / 5.0 2800 2.47 5-15P Number Description Number... -
Page 11: Wiring Diagrams
Service and Installation Manual WIRING DIAGRAMS MODEL: MXCR27U-FBHC... - Page 12 Service and Installation Manual 3355 Enterprise Ave., Suite 160 - Ft. Lauderdale, FL 33331 T: (954) 832-3724 - F: (954) 202-7337 www.maxximumfoodservice.com...
