EverFocus eZ Tracker EFN3320 User Manual

EverFocus eZ Tracker EFN3320 User Manual

Fisheye camera 3mp 360° panoramic view ez tracker
Hide thumbs Also See for eZ Tracker EFN3320:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

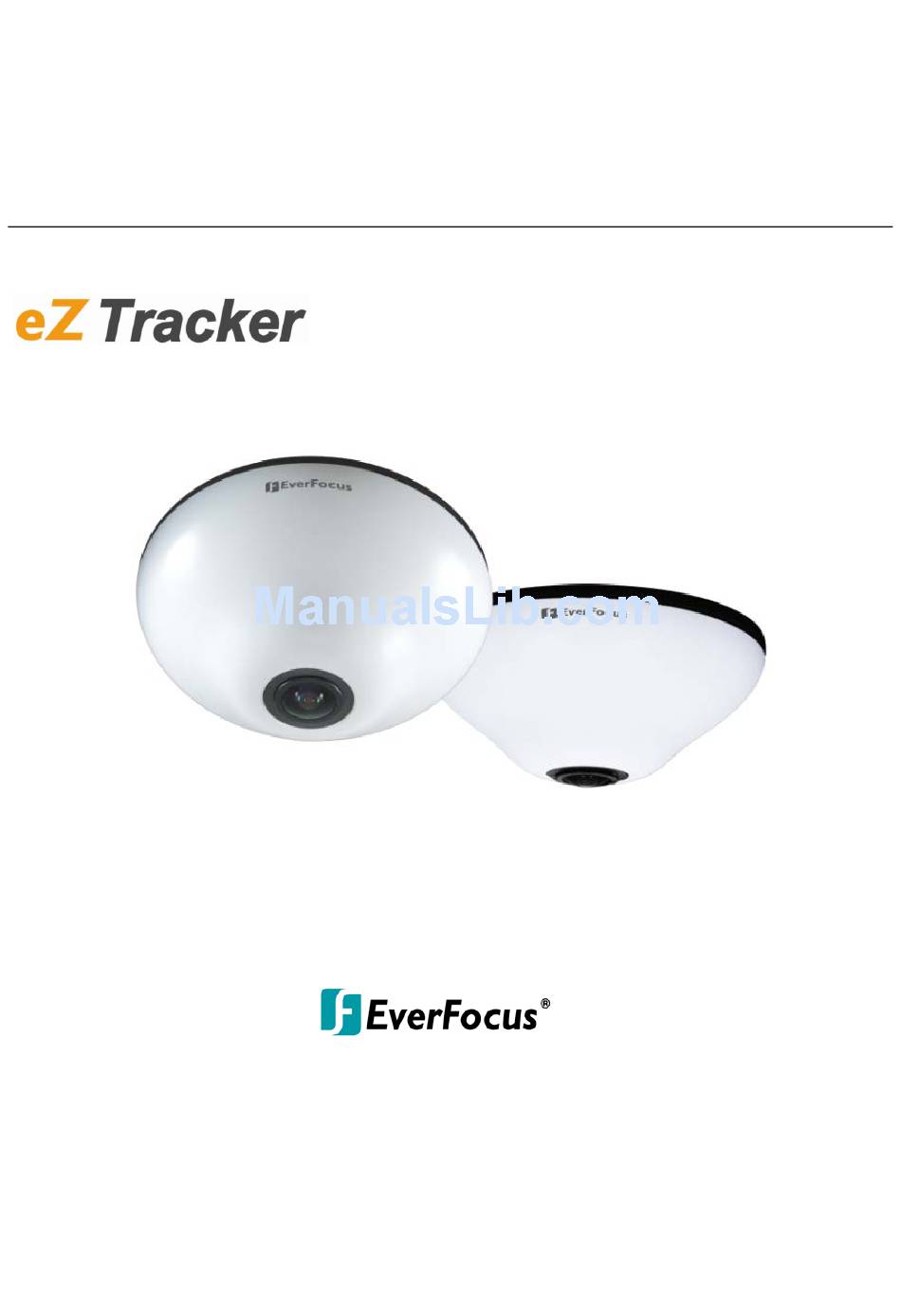

EFN3320 Fisheye Camera
3MP 360° Panoramic View
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: May, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eZ Tracker EFN3320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus eZ Tracker EFN3320

Summary of Contents for EverFocus eZ Tracker EFN3320

  • Page 1 EFN3320 Fisheye Camera 3MP 360° Panoramic View User’s Manual Copyright © EverFocus Electronics Corp, Release Date: May, 2014...
  • Page 2 Copyright  1995-2014 EverFocus Electronics Corp. All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. EverFocus 12F, No.79, Sec. 1, Shin-Tai Wu Road,...

  • Page 3: About This Document

    - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:...
  • Page 4 Precautions 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. 2.

  • Page 5: Table Of Contents

    Contents Introduction ..........................1 Minimum System Requirement ...................... 1 Features ............................2 Physical Description........................3 Dimensions ............................. 3 Cables (BNC, 12 VDC, Audio I/O and Alarm I/O cables are optional)..........4 Installation ........................... 5 Packing List ............................. 5 Ceiling / Desk Mount ........................6 Wall-Mount .............................
  • Page 6 7.1.5 System Maintenance ....................... 54 7.1.6 System Information ......................57 7.1.7 User ..........................58 7.1.8 Black/White List ......................60 Camera Settings ..........................61 7.2.1 Streaming and Audio ...................... 61 7.2.2 Camera ..........................64 7.2.3 Mount ..........................67 7.2.4 Schedule .......................... 67 7.2.5 Image ..........................

  • Page 7: Introduction

    EFN3320 Fisheye Camera Introduction The EFN3320 is a 3-megapixel fisheye camera designed to monitor a location with 360° surround view (ceiling / desk mount) and 180° panoramic view (wall mount). The fisheye camera provides up to 8 cropped regions of view with changeable angles, allowing you to monitor all angles of a location simultaneously using just one camera.

  • Page 8: Features

    Supports micro SDHC / SDXC card for edge recording (see Appendix for the tested card brands)  Two-way audio (optional)  PoE / 12 VDC (optional)  Multi-languages on Web interface  ONVIF / PSIA compliant  Supports EverFocus CMS and Mobile Applications (iOS / Android) ...

  • Page 9: Physical Description

    EFN3320 Fisheye Camera 2. Physical Description Rear View Front View No. Item Name Descriptions Press the button for 7 seconds to reset all configurations to the Reset Button factory default settings. For inserting a micro SDHC / SDXC card (see Appendix for the tested Micro SDHC / SDXC Slot card brands).

  • Page 10: Cables (Bnc, 12 Vdc, Audio I/O And Alarm I/O Cables Are Optional)

    EFN3320 Fisheye Camera Cables (BNC, 12 VDC, Audio I/O and Alarm I/O cables are optional) The Cables provide connections for Network, power, audio input / output, alarm input / output and video test output. Note that the audio line in/out cable features a 3.5mm TRS connector. Be sure to prepare speakers / microphones with TRS connector (see TRS Connector image below).

  • Page 11: Installation

    Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.

  • Page 12: Ceiling / Desk Mount

    EFN3320 Fisheye Camera 3.2 Ceiling / Desk Mount Ceiling Mount Desk Mount Stick the Mounting Template to the ceiling / desk. Drill the three red cross marks on the inner circle, and the square below only if you wish to run the cables through the ceiling / desk. Note that the square below also indicates the cable position.
  • Page 13 EFN3320 Fisheye Camera Place the Spacer onto the rear side of the camera. Remove the cut-out from the Spacer only if you want to run the cables along the ceiling / desk. Spacer Optionally insert the micro SDHC / SDXC card to the push-pull type SD card slot on the rear side of the camera.

  • Page 14: Wall-Mount

    EFN3320 Fisheye Camera 3.3 Wall-Mount You can mount the camera to the wall using the supplied Base Plate or the Tilting Wall Mount Bracket. With the Tilting Wall Mount Bracket With the Base Plate Stick the Mounting Template to the wall. Drill the three red cross marks on the inner circle. If you want to use the supplied Tilting Wall Mount Bracket, drill the three black cross marks on the outer circle.
  • Page 15 EFN3320 Fisheye Camera Insert the supplied three Anchors into the three holes and then screw the Base Plate / Tilting Wall Mount Bracket to the wall using the supplied three Screws. Base Plate Tilting Wall Mount Bracket If you are using the Base Plate, place the Spacer onto the rear side of the camera. This step is only for the Base Plate mounting.
  • Page 16 EFN3320 Fisheye Camera Align the three latches on the camera with the three holes on the Base Plate / Tilting Wall Mount Bracket, attach the camera to the Base Plate / Tilting Wall Mount Bracket and then rotate clockwise to secure the camera to the Base Plate / Tilting Wall Mount Bracket.

  • Page 17: Accessing The User Interface

    EFN3320 Fisheye Camera Accessing the User Interface This section explains how to access the Web interface of the camera for configuration. 4.1 Checking the Dynamic IP Address You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU) software included in the software CD.
  • Page 18 EFN3320 Fisheye Camera Click OK, the Live View window appears. Note that for the first time user, you will be prompted to choose a desired mounting type of your fisheye camera. Click to select a mounting type, the above live view window appears. To change the mounting type, please refer to 7.2.4 Mount.
  • Page 19 EFN3320 Fisheye Camera To optionally configure the Machine Name, IP Address, IP Type or Port Number using the IPU: Log in the camera by checking the desired model and then click the Log in icon. The Log in dialog box appears.

  • Page 20: Settings For Microsoft Internet Explorer

    EFN3320 Fisheye Camera 4.2 Settings for Microsoft Internet Explorer A. To enable Remote Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer, some settings have to be complete. Please follow the steps below: 1. On the computer, click Start > Control Panel > System and Security > Action Center (click Change User Account Control Settings), the User Account Control Settings window appears.
  • Page 21 EFN3320 Fisheye Camera 3. In the Download unsigned ActiveX controls field, select Prompt. In the Include local directory path when uploading files to a server field, select Enable. Click OK. 4. In the Internet Options window, click the Advanced tab and then disable Enable memory...

  • Page 22: Connecting The Camera To The Network

    EFN3320 Fisheye Camera B. For Windows 8 and above systems, to enable the local recording function by clicking the Recording button on the Live View window, please select “Run as administrator” on the browser. Right-click on the IE icon and select Run as administrator.
  • Page 23 EFN3320 Fisheye Camera Direct High-Speed Connection In a Direct High-Speed Connection, the camera connects directly to a modem without the need for a router. You need to set the static or dynamic WAN IP address assigned by your ISP (Internet Service Provider) in the camera’s configuration web pages.

  • Page 24: Live View Window

    (see 6. Fisheye Settings). 4. Snapshot Click the Snapshot button to take a snapshot. By default, the snapshot will be saved at C:\EverFocus\. To change the location, see Record to Local in 7.1.3 Storage. Note: For Microsoft IE10 and above users, some settings have to be complete to enable this function...
  • Page 25 Click the Record button to start / stop recording the current video stream. By default, this icon is only for one-minute video recording and the recordings will be saved at C:\EverFocus\. To change the recording time, see File Size in 7.1.3 Storage. To change the location, see Record to Local in 7.1.3 Storage.
  • Page 26 EFN3320 Fisheye Camera 13. One Push The One Push button can be displayed on the live view window by enabling the Show One Push Buttons function in the Live View Layout Settings (see 7.1.4 Display and Overlay). For the button to work, select One Push from the White Balance Mode drop-down list (see 7.2.6 Image).

  • Page 27: Playback

    EFN3320 Fisheye Camera 5. Playback You can remotely play back the recordings stored in the on-camera SD card on the Web interface, or play back the recordings stored in the computer using the ARV Viewer included in the software CD.
  • Page 28 EFN3320 Fisheye Camera Search by File: Click the Search button to search for all recording files on the on-camera SD card. Search results will be displayed in the Filename area. Search by Time: Click the Date / Time column and select the date and time from which you want to search until the present moment.

  • Page 29: Setting Up The Playback Function

    EFN3320 Fisheye Camera Setting Up the Playback Function Note that the Playback function will not be activated until the user has inserted a micro SD card in the camera’s micro SD card slot. The card may also have to be formatted in the Secure Digital Card field (see 7.1.3 Storage).

  • Page 30: Testing The Playback Function

    EFN3320 Fisheye Camera 5.2.2 Testing the Playback Function 1. To test the Playback function (this is not required), set up a “Manual Trigger” Recording Event by clicking Event Settings > Event. 2. Give the event a name, like “Test 1”.
  • Page 31 EFN3320 Fisheye Camera 6. Look at the “Post-trigger Buffer” at the bottom to make sure the buffer time is set to 10 seconds. Click the Apply button. 7. Click the LiveView button to go back to the Live View page.

  • Page 32: Playing Back Using Arv Viewer

    EFN3320 Fisheye Camera Playing Back Using ARV Viewer You can play back the recordings stored in the computer using the ARV Viewer included in the software CD. To store the recordings in the computer, please refer to Copy in 6.1 Remote Playback Using Playback Page.

  • Page 33: Fisheye Settings

    EFN3320 Fisheye Camera Fisheye Settings You can configure the fisheye settings on this page. Fisheye Settings Page On the Live View Window, click the Fisheye button , the Fisheye Settings page appears. To switch to the Live View Window, click to go to the General Settings page and then click The Fisheye Settings page is designed with two styles: Dark and Light.
  • Page 34 C:\EverFocus\. To change the recording time, see File Size in 7.1.3 Storage. To change the location, see Record to Local in 7.1.3 Storage. To record long-period recordings, please set up a recording schedule (see Schedule Settings in 7.3.2 Event).

  • Page 35: Eptz Settings

    EFN3320 Fisheye Camera ePTZ Settings You can operate the Preset points, Auto Pan and Sequence functions on this page. Up to 30 preset points can be configured. To enter the PTZ Settings page, on the Fisheye Settings page, click Single View Fisheye View You can navigate the camera live view through the Fisheye View or Single View window.
  • Page 36 EFN3320 Fisheye Camera Single View Window Click on the Single View window, an orange indicator will be displayed on the Fisheye View window to indicate the position where you click on the Single View window. By default, the Single View displays the central position of the Fisheye View.
  • Page 37 EFN3320 Fisheye Camera To set up the sequence: The camera can display the selected preset points in a sequence order. Each position is applied with a dwell time of 5 seconds. Click the Sequence button to start the function. The button will turn grey when the function is enabled.

  • Page 38: Ez Tracker

    EFN3320 Fisheye Camera eZ Tracker The eZ Tracker is a cutting-edge technology that realizes the synergy of EverFocus network fisheye and speed dome cameras. This technology not only obtains advantages from both types of cameras but also creates new value for wide-area surveillance without compromising the optimal image quality.

  • Page 39: Installation Notice

    EFN3320 Fisheye Camera Audio: Click to turn on/off the audio function. This button is only appeared if your camera features the audio-out cable. Click to play the camera audio through the computer’s speakers. To activate the Audio function, the Enable Audio must be selected. See Audio Settings in 7.2.1 Streaming and Audio.

  • Page 40: Configuration

    EFN3320 Fisheye Camera 6.3.2 Configuration On the Fisheye Setting page, click the eZ Tracker icon to enter the eZ Tracker setting page. To enable the eZ Tracker function, you have to connect the speed dome camera to the fisheye camera and then configure the calibration setting.
  • Page 41 EFN3320 Fisheye Camera 3. Find an object in the speed dome window and position it to the center by directly clicking on the window. You can refer to the image below for moving the speed dome image. For example, if you click on the left-arrow image division, the camera will go left.
  • Page 42 EFN3320 Fisheye Camera 7. After clicking the Fine Adjustment button, an yellow square should appear on the fisheye window. On the speed dome window, find the object inside the yellow square of the fisheye window, and use the Left or Right Arrow buttons to move the speed dome window in order to make the object place to the center of the window.

  • Page 43: View Mode

    EFN3320 Fisheye Camera View Mode You can select a mode to display the camera view. Note that the mode options vary among mounting types. Ceiling Mount • 9-Division: 1 Fisheye view + 8 dewarped views. • Quad View: 4 dewarped views.
  • Page 44 EFN3320 Fisheye Camera 9-Division (only for Ceiling / Desk mount) 1 Fisheye view + 8 dewarped views The following actions can be operated on this window. • Click to select a dewarped view, the selected view will be highlighted with a yellow frame, and an orange indicator will be displayed on the fisheye view to indicate the location of the selected dewarped view.
  • Page 45 EFN3320 Fisheye Camera Dual 180 Degree (only for Ceiling / Desk mount) Two 180° views Change 180° view location: Click and hold the mouse cursor on either of the 180° view, and then drag the mouse to the left / right to select a location. The other 180° view will be moved accordingly.
  • Page 46 EFN3320 Fisheye Camera Fisheye View (only for Desk mount) 1 fisheye view The fisheye view is only available for Desk Mount. The Zoom function is disabled on this window. Quad View 4 dewarped views The following actions can be operated on this window.
  • Page 47 EFN3320 Fisheye Camera Single View 1 dewarped view The following actions can be operated on this window. • Change single view location: Desk Mount: Click and hold the mouse cursor and then drag the mouse to the left / right to select a location.

  • Page 48: General Settings

    EFN3320 Fisheye Camera 7. General Settings Click the Setting button on to enter the general settings page. There are two tabs: Basic and Advanced on the left-side bar. You can set up the basic camera settings in the Basic tab. To further set up comprehensive camera settings, click the Advanced tab, which includes all the settings to be configured.

  • Page 49: System Settings

    EFN3320 Fisheye Camera System Settings 7.1.1 Network...
  • Page 50  RTP over HTTP: The RTSP protocol uses HTTP for camera data stream transmission.  Nevio CGI: This is EverFocus’ protocol designed for EverFocus’ IP devices. Select this protocol for  camera data stream transmission. 【IP Settings】Enter the IPv4 / IPv6 details in this area, which applies to your system. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings.
  • Page 51 From EverFocus: If you choose the EverFocus DDNS server, you can obtain a free host name  from EverFocus. To obtain a free host name from EverFocus, type a desired host name in the textbox, click the Register / Update button, and then click the Apply button.
  • Page 52 2. In certain router models, it is possible that you will not be able to access the camera using DDNS while inside the router’s network. Please try using a PC located outside of your router’s network. Default Ports on All EverFocus IP Cameras: HTTP: 80 RTSP: 554 HTTPS: 443 【HTTPS Settings】This function can only be set up in the Advanced tab.
  • Page 53 EFN3320 Fisheye Camera 2. Click the Apply button. The subject line will be displayed in the Install Certificated Info field. 3. Click the Property button, a pop-up window appears to display the details of the certificate. 4. To optionally create and install other certificates, remove the existing one by clicking the Remove button to erase the certificate.
  • Page 54 EFN3320 Fisheye Camera 2. Type the required Certificate information and then click the Apply button. The subject line will be displayed in the Created Request field 3. Click the Property button, a pop-up window appears to display the details of the certificate.

  • Page 55: Date / Time

    EFN3320 Fisheye Camera 7.1.2 Date / Time You can set up the system’s time on this page. 【Date/Time Format Settings】 Select the desired Date / Time format and then click the Apply button. To enable displaying the date and time information on the Live View Window, you have to check the Date/Time box in the Overlay Text Settings (see 7.1.4 Display and Overlay).

  • Page 56: Storage

    EFN3320 Fisheye Camera 7.1.3 Storage You can configure the recording path / format, source video stream and SD card settings on this page. 【Record to Local】This function can only be set up in the Advanced tab. You can configure the storage path for storing the live stream recordings / snapshot on your PC.
  • Page 57 EFN3320 Fisheye Camera FTP Back Up Only: Select to send the impending storage shortage text notification to the FTP • server entered in the FTP Repository Settings (see 7.3.3 Notification). Event Recording: Select to send the impending storage shortage text notification to the checked •...

  • Page 58: Display And Overlay

    EFN3320 Fisheye Camera 7.1.4 Display and Overlay You can configure the recording path / format, source video stream and SD card settings on this page. 【Overlay Text Settings】Check the boxes to display the information on the Live View Window. The information will only be displayed on the Live View Window and will not be displayed on the live view video images nor snapshots.
  • Page 59 EFN3320 Fisheye Camera 【Video Overlay Settings】Check the boxes to enable displaying video title or date/time on the live view video images. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. Show video title in video and snapshots: Check the box to enable displaying video title on the live ...

  • Page 60: System Maintenance

    EFN3320 Fisheye Camera 7.1.5 System Maintenance You can configure the recording path / format, source video stream and SD card settings on this page. 【Machine Name】If required, enter a new name for the machine. This name will be visible in the Machine Name field of the IP Utility software, which is included in the software CD.
  • Page 61 EFN3320 Fisheye Camera 【Language Settings】Select the language to be displayed on the Web interface of the IP camera. The default language is English. To add a new language not listed in the current Language list, click the Browse button to locate the new language file (.evb) on your computer and then click the Upload button.
  • Page 62 EFN3320 Fisheye Camera Note: 1. Do not disconnect power to the unit during the upgrade sequence. The unit will reboot automatically after the upgrade has completed (1-5 minutes). 2. During the upgrade process, all event recording actions will be stopped. Event recording actions will resume after the camera is rebooted.

  • Page 63: System Information

    EFN3320 Fisheye Camera 7.1.6 System Information You can see the system information and log information displayed on this page. 【System Status】Displayed the system information. The values cannot be changed on this page. The Uptime represents the period since the camera has been powered on. For example, up 21:28 represents the camera has been powered on for 21 hours and 28 minutes.

  • Page 64: User

    EFN3320 Fisheye Camera 7.1.7 User The system administrator can create up to ten user accounts on this page. 【User Management】The system has automatically created ten user accounts. To set up an user account: 1. Highlight a user account and its information will be displayed in the field below the account list.
  • Page 65 EFN3320 Fisheye Camera User: A user can not only view the live view but also view/configure the below camera settings. • View Configure System Settings Network Network > Protocol Settings Date/Time Date/Time > Date/Time Format Settings Storage > Record to Local Storage >...

  • Page 66: Black/White List

    EFN3320 Fisheye Camera 7.1.8 Black/White List Use this page to specify IP addresses that are allowed / denied to access this camera. By default, any IP address can access the camera. Note: The Allowed IP addresses only become relevant when the Denied items contain a Network or Range, and the supervisor wants to allow one or more IP addresses within that excluded range or network.

  • Page 67: Camera Settings

    EFN3320 Fisheye Camera Camera Settings You can configure camera related settings, such as video / audio, region of interest and privacy mask. 7.2.1 Streaming and Audio...
  • Page 68 EFN3320 Fisheye Camera 【Stream Settings】This IP camera can output three video streams simultaneously. For each of these streams, the user can set the compression format, resolution, bit rate, and frame rate individually. Stream 1 is always enabled for live view. To enable Stream 2, Stream3 and/or Stream 4, check the Enable Stream 2 / Enable Stream 3 / Enable Stream 4 box.
  • Page 69 EFN3320 Fisheye Camera 【Privacy Mask Settings】This function can only be set up in the Advanced tab. The Privacy Mask can block out sensitive areas from view, covering the areas with colored or black and white boxes in both live view and recorded clips. This feature is useful when users’ don’t want the sensitive information visible.

  • Page 70: Camera

    EFN3320 Fisheye Camera 7.2.2 Camera 【Day/Night Settings】 Mode: Select a mode from the drop-down list.  Auto: Select to let the camera automatically switch to Night mode (black and white images • with IR LED on) when the light levels fall to a specified level, and back to Day mode (color images) when the light levels rise to a specified level.
  • Page 71 EFN3320 Fisheye Camera For example: If you set up the D/N level to 1 (lux), the camera will automatically switch from: Day to Night when the light level is below 1 lux. • Night to Day when the light level has reached 3 lux.
  • Page 72 EFN3320 Fisheye Camera 【Backlight Compensation Settings】The Backlight Compensation (BLC) function is useful when the background of the subject is very bright and the subject itself is dark. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings.

  • Page 73: Mount

    EFN3320 Fisheye Camera 7.2.3 Mount Select the mounting type of your camera. Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. 7.2.4 Schedule The Schedule setup page is designed for users to configure the daytime and nighttime of each day.

  • Page 74: Image

    EFN3320 Fisheye Camera 7.2.5 Image This function can only be set up in the Advanced tab. 【Orientation Settings】 Enable Mirror: Check the box to enable the mirror function. The image will be rotated  horizontally around a vertical axis. Enable Flip: Check the box to enable the flip function. The image will be rotated vertically around ...

  • Page 75: Event Settings

    EFN3320 Fisheye Camera Event Settings You can set up the Motion Detection event or Tampering Detection event to automatically notify the users when an event occurs. You can also set up a schedule to automatically record the videos when an event occurs.

  • Page 76: Event

    EFN3320 Fisheye Camera 7.3.2 Event This function can only be set up in the Advanced tab. Except the Event Wizard, you can also configure the event settings along with the Recording Schedule on this page.
  • Page 77 EFN3320 Fisheye Camera 【Event Management】You can set up the events such as Motion Detection or Tampering Detection to automatically notify the users when an event occurs. Event Name: Type an event name. Event Trigger Type: Select an event for the to-be-specified-below reaction/s.
  • Page 78 EFN3320 Fisheye Camera Upload to FTP: Check the box if you want the camera to upload the recordings to the FTP server  entered in the FTP Repository Settings (see 7.3.3 Notification). Record to SD Card: Check the box if you want the camera to start recording its video feed (when ...
  • Page 79 EFN3320 Fisheye Camera 【Schedule Settings】Users can configure the recording schedule here. Select the desired recording types among the options below. Click and drag the cursor on the time block, which will be applied with the selected recording type. Event Recording (Red): Select for the camera to activate all the Event Recording set up in the ...

  • Page 80: Notification

    EFN3320 Fisheye Camera 7.3.3 Notification This function can only be set up in the Advanced tab.
  • Page 81 EFN3320 Fisheye Camera 【SMTP (Email) Settings】This area is for configuring the mail server that is used to send e-mail text notifications and one image file from the camera to predefined addresses via SMTP. Note that to enable e-mail notification function, you have to check the Send Mail Notification box in the Event Management field (see 7.3.2 Event).
  • Page 82 Click Apply to apply the changes or Cancel to cancel the changes and return to the previous settings. 【Network Alarm Settings】This function works with EverFocus CMS software. The camera can send a network alarm signal (when the event occurs) to the CMS servers. To establish the connection between the camera and CMS servers, the protocol and port number should match with each other.

  • Page 83: Link To Smart Phone App

    EFN3320 Fisheye Camera Link to Smart Phone App You can access camera live view or take a snapshot via your smart phone. This page is designed for users to download the mobile app to your mobile phone by scanning the QR code.

  • Page 84: Upgrading Firmware Using Ip Utility

    EFN3320 Fisheye Camera 8. Upgrading Firmware Using IP Utility You can upgrade the Firmware using the IP Utility software included in the software CD. Install and then start the IPU program , the following IPU window appears. The IPU will automatically search the IP devices connected in the LAN.
  • Page 85 EFN3320 Fisheye Camera Click the Upgrade Firmware button , a browsing window appears. Select the firmware file (.evb) and then click Open. The IPU will automatically upgrade the firmware. The camera will reboot once the upgrade process is complete.

  • Page 86: Specifications

    EFN3320 Fisheye Camera 9. Specifications EFN3320 Model Camera Image Sensor 1/3” progressive CMOS sensor Megapixel 3 MP Max. Resolution 1536 x 1536 Min. Illumination 0.5 Lux Electronic Shutter 4 ~ 1/15,000 sec. Scanning System NTSC / PAL Digital Zoom Angle of View (Wide) 360°...
  • Page 87 EFN3320 Fisheye Camera Network Interface 10 / 100 Base-T Ethernet, LAN / PoE Cable TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, Supported Protocols HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP,ICMP, ARP, ONVIF, PSIA, QoS...

  • Page 88: Troubleshooting

    EFN3320 Fisheye Camera 10. Troubleshooting Error messages pop up A. When these error messages pop up, follow the steps below to fix the problem. 1. To enter the Registry Editor of your computer: Click Start and type “regedit” in the Search Program and Files field.
  • Page 89 EFN3320 Fisheye Camera 3. Find the KeepAlive Timeout Dword by following the path: \HKEY_CURRENT_USER\Sofware\Microsoft\Windows\CurrentVersion\Internet Settings 4. Double-click KeepAlive Timeout and this window appears. 5. Change the Value data to 480000 and click OK.
  • Page 90 EFN3320 Fisheye Camera B. Snapshot / Record error message. For Microsoft IE10 and above users, you may have the above error message pop up when you click the Snapshot or Record button on the Live View window. You can simply solve this problem by...

  • Page 91: Appendix

    EFN3320 Fisheye Camera Appendix This IP Camera supports SDHC / SDXC card up to 64 GB. The following brands of the SD / Micro SD cards have been tested by EverFocus and are recommended to work with EverFocus IP camera. Brand ADATA...
