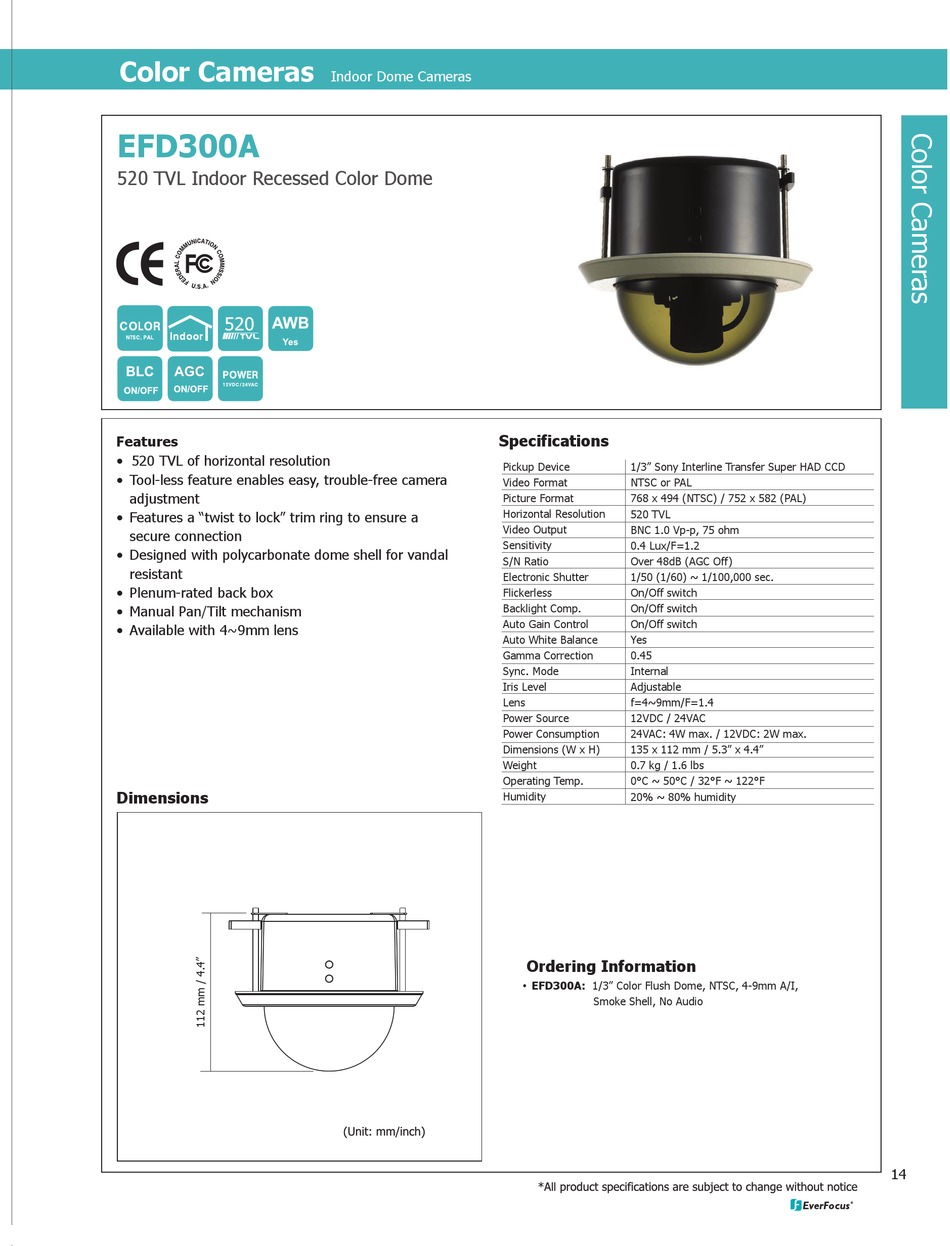

EverFocus EFD300A Specifications

Color Cameras
EFD300A
520 TVL Indoor Recessed Color Dome
Features
• 520 TVL of horizontal resolution
• Tool-less feature enables easy, trouble-free camera
adjustment
• Features a "twist to lock" trim ring to ensure a
secure connection
• Designed with polycarbonate dome shell for vandal
resistant
• Plenum-rated back box
• Manual Pan/Tilt mechanism
• Available with 4~9mm lens
Dimensions
Indoor Dome Cameras

Specifications

Pickup Device
Video Format
Picture Format
Horizontal Resolution
Video Output
Sensitivity
S/N Ratio
Electronic Shutter
Flickerless
Backlight Comp.
Auto Gain Control
Auto White Balance
Gamma Correction
Sync. Mode
Iris Level
Lens
Power Source
Power Consumption
Dimensions (W x H)
Weight
Operating Temp.
Humidity
"Sony 1/3" Interline Transfer Super HAD CCD
1/3" Sony Interline Transfer Super HAD CCD
NTSC or PAL
NTSC or PAL
768 x 494 NTSC / 752 x 582 PAL
768 x 494 (NTSC) / 752 x 582 (PAL)
520 TVL
520 TVL
BNC 1.0 Vp-p, 75 ohm
BNC 1.0 Vp-p, 75 ohm
0.1 lux/F=1.2
0.4 Lux/F=1.2
Over 48dB (AGC Off)
Over 48dB (AGC Off)
1/50 (1/60) ~ 1/100,000 sec.
1/50 (1/60) ~ 1/100,000 sec.
On/Off switch
On/Off switch
On/Off switch
On/Off switch
On/Off switch
On/Off switch
Yes
Yes
0.45
0.45
12VDC / 24VAC
Internal
F=4~9mm
Adjustable
Approx. 135 (O.D) x 112 (D) mm /
f=4~9mm/F=1.4
5.31" (O.D.) x 4.41" (H)
12VDC / 24VAC
0°C~40°C / 32°F~104°F (20%~80% Humidity)
24VAC: 4W max. / 12VDC: 2W max.
24VAC, 4W max. / 12VDC, 2W max.
135 x 112 mm / 5.3" x 4.4"
0.7kg / 1.6 lb
0.7 kg / 1.6 lbs
0°C ~ 50°C / 32°F ~ 122°F
20% ~ 80% humidity

Ordering Information

EFD300A: 1/3" Color Flush Dome, NTSC, 4-9mm A/I,
Smoke Shell, No Audio
14
