Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1.
Do not install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.
2.
Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
3.
Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4.
Keep the power cord away from water and liquid.
Touching the wet power cord may result in electric shock.
5.
Never install the camera in areas exposed to water, oil or gas.
Water, oil or gas may result in failure, electric shock or fire.

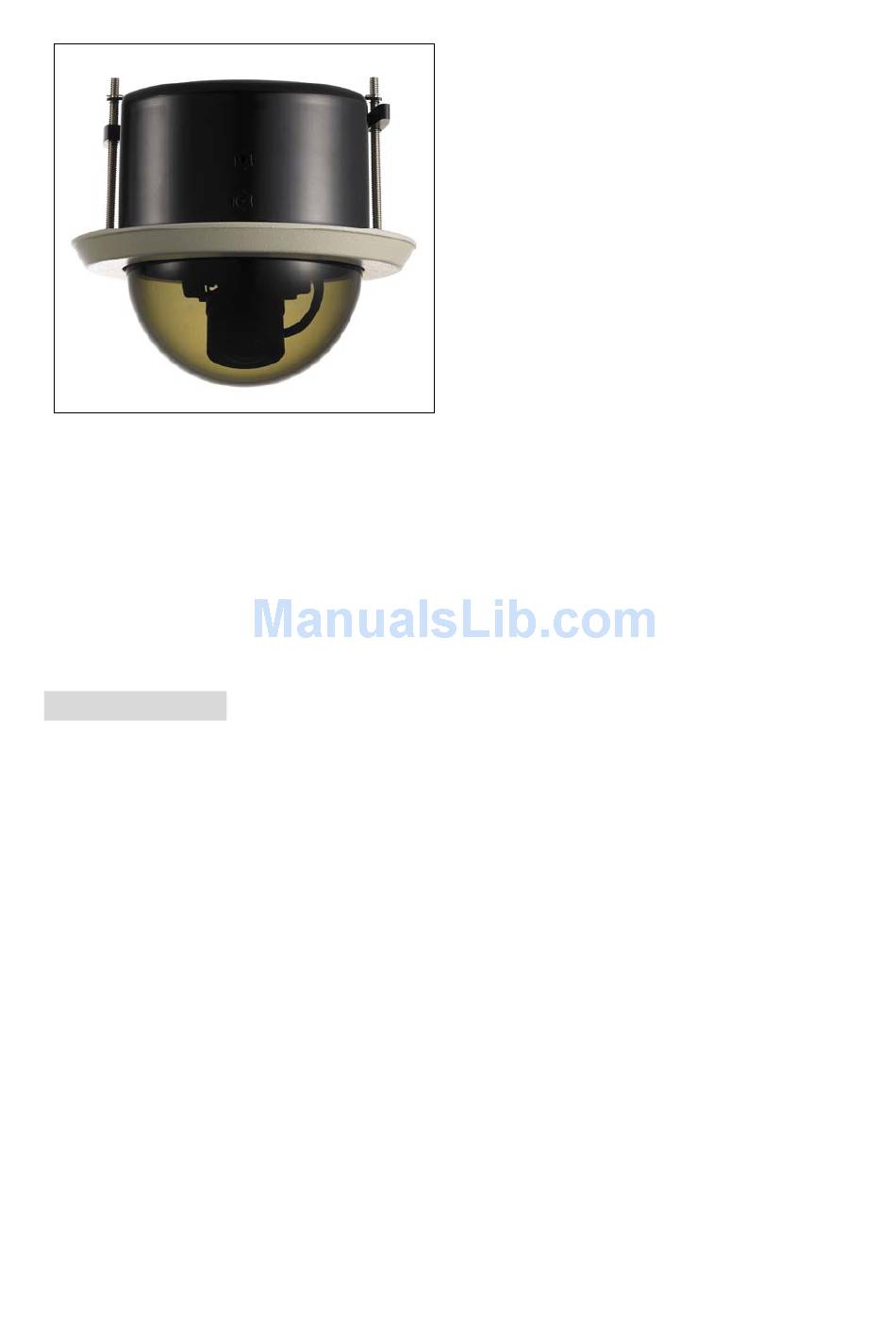

1/3" 520TVL Color Flush Dome Camera
EVERFOCUS
Operation Instructions
EFD300
Model No.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EverFocus EFD300
Summary of Contents for EverFocus EFD300
-
Page 1: Operation Instructions
EVERFOCUS 1/3” 520TVL Color Flush Dome Camera Operation Instructions EFD300 Model No. Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. - Page 2 Cleaning Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the camera lens. Do not operate the camera beyond the specified temperature, humidity or power source ratings.
-
Page 3: Specifications
SPECIFICATIONS Pickup Device 1/3'' SONY Super HAD CCD Video Format NTSC or PAL NTSC: 525 TV lines, 60 fields/sec Scanning System PAL: 625 TV lines, 50 fields/sec. Picture Elements 768x494(NTSC) ; 752x582(PAL) Horizontal Resolution 520TVL Sensitivity 0.1Lux/F=1.2 S/N Ratio Over 48dB (AGC off) Electronic Shutter 1/50(1/60)~1/100,000 Vari-focal lens, Auto Iris... -
Page 4: Optional Accessories
OPTIONAL ACCESSORIES • EN220 - 5.6-inch High Res LCD Field Monitor DIMENSION DIAGRAM 55mm/2.17” 55mm/2.17” 45mm/1.77” 90mm/3.54” 120mm/4.72”... -
Page 5: Hardware Overview
HARDWARE OVERVIEW 1. Camera Bubble Cover 2. Camera Setting- Please refer detail in camera setting for user manual. 3. BNC and Power Pigtail... -
Page 6: Installation
INSTALLATION This section covers simple steps and detail installation. Please follow instruction for preventing any unnecessary damage. Simple Steps: 1. Cut a circle on the ceiling and mount the camera 2. Adjust lens, camera position 3. Adjust camera setting on Dip Switch Detail Steps: 1. - Page 7 2. Adjust lens, camera position a. Optional connecting to testing monitor- You can connect to testing monitor with video pin shown as following. Monitor Testing Pin b. Zoom and focus (for Vari-focal Lens Model) (1) Loosen the zoom ring knob, and then turn the ring towards <W> or <T> as necessary to obtain the desired view range.
-
Page 8: Camera Setting
You can lose the camera fixing screw and tilt the camera to your best angle of view. Tilt Camera Fixing Screws 3. Camera Setting CAMERA SETTING BLC (Back Light Compensation) When BLC is turned on, the AGC, FL and IRIS operating point is determined by averaging over the center area instead of entire field-of-view, so that a dimly-lit foreground object at center area can be clearly distinguished from brightly-lit backgrounds. - Page 9 ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50 (PAL) second to 1/100,000 second according to the luminance conditions of the scene. ES OFF: The shutter speed is fixed at 1/60 (NTSC),1/50 (PAL) second. Set ES OFF, when auto iris lens is used or flicker is observed under a very bright fluorescent lamp. Otherwise, turn ES on for optimum performance.
