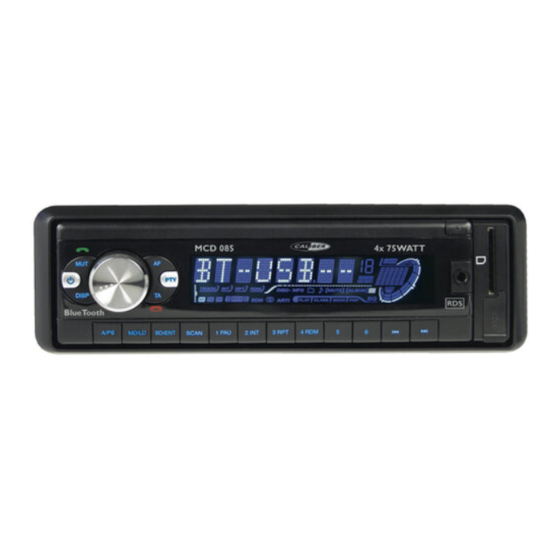

Car Stereo MP3/WMA Player
with PLL FM Stereo Radio
Radio Data System with PTY
AUX IN / USB / MMC / SD Card Input
Bluetooth Function in Mobile Phone
8
12
9
10
13
18
19
20
21
22
23
11
26
24
Flip Down and Detachable Front Panel System
4
(1-6)
1
29
3
28
Advertisement
Table of Contents
Related Manuals for Caliber MCD 085
Summary of Contents for Caliber MCD 085
-
Page 1: Instruction Manual
MCD 085 INSTRUCTION MANUAL MCD 085 6 29 MCD 085 Car Stereo MP3/WMA Player with PLL FM Stereo Radio Radio Data System with PTY AUX IN / USB / MMC / SD Card Input Bluetooth Function in Mobile Phone Flip Down and Detachable Front Panel System... -
Page 2: Locations Of Controls
MCD 085 LOCATIONS OF CONTROLS 6 29 6 29 MCD 085 MCD 085 (1-6) (1-6) 1. POWER ON/OFF ( . FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/ BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP 3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/ BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP 4. PRESET STATIONS (1,,3,4,5,6) 5. ‘AF’ function (ALTERNATIVE FREQUENCIES) 6. ‘TA’ function (TRAFFIC ANNOUNCEMENT) 7. ‘PTY’ function (PROGRAM TYPE) 8. DISPLAY BUTTON (DISP) 9. MODE/LOUDNESS BUTTON (MD/LD) 10. BAND/ENTER BUTTON (BD/ENT) 11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN TRACK/SEARCH BUTTON 1. AUTO SEEK SEARCH TUNING (A/PS) -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. Mounting angle adjustment Adjust the mounting angle to less than 0°. MOUNTING EXAMPLE Installation in the dashboard Release screw and bracket 182mm 53mm Bend these claws, if necessary Note: Keep the release key in a safe place as you may need it in the future to remove the unit from the car. TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE 3. -
Page 4: Cleaning The Connector
Notes: • Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit. • When you carry the front panel with you, put it in the supplied front panel case. • Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit. CLEANING THE CONNECTOR Main unit Rear of The unit may not function properly if the connectors between the unit front panel and the front panel are contaminated with dirt. In order to prevent this from happening, detach the front panel by pressing the button and clean the connector from time to time. Clean the connector with a cotton swab together with contact cleaner as illustrated. Be sure to clean them carefully pin by pin and make Cotton Swab sure not to damage the connecting points. ISO CONNECTOR ISO CONNECTOR RCA Jack Line Out: 1 3 5 7 Red (right) White (left) ANTENNA 2 4 6 8 CONNECTOR CONNECTOR A LINE OUT... -
Page 5: Power On/Off
OPERATING INSTRUCTIONS POWER ON/OFF ( By pressing this key, the unit is on or off. This unit is turned on by pressing any key. 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP VOLUME UP/DOWN Turning VOL knob (right/left) to adjust VOL/BAS/TRE/BAL/FAD. To select other functions, press the VOL knob shortly until the desired functions are shown on the display. Figure 1 shows how to control functions that are selected using the VOL knob. Fig. 1 Selection of sound control functions 1. VOL . SEL 3. BASS 4. TRE 5. BAL 6. FAD Increase or decrease the volume by turning VOL knob (right/left). These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER. 2 sec. IN VOL TA VOL Press and hold VOL knob to adjust INIT VOL /CT/TA VOL/EON ON/DSP IN VOL: Can adjust Initial Volume level using this mode. - Page 6 DISPLAY (DISP) Press DISP button to switch between display informations such as radio frequencies, clock, track and other informa- tions depending on the playing MODE. MODE/LOUDNESS BUTTON (MD/LD) By pressing this key, user can select. AUX/TUNER/USB/SD/MMC/ADP mode. LOUDNESS: By pressing this key longer than sec., you can select LOUDNESS mode. 10. BAND BUTTON (BD) Each band is toggled cyclically by pressing this key FM1---FM---FM3. 11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN (A) RADIO MODE When pressed momentarily, these keys are operated as SEEK tuning mode. When pressed longer than 1 sec., they are operated as MANUAL tuning mode. (B) MP3/WMA PLAYER MODE When pressed momentarily, they are operated as TRACK UP or TRACK DOWN mode. When pressed longer than 1 sec., they are operated as CUE or REVIEW mode. 12. AUTO SEEK SEARCH TUNING (A/PS) PS - By pressing shortly, the radio searches for each preset station. Each preset station will be played for 5 sec.
-
Page 7: How To Select Mp3/Wma Files
HOW TO SELECT MP3/WMA FILES Searching by Track: • Press “A/PS”, then search track is activated. • Turn “VOL” knob to left or right, select first digit desired. • Press “VOL” knob, then the first digit is fixed and second digit will flash. • Turn “VOL” knob to left or right, select ’nd 3’rd respectively. • Press “BD/ENT”, the song selected will start. -
Page 8: Technical Specifications
