Acewell ACE-100- User Manual

ACE-1000 does not have functions of thermometer and volt meter; *all descriptions relative to these functions are for ACE-1100 only.
2
8
5

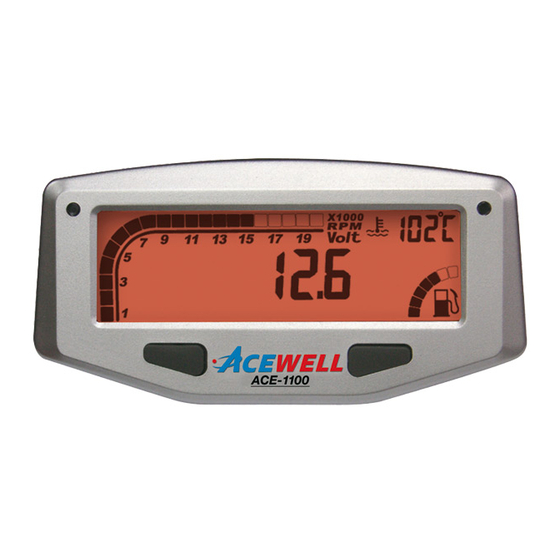

PANEL DESCRIPTIONS
1. Tachometer Scale
2. Bar Tachometer
3. Other functions
4. Thermometer*
5. RESET Button
FEATURES
Displays bar-graphic tachometer, digital thermometer*,
bar fuel gauge and one additional function at the same time.
Bar-graph tachometers with selectable 10,000rpm or
20,000rpm redline.
Two sets of maintenance reminders to remind you it is time to service
your bike.
Fuel gauge includes 100, 250 and 510 Ohm options for fuel meter
input resistance, as well as "fuel gauge off" mode.
Includes main unit, bracket, RPM sensing wire, thermo sensor*,
fitting kits and wiring harness.
SPECIFICATIONS
Function Simbolo
Bar Tachomete
Digital Tachometer rpm
Digital Thermometer*
Maximum Thermometer*
12/24 Hour Clock
Hour meter 1&2
RT 1&2
Total Hour Meter
Voltage Gauge* V
Bar-Fuel Gauge
Maintain Reminder
or RT2
Power Input DC 12V
Tachometer Sensor CDI or Ignition Coil Signal
Temperature Sensor* Thermo Sensor
Power Consumption 50uA at clock mode
1mA at on status without backlight and all sensors off
2mA at all sensors on status without backlight
15mA at on status with 3 sec. backlight
25mA at on status with continue backlight
Dimensions 110.0mm x 55.0mm x 21.5 mm)
INSTALLATION
Main Unit Mounting
Rubber Pad
Washer
Spring Washer
Fixing Screw Nut
ATV/Motorcycle Computer
ACE-1000/1100 User Manual
Thanks for bought the ATV/Motorcycle computer; this manual is designed for ACE-1000/1100 series.
1
6
6. MODE Button
7. Fuel Gauge
8. RPM Warning Indicator
9. Temperature*/Fuel gauge
warning LED
Specifications
500-10,000 rpm
1,000-20,000rpm options
100-19,900rpm
0:00`-11H59`/23H59`
0-99H59`59``
0-999999H
8.0-18.0 Volt
100Ω, 250Ω, 500Ω options or
1-7 Bar-graphic
1-9999 hours
RT1
Main Unit
Mounting
9
RESET
4
3
7
10R-029648
MADE IN TAIWAN
RPM sensing wire mounting:
1. Signal intensity from ignition coil is dependent on vehicle type.
2. Circles 2-5 turns around ignition coil, with more turns creating
steadily stronger signal, fewer turns creating weaker signal.
3. The RPM circuit is designed for most bikes, however partial
bikes' signal is too strong if the RPM looks like much more than
actual RPM and unstable, please serial connect the attached 1M
Ohm resistor to solve it.
CDI
Thermo Sensor and Sensor Tube* :
1. The unit includes a water temperature sensor; you have to
purchase a suitable water pipe temperature sensor tube to
install the sensor easily. It is not need to purchase sensor
tube in case your bike matches PT1/8 temperature sensor
and the attachment is PT1/8 sensor.
2. Cut the water pipe, insert the temperature tube into the
pipe and secure it by attached pipe clamps.
3. Screw the sensor into the tube.
BAR RPM: Bar Graphic Tachometer
The bar tachometer has 10,000rpm and 20,000rpm options.
RPM: Digital Tachometer
1. It displays digital tachometer up to 19,900RPM.
2. Tachometer signal can pick up from either CDI or
Ignition Coil Signal.
Shift Warning RPM
1. The function enables you to set up a shift warning RPM.
2. Shift warning LED indicator flashes when RPM reaches
setting value, and stop flash after you shift gear.
RT 1&2: Hour Meter 1&2
1. Calculates total engine operation time from last RESET.
2. Count automatically begins with engine starting.
TT: Total Hour Meter
1. Calculates total engine operation time from the
beginning of the computer.
2. TT data is stored in memory, and couldn't be reset.
: 12/24 hour Clock
It displays 12 or 24 hour current time.
: Digital Thermometer*
1. The thermometer always displays on the right side of the screen.
2. It displays -L- C or -L- F when temperature is lower than
50 C or 122 F, and displays -H- C or –H- F when
temperature is over 180 C or 356 F.
3. The thermometer digits and warning LED indicator flash when
the thermo sensor detects temperature over the presetting
warning temperature.
RESET
English
RPM-INPUT
Either One
Tuns
Ignition Coil
FUNCTIONS
10R-029648
