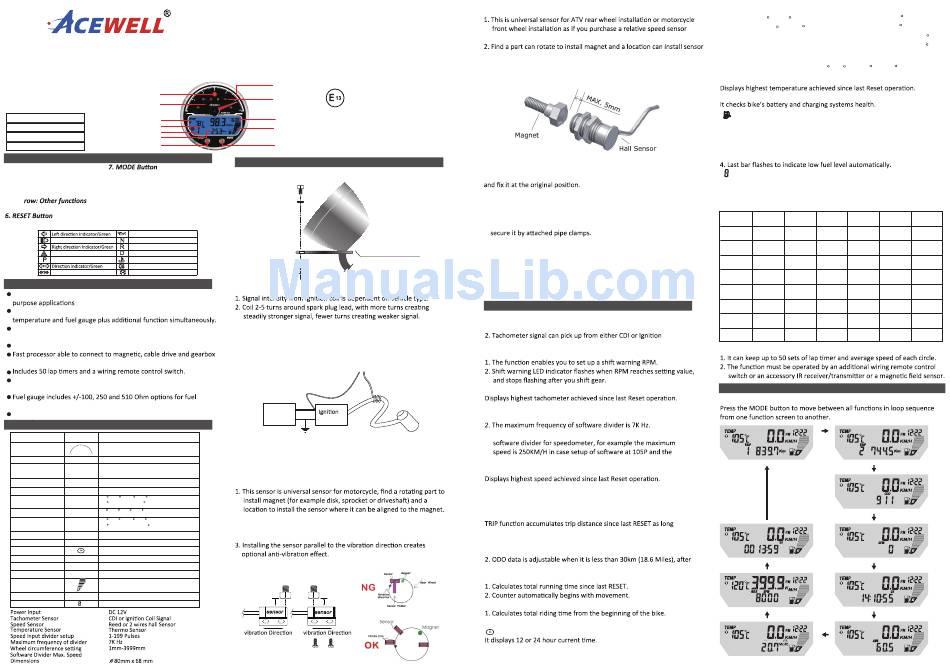

Acewell ACE-43 Series User Manual

ATV/Motorcycle Computer
ACE-4XXX-XX User Manual
Thanks for purchasing the ATV/Motorcycle computer; this manual is specifically designed for ACE-4XXX-XX series.
Different series have different needle tachometer scales, each series has different models, each model has different LED indicators.
You may find that the photo has a set of LED indicators different from your computer, the photo is for reference only.
8
Different series with different needle
2
tachometer scales are as bellows:
ACE-43XX-XX : 6,000 rpm
5
3
ACE-44XX-XX : 9,000 rpm
12
ACE-45XX-XX : 12,000 rpm
4
ACE-46XX-XX : 15,000 rpm 6
PANEL DESCRIPTIONS
1. Tachometer Scale
8. RPM Warning Indicator
2. Needle Tachometer
9. 12/24 Hour Clock
3. 1 row: Current &
st
10. Bar Fuel gauge
Max.Speedometer
11. LED indicators
4. 2
nd
5. Temperature 1 &2 12. Gear indicators
Different models have different LED indicators, each indicator symbol means
as below:
Engine oil / Red
N
Main-beam headlamp/Blue Neutral Gear /Green
R
Reverse Gear /Red
D
Hazard Warning/ Red Drive Gear /Green
P
Parking/Green Engine coolant temperature/ Red
Rear fog lamp/Amber
Flash Trailer/Green Engine in out of use/ Red
FEATURES
Aluminum CNC main unit built-in 4-6 LED indicators for different
Displays needle tachometer, speedometer, clock, Coolant or air
Digital tachometer is up to 19,900rpm regardless of the needle
tachometer scale
Allows end user to adjust his/her prefer backlight color.
speed sensors.
Allows end user to adjust odometer when the odometer is less
than 30km / 18.6 miles
meter input resistance, as well as "fuel gauge off" mode.
Includes bracket, RPM sensing wire, speed sensor, thermo sensor,
SPECIFICATIONS
Function Simbolo Specifications
ACE-43XX-XX 6,000rpm ACE-45XX-XX 12,000rpm
Needle Tachometer
ACE-44XX-XX 9,000rpm ACE-46XX-XX 15,000rpm
rpm
Digital Tachometer 100-19,900rpm
Km/h
Speedometer 2.4-399.9 Km/h (248.5 MPH)
/ MPH
Maximum speed MAX 2.4-399.9 Km/h (248.5 MPH)
Average speed AVG 2.4-399.9 Km/h (248.5 MPH)
Coolant temperature +50 C-180 C / 122 C-356 C
TEMP 1
<50 C display -L-, >180 C display -H
TEMP 2
Air temperature -20 C-+60 C / -4 F-140 F
Max. Temperature MAX
+50 C-180 C / 122 F-356 F
<50 C display -L-, >180 C display -H-
TEMP 1
Trip meter 1&2 TRIP 1&2 0.0-999.9 KM /624.9Miles
Odometer ODO 0.0 - 999999 KM, 0.0-624999 Miles
12/24 Hour Clock AM/PM 0:00`-11H59`/23H59`
Riding timer RT 0-99H59`59``
Total Riding Time TT 0-999999H
Voltage Gauge V 8.0-25.0 Volt
100Ω, 250Ω, 500Ω options or
Bar-Fuel Gauge*
1-7 Bar-graphic
LAP Lap 50 laps
Gear indicators 1, 2,...8 gears and off mode
English 英文
1
10R-029702
11
9
10
7
INSTALLATION & PARTS
Main Unit Installation:
Bolt
Washer
Main Unit Mounting
Rubber
Fixing Screw Nut
RPM sensor mounting:
3. The RPM circuit is designed for most bikes, however some bikes'
signal is too strong if the RPM looks like much more than actual
RPM and unstable, please serial connect the included 1M Ohm
resistor in series to solve it.
RPM Input ,
Either one
2-5 Tuns
CDI
Coil
Speed Sensor:
ACEWELL has several speed sensors; the unit may include one of them.
If the model is intended to be connected to a gearbox electronic speed
output to obtain the speed reading, no speed sensor will be included.
Reed Speed Sensor and Magnet:
2. Align the center of the magnet to either of the sensor marking lines
or the side of the sensor. The magnet must not travel down the
body of the sensor
4. Make sure the gap between the magnet and the sensor is within 8mm.
MAX 8mm MAX 8mm
sensor sensor
Hall Effective Speed Sensor and Magnet:
holder.
and the sensor can be aligned to the magnet.
3. Align the center of the magnet to center of side face of the sensor.
4. Make sure the gap between the magnet and the sensor is within 5mm.
Specific Hall sensors:
The sensor such as Honda CRF, XR....etc. can replace original sensor cable
Thermo Sensor and Sensor Tube:
1. The unit includes a water temperature sensor; you have to purchase
a suitable water pipe temperature sensor tube to install the sensor easily.
2. Cut the water pipe, insert the temperature tube into the pipe and
3. Screw the sensor into the tube.
Wire Remote Control Switch Installation:
1. Install the switch arm on handlebar.
2. Install the switch box to one of 3 fixing holes and adjust switch box to a
suitable angle.
3. Plug the switch box connector into the main unit matching connector.
FUNCTIONS
RPM: Digital Tachometer
1. It displays digital tachometer up to 19,900RPM.
Coil Signal.
Shift Warning RPM
MAX RPM: Maximum Tachometer
Km/H or MPH: Speedometer
1. Displays speed meter up to 399.9 Km/H or 248.5 MPH.
3. The speed can be less than 399.9 KM/H in case the setup is using
wheel circumference at 1277mm.
MAX: Maximum Speed Meter
AVG: Average Speed Meter
It calculates average speed from last RESET. The AVG is calculated
from TRIP be divided by RT.
TRIP 1&2: Trip Meter 1&2
as bike/vehicle is moving.
ODO: Odometer
1. ODO accumulates total distance traveled.
that it stored in memory and cannot be reset.
RT: Riding Timer
TT: Total Riding Timer
2. TT data is stored in memory, and couldn't be reset.
: 12/24 hour Clock
TEMP 1: Engine Temperature Meter
1. It displays -L- C or -L- Fwhen temperature is lower than 50 C or 122 F,
and displays -H- C or –H- F when temperature is over 180 C or 356 F.
2. The LCD screen flashes the digits of temperature when the thermo
sensor detects temperature higher than the maximum preset
temperature.
TEMP 2: Air Temperature
It displays air temperature from -20 C (-4 F ) to+60 C (+140 F).
MAX TEMP 1: Maximum Temperature
Volt: Digital Voltage Gauge
: Fuel Gauge
1. Has 7 bars to indicate how much fuel remains.
2. Built-in 100, 250, 510Ohm, oFF, -100, -250 and -510 Ohm fuel sender
resistance, the fuel bars will disappear when you select "oFF" mode.
3. The full bars are low resistance and empty bar is high resistance for
100, 250 and 510ohm; -100, -250 and -510 ohm are the inverse.
: Gear Indicator
1. The gear indicator calculates gear by comparing speed and RPM then
displays gear position.
2. User has to train the gear indicator before use it.
Fuel Bar & Resistor Value
Bars 100r 250r 510r -100 -250
0-10 0-25 0-50 100-90 250-230
7
6 11-20 26-50 51-100 89-75 229-200
21-35 51-85 101-180 74-60 199-150
5
36-45 86-110 181-230 59-45 149-110
4
46-60 111-150 231-300 44-35 109-85
3
61-75 151-200 301-380 34-20 84-50
2
1 76-90 201-230 381-460 19-10 49-25
91-100 231-250 461-510 9-0 24-0
0-Flash
LAP: Lap Timer
