8
3
5
PANEL DESCRIPTIONS
1. Tachometer Scale
2. Bar Tachometer
3. 1st row: Current & Max.
Speedometer
4. 2nd row: Other functions
FEATURES
Displays bar-graphic tachometers, speedometer, bar fuel meter
and one additional function at the same time.
Powered with either the internal CR2032 battery or the bike's
battery.
Bar-graph tachometers with selectable 10,000rpm or 20,000rpm
redline.
Allows end user to adjust odometer when the odometer is less
than 30km / 18.6 miles..
Fuel gauge includes +/-100, 250 and 510 Ohm options for fuel
meter input resistance, as well as "fuel gauge off" mode..
Includes bracket, RPM sensing wire, speed sensor, fitting kits
and wiring harness.
SPECIFICATIONS
Function
Simbolo
Bar Tachometer
km/H/MPH
Speedometer
Trip 1&2
Trip meter 1&2
Odometer
12/24 Hour Clock
Average speed
AVG
Riding Time
Hour meter
Total Hour Meter
Digital Tachometer
Maximum Tachometer
MAX RPM
Bar-Fuel Meter
Maximum speed
Power Input
DC 12V
Tachometer Sensor
CDI or Ignition Coil Signal
Speed Sensor
Reed Sensor (Internal or Bike's power) or
Hall sensor (Bike's power application) only
Wheel circumference setting
1mm-3999mm
Power Consumption
50uA at clock mode
1mA at on status without backlight and all sensors off
2mA at all sensors on status without backlight
15mA at on status with 3 sec backlight
25mA at on status with continue backlight
Dimensions
110.0mm x 55.0mm x 21.5 mm)
INSTALLATION & PARTS
Main Unit Mounting
Rubber Pad
Washer
Spring Washer
Fixing Screw Nut

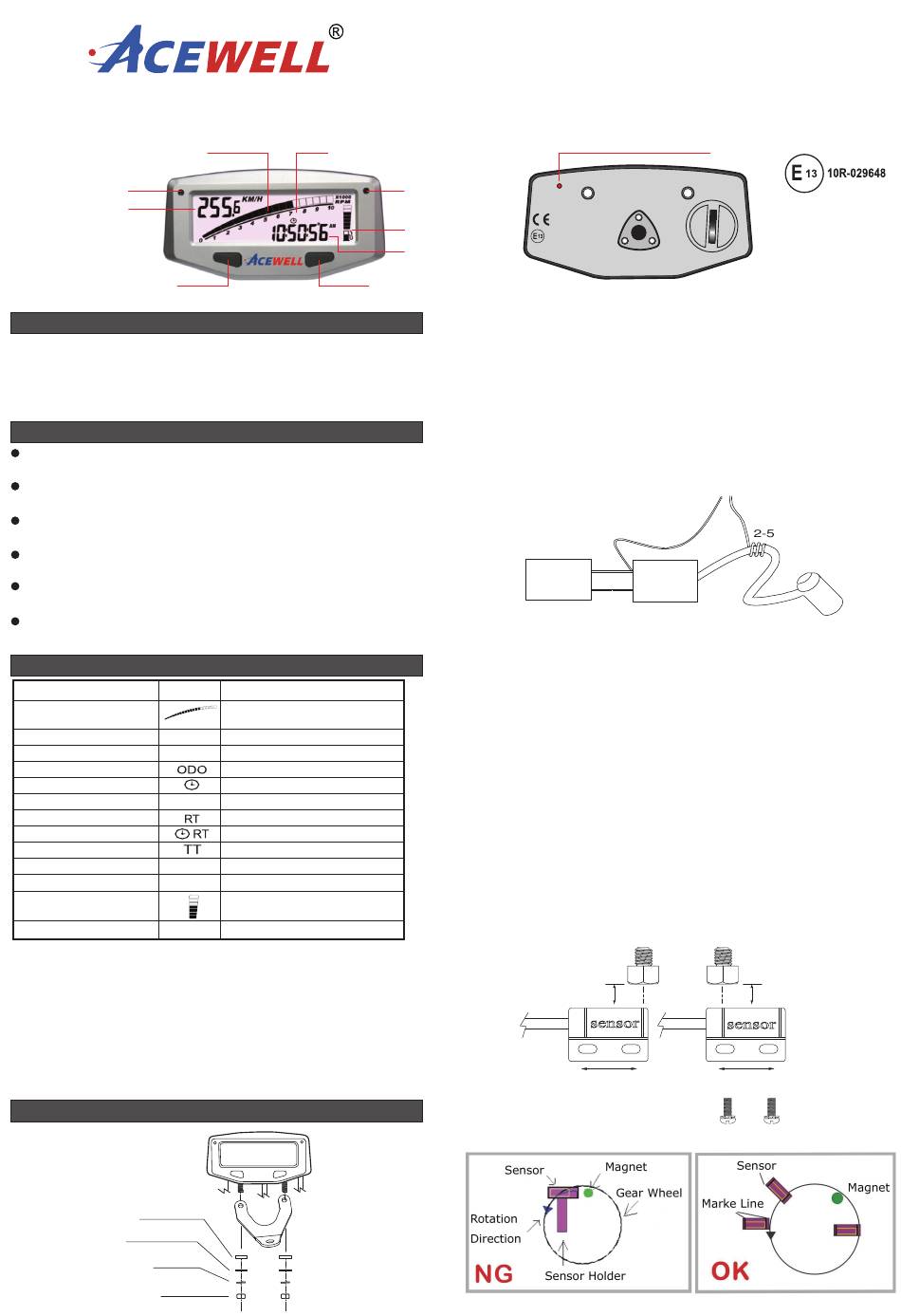

ACE-1500 User Manual
Thanks for bought the ATV/Motorcycle computer, please read the manual before you install the computer.
2
1
7. Bar Fuel Meter
8. RPM Warning Indicator
9. Fuel Gauge Warning LED
Specifications
500-10,000 rpm
1,000-20,000rpm options
2.4-399.9 km/h (248.5 MPH)
0.0-999.9 KM/Miles
0 - 999999 KM, 0-62499 Miles
0:00`-11H59`/23H59`
2.4-399.9 km/h (248.5 MPH)
0-99H59`59``
0-9999H59`
0-999999H
rpm
100-19,900rpm
100-19,900rpm
+/-100Ω, 250Ω, 510Ω or OFF options
MAX
2.4-399.9 km/h (248.5 MPH)
Main Unit
ATV/Motorcycle Computer
9
7
4
6
RPM sensing wiring Mounting
1. Signal intensity from ignition coil is dependent on vehicle type.
2. Circles 2-5 turns around ignition coil, with more turns creating
steadily stronger signal, fewer turns creating weaker signal.
3. The RPM circuit is designed for most bikes, however partial
bikes'signal is too strong if the RPM looks like much more
than actual RPM andunstable, please serial connect the
attached 1M Ohm resistor to solve it.
Speed Sensor Mounting
Acewell has several speed sensors; the unit includes one of them
or not speed sensor in case the model has to be connected to gear
box to get speed signal.
Reed Speed Sensor and Magnet:
1. This sensor is universal sensor for motorcycle, find a
rotatable part to install magnet and a location can install
sensor and can be aligned to the magnet.
2. Align the center of the magnet to either of the sensor
marking lines or the side of the sensor.
3. Installing the sensor parallel to the vibration direction
creates optional anti-vibration effect.
4. Make sure the gap between the magnet and the sensor
is within 8mm.
RESET
10R-029648
MADE IN TAIWAN
RPM-INPUT
Either One
CDI
Ignition Coil
Max. 8mm
sensor
Vibration Direction
Vibration Direction
English
2015/05/14
RESET
Tuns
Max. 8mm
sensor
