Acewell ACE-2XX User Manual

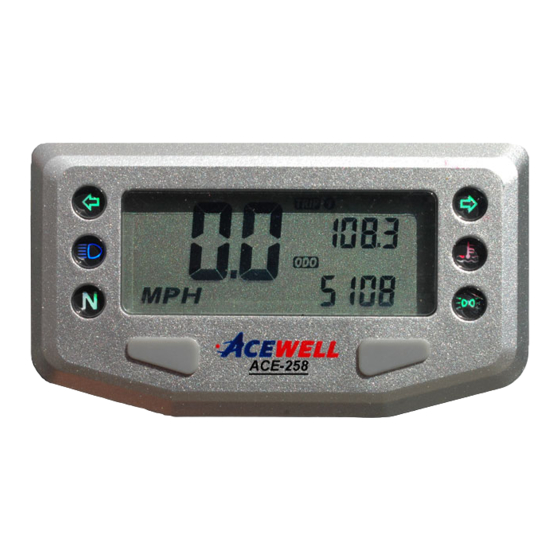

Thanks for purchasing this ATV/Motorcycle/Scooter computer; this manual is designed for ACE-2XX series. Each model has 4-6 LED indicators.
Different model has different LED indicators. You may found above photo has different LED indicators from your computer; the photo above is for reference only.

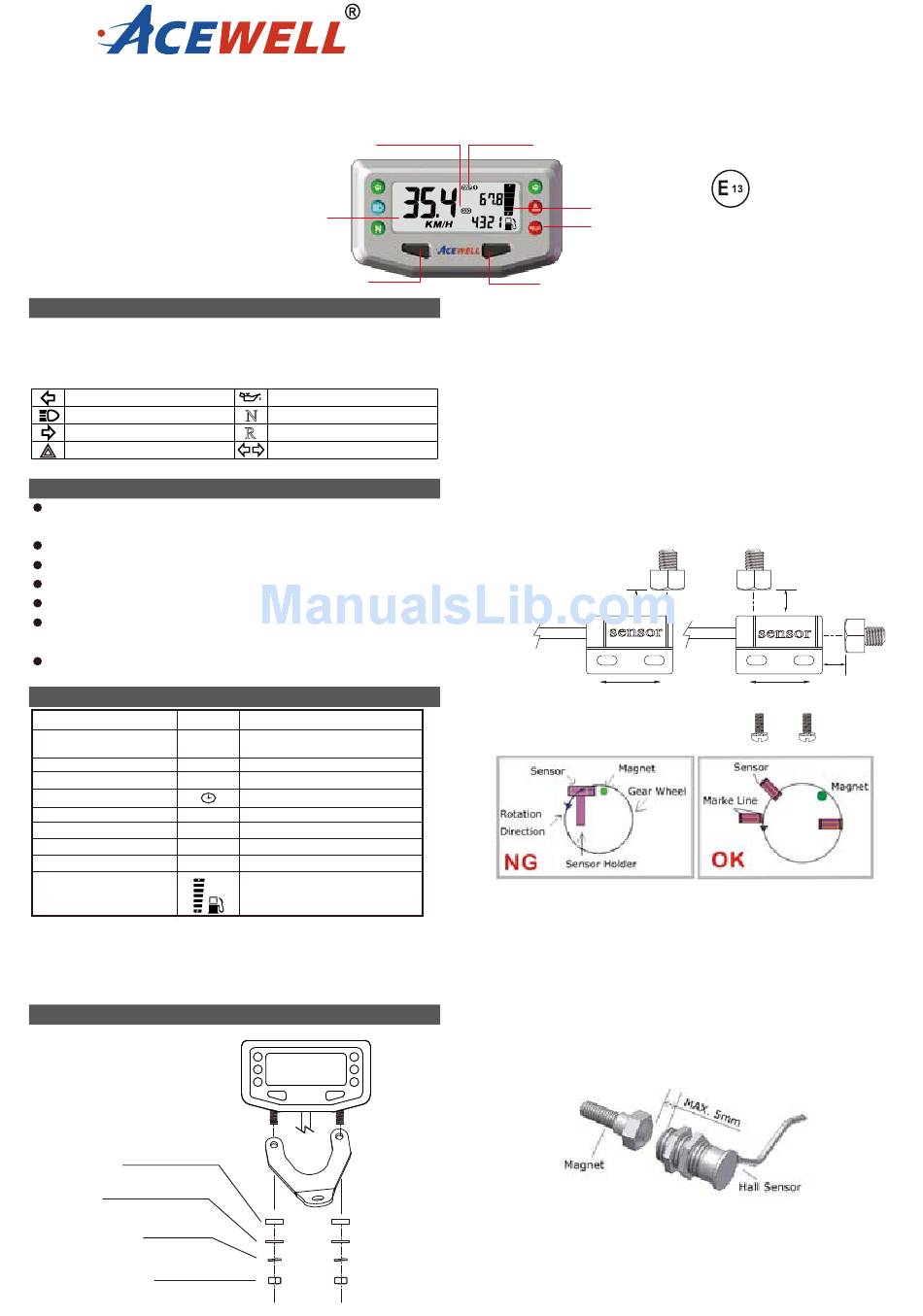

PANEL DESCRIPTIONS

1. 1 row: Speedometer st
2. 2 row: Trip 1&2, RT, AVG
nd
3. 3 row: ODO, TT, MAX
rd
4. RESET Button
Left-Direction Indicator/Green
Main-Beam Headlamp/Blue
Right-Direction Indicator/Green
Hazard Warning/ Red

FEATURES

Displays speedometer, Trip and odometer and bar-graphic fuel gauge
at the same time.
Built-in 4-6 LED indicators for different applications and backlight.
Odometer and total riding timer are always kept in memory.
Metric/Empire unit options are available.
Adjustable wide wheel circumference setting from 1 to 3999mm.
Fuel gauge includes +/- 100, 250 and 510 Ohm options for fuel sender
input resistance, as well as "fuel gauge off" mode.
Includes bracket, speed sensor, fitting kits and wiring harness.

SPECIFICATIONS

Function Simbolo
Km/H /
Speedometer
MPH
Trip meter 1&2
TRIP 1/2
Odometer
ODO
12/24 Hour Clock
Average speed
AVG
Riding timer
RT
Maximum speed
MAX
Total Riding Time
T T
Bar-Fuel Gauge
Power Input DC 9-18V
Speed Sensor Reed Sensor or Hall sensor with 2 wires
Wheel circumference setting 1mm-3999mm
Dimensions 96.7mm x 53.9mm x 24.5 mm

INSTALLATION

Main Unit Mounting
Rubber Pad
Washer
Spring Washer
Fixing Screw Nut
ATV/Motorcycle Computer
ACE-2XX User Manual
3
1
4
5. MODE Button
6. Fuel Gauge
7. LED Indicators
Engine Oil / Red
Neutral Gear /Green
N
R
Reverse Gear /Red
Direction Indicator/Green
Specifications
2.4-399 km/h
(248 MPH)
0.0-999.9 KM/Miles
0- 999999 KM, 0-624999 Miles
0:00`-11H59`/23H59`
2.4-399 KM/h (248 MPH)
0-99H59`59``
2.4-399 KM/h (248 MPH)
0-999999H
+/- 100Ω, 250Ω, 500Ω options and Off
Main Unit
Mounting
2
6
7
5
Speed Sensor:
The ACE-2XX can use either a 2 wire hall sensor or a reed sensor
when it is connected to the bike's power.
Reed Speed Sensor and Magnet:
1. This sensor is universal sensor for motorcycle, find a rotating part
to install magnet (for example disk, sprocket or driveshaft) and a
location to install the sensor where it can be aligned to the magnet.
2. Align the center of the magnet to either of the sensor marking lines
or the side of the sensor.
3. Installing the sensor parallel to the vibration direction creates
optional anti-vibration effect.
4. Make sure the gap between the magnet and the sensor is
within 8mm.
Max. 8mm
sensor
Vibration Direction
Hall Effective Speed Sensor and Magnet:
1. This is universal sensor for ATV front or rear wheel installation
or motorcycle front wheel installation. For some fitments an
accessory speed sensor holder may need to be purchased.
2. Find a rotating part to install magnet (for example disk, sprocket
or driveshaft) and a location to install the sensor where it can be
aligned to the magnet
3. Align the center of the magnet to center of side face of the sensor.
4. Make sure the gap between the magnet and the sensor is
within 5mm.
Specific Hall sensors:
Cable drive adaptors for most bikes originally fitted with cable
driven speedometers or milemeters are available. When using these
cables it is necessary to divide the circumference setting by the
number of rotations of the cable per rotation of the wheel.
English
10R-039949
Max. 8mm
sensor
Max. 8mm
Vibration Direction
