Acewell CV080 2 Series User Manual

Motorcycle/car/atv computer

Advertisement

Quick Links

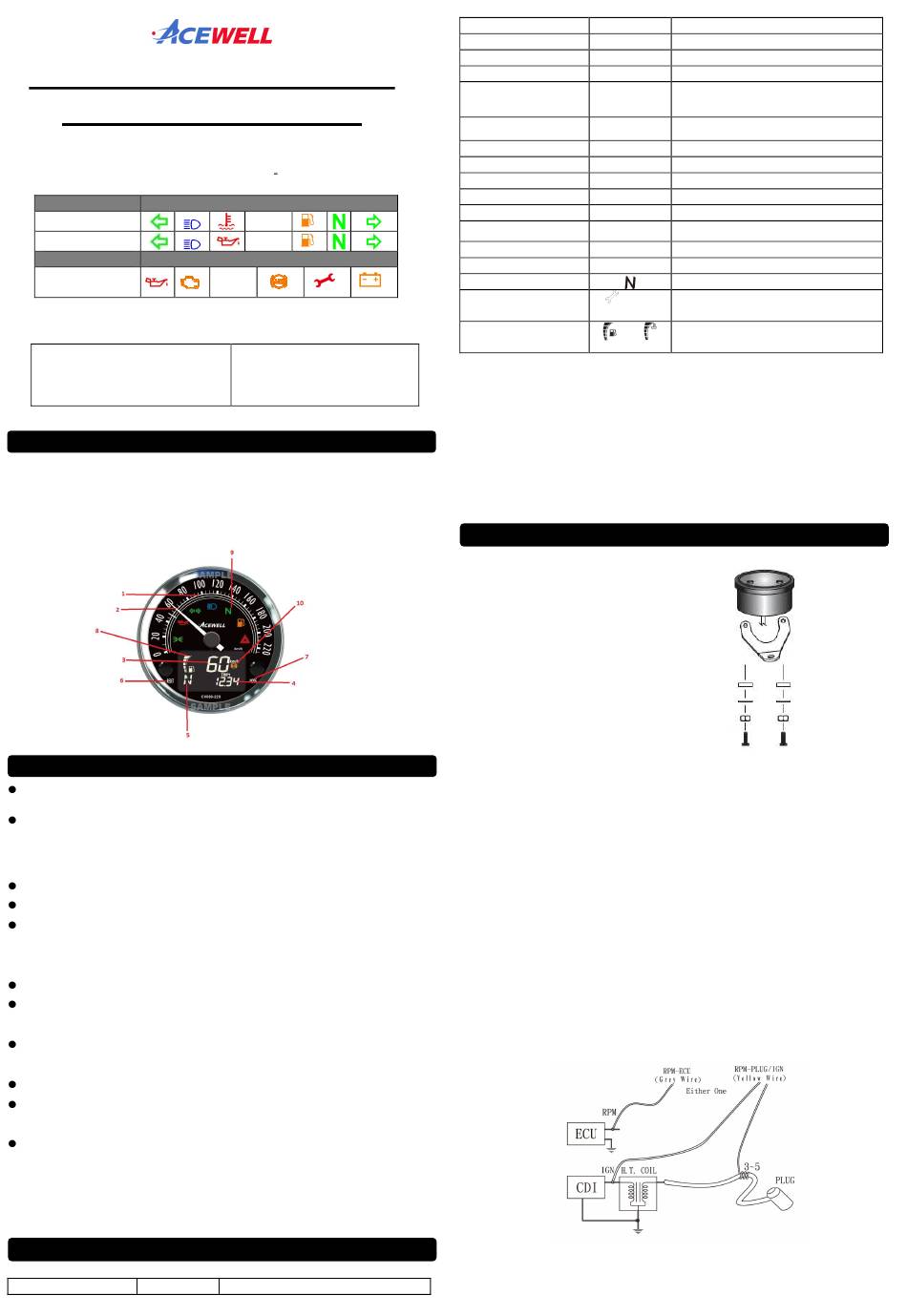

Motorcycle/Car/ATV Computer
CV080-XX2 User Manual
Thanks for purchasing the ATV/Motorcycle/scooter/vehicle computer; this
manual is specifically designed for CV080-XX2 series.
CV080-XX2
CV080-
XX2/XX3
Different model with different needle tachometer or speedometer scales are
as below:
CV080-12X: 120MPH
CV080-16X: 160MPH
CV080-22X: 220km/h
CV080-28X: 280km/h
PANEL DESCRIPTIONS
1. Tachometer or Speedometer Scale
2. Needle Tachometer /speedometer
3. 1st row: Digital Speedometer
nd
4. 2
row: Other functions
5. Gear Indicator
FEATURES
Needle tachometer or speedometer, integrated digital functions, 7 LED
indicators and 7 LCD indicators.
Negative VA LCD displays digital functions of speedometer, tachometer,
maximum RPM and SPD, average speed, trip meter 1/2 or 3, odometer,
riding time, total riding time, total hour meter, volt meter, temperature
meter, clock, bar-fuel and temperature gauge.
5 level backlight brightness can be manual adjust from 5, 6, 7, 8, 9.
Gear indicator which calculates gear by comparing speed and RPM.
Fuel gauge full and empty resistances are fully adjustable to be
compatible with most fuel senders. Fuel gauge can be disabled if not
required.
Flexible battery warning voltage setting from 11.0 to 17.0V.
Allows end user to adjust odometer when the odometer is less than 30km
/ 18.6 miles
Odometer and total riding time are stored in memory, even when the
power is off.
Universal wheel circumference setting range from 1 to 3,999mm.
Includes bracket, RPM sensing wire, hall or reed speed sensor, fitting kits,
wiring harness and temperature sensor.
Excellent water resistant, anti-vibration structure and noise immunity
design.
SPECIFICATIONS
FUNCTIONS
SYMBOL
LED Indicators
RPM
LCD Symbols
S
CV080-30X: 6,000rpm
CV080-40X: 9,000rpm
CV080-50X: 12,000rpm
CV080-60X: 15,000rpm
6. RESET Button
7. MODE Button
8. Bar Fuel or Temperature gauge
9. 7 LED indicators
10. 6 LCD indicators
Specifications
Digital Tachometer
rpm
Speedometer
km/h / MPH 2.4-399 km/h (248 MPH)
Maximum speed
MAX SPD
Average speed
AVG SPD
℃/℉
Temperature Meter
MAX ℃/℉ 0℃-180℃ / 32℉-356℉
Max. Temperature
Trip meter 1/2
TRIP 1/2
Trip meter 3
TRIP 12
Odometer
ODO
12/24 Hour Clock
AM/PM
Riding timer
RT
Total Riding Time
TT
Total Hour meter
HRTT
Voltage Gauge
V
Gear indicator
Trip or
Maintain reminder
HRT
Bar-Fuel or
Or
Temperature Gauge
Power Input
Tachometer Sensor
Speed Sensor
Temperature Sensor
Speed input divider setup
Maximum speed input frequency
Wheel circumference setting
Dimensions
INSTALLATION & PARTS
Main Unit Installation:
Main Unit
Sleeve of main unit
Bracket
Rubber pad
Washer
Nut
Screw
RPM sensor mounting:
1. Connect the yellow or grey wire to sense the RPM signal.
2. The yellow wire can be wrapped around the spark plug lead or can be
connected to the primary side of the coil or to the pulse wire on an active
spark plug cap.
a. Signal strength from the ignition coil is dependent on coil type.
b. Coil 3-5 turns around spark plug lead, the more turns the stronger the
signal. A weak signal will not show a reading on the screen whereas a
very strong signal will have a reading which is too high or very jittery.
If the reading is incorrect then try putting the 1MΩresistor which is
included in the box inline in the sensor wire.
c. Connects to the primary side of the coil or to the pulse wire on an
active spark plug cap if the signal of wrapped around the spark plug is
still unstable.
3. If the signal is still unstable, please try to connect the grey wire to the ECU
rev counter output.
Speed Sensor
Mounting:
100-19,900 rpm,
2.4-399 km/h (248 MPH),
2.4-399 km/h (248 MPH),
0℃-180℃ / 32℉-356℉, HI or oFF
<0℃ display -L-, >180℃ display -H-
0.00-999.99 km /624.99Miles
999.99-0.00 km /Miles count down
0-999.99 km, 0-624999 Miles
AM/PM 0:00' – 11H59' / 23H59'
0-99H59`59``
0-99999.0H
0-99999.0H
9.3-18.0 Volt and battery warnings
N, R, 1, 2,...8 gears and off mode
0~9999km (6213Miles), 9999 hours
or oFF
1-5 Bars, Adjustable 10Ω -999Ω,
reserve mode, or not displayed
DC 9.3-18.0V
CDI, Ignition Coil Signal or ECU
Reed or hall Sensor
PT-1/8" Thermistor Sensor
1-199 Pulses
5K Hz
1mm-3999mm
Ø80*51.5mm
