Acewell ACE-325X-XX series User Manual

ACE-325X/395X-XX series User's Manual
www.acewell-meter.com
2.
9.
3.
4.
5.
Thanks for purchsaing an Acewell ATV/Motorcycle/Scooter computer. This
manual is specifically designed for ACE-325X/395X-XX series. The ACE-325X
does not have any extra LED indicator. The ACE-395X-XX series has 4-8 LED
indicators. ACE-395X-XX has aluminum CNC cases and ACE-39XX has plastic
housing. Different model has different LED indicators; all other functions are the
same. You may find that the photo has a set of LED indicators different from your
computer; the photo is for reference only.
PANEL DESCRIPTIONS
1. Tachometer Scale
2. Bar Tachometer
3. 1st row: Current & Max.
Speedometer
4. 2nd row display: Other functions
5. RESET Button
Left-Direction Indicator/Green
Main-Beam Headlamp/Blue
Right-Direction Indicator/Green
Hazard Warning/ Red
P
Parking/Green
Direction Indicator/Green
Trailer Flashers/Green
FEATURES
Displays bar-graphic tachometers, speedometer, bar fuel meter, bar
thermometer and one of other functions at the same time.
Optional bar-graphic tachometer scale of 8,000rpm or 16,000 rpm
for different bikes.
Allows end user to adjust odometer when the odometer is less than
30 km, after that the odometer is always stored in memory even
when the power is off.
The main unit built-in 4-8 LED indicators for different purpose
application.
Three options fuel meter input resistance 100, 250 and 510£[ are
available.
Universal speed sensing circuit for reed sensor and hall sensor.
Includes bracket, RPM sensing wire, speed sensor, thermo sensor,
fitting kits and wiring harness.
Water resistance, vibration (10G) and mechanical shock (100G)
resistances tested.
FUNCTION Symbol SPECIFICATIONS
Bar Tachometer 250-8,000 or 500-16,000 rpm
Digital Tachometer RPM
100-19,900rpm
RPM
Shift Warning 100-19,900rpm
MAX
Maximum Tachometer 100-19,900rpm
RPM
Speed Meter 2.3-300.0KM/h (187.5M/h)
MAX
Maximum Speed Meter
MAX 2.3-300.0KM/h (187.5M/h)
AVG
Average Speed Meter
AVG 2.3-300.0KM/h (187.5M/h)
Trip Meter 1&2
TRIP 1&2 0.0-999.9 Km (624.9 Miles)
ODO
Odometer
0.0 - 999999 Km (0.0- 624999 Miles)
RT
Riding Time 0:00'00"- 99:59'59"
TT
Total Time
9999H59'
Clock
0:00'00"- 23:59'59"
Temperature ¢J ¢K / +50¢J-160¢J/ 122 - 320
+50¢J-160¢J/ 122 - 320
Max. Temperature MAX
Bar Thermometer 1-7 Bar-graphic
Voltage Meter V
8.0-25.0 Volt
100, 250, 510Ohm or Off
Bar Fuel Meter
ATV/Motorcycle Computer
E
13 10R-022812
English
10.
.
8.
7.
6. MODE Button
7. Fuel Bar
8. Thermometer Bar
9. RPM warning Indicator
10. Temperature Warning
Indicator
Engine Oil / Red
N
Neutral Gear /Green
R
Reverse Gear /Red
D
Drive Gear /Green
Engine coolant temperature/ Red
Rear Fog Lamp/Amber
Engine "Not In Use"/Red
INCREMENTS ACCURACY
250/500 rpm
100 rpm
100 rpm
100 rpm
¡Ó1% or
0.1 KM/H or MPH
¡Ó 0.1(KPH/MPH)
¡Ó1% or
0.1 KM/H or MPH
¡Ó 0.1(KPH/MPH)
¡Ó1% or
0.1 KM/H or MPH
¡Ó 0.1(KPH/MPH)
¡Ó0.1%
0.1 Km or Miles
¡Ó 0.1%
1 Km or Miles
¡Ó 50PPM
1 Second
¡Ó 50PPM
1 Minute
1 Second /1 Minute ¡Ó 50PPM
1¢J/
¢K ¢K ¡Ó 1¢J/
¢K
¡Ó 1¢J/
1¢J/
¢K
0.1V
Power Input: 12VDC.
Speed Sensor: Reed Sensor or Hall Sensor
Tachometer Input: CDI or Ignition-coil signal.
Temperature Sensor: Thermo Sensor
Wheel Circumference setting: 1mm - 3999 mm (1 mm increment)
Operation Temperature: -10¢J - +80¢J (inner housing)
Storage Temperature:
Dimensions:
130x78x30.5mm (ACE-395X-XX)
125x78x28.5mm (ACE-395X), 95.2x72x27mm (ACE-3250)
INSTALLATION & PARTS

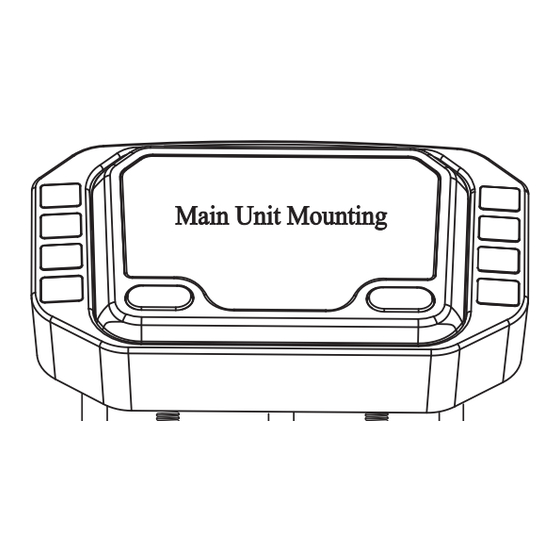

Main Unit Mounting
Rubber Pad
Spring Washer
Fixing Screw Nut
1. Signal intensity from ignition coil is dependent on vehicle type.
2. Circles 2-5 turns around ignition coil, with more turns creating steadily stronger signal, fewer turns creating weaker signal.
3. The RPM circuit is suitable for most bikes, however partial bikes' signal maybe too strong, if the RPM looks like
much more than actual RPM and unstable, please serial connect the attached 1M Ohm resistor to solve it
We have several speed sensors; the unit includes one of them or not
speed sensor in case the model has to be connected to gear box to get
speed signal.
Reed Speed Sensor and Magnet: Please refer to the above drawings.
Hall Effective Speed Sensor S3 and Magnet:
1.This is universal sensor for ATV rear wheel installation or
motorcycle front wheel installation as if you purchase a
relative speed sensor holder.
2.Find a part can rotate to install magnet and a location can
install sensor and the sensor can be aligned to the magnet.
3.Align the center of the magnet to center of side face of the sensor.
4.Make sure the gap between the magnet and the sensor is within 5mm.
Specific Hall sensors:
The sensor such as Honda CRF, XR¡Ketc. can replace original sensor
cable and fix it at the original position.
Thermo Sensor and Sensor Tube:
1.The unit includes a water temperature sensor; you have to
purchase a suitable water pipe temperature sensor tube to install
the sensor easily.
2.Cut the water pipe, insert the temperature tube into the pipe and
secure it by attached pipe clamps.
3.Screw the sensor into the tube.
¢K
¢K
-25¢J - +85¢J (Inner housing)
Speed Sensor & Magnet Mounting
Attention¡G
1.Align the center of the magnet to
either of the sensor marking line
or the end of the sensor.
2.Installing the sensor parallel to
the vibration direction creates
optimal anti-vibration effect.
3.Make sure the gap between the magnet
and the sensor is within 8mm.
RPM Sensor Mounting
Washer
CDI
Ignition Coil
Max8mm
Max8mm
sensor sensor
Vibration Direction Vibration Direction
RPM-INPUT
Either One
2-5 Turns
