Acewell ACE-3200 Series User Manual

ACE-3200/39XX-AX series User's Manual
www.acewell-meter.com
2.
3.
4.
5.
Thanks for purchsaing an Acewell ATV/Motorcycle/Scooter computer. This
manual is specifically designed for ACE-3200/39XX-AX series. The ACE-3200-
AX does not have any extra LED indicator. The ACE-39XX series has 4-8 LED
indicators. Different models have different LED indicators. You may find that the
photo has a set of LED indicators different from your computer; the photo is for
reference only.

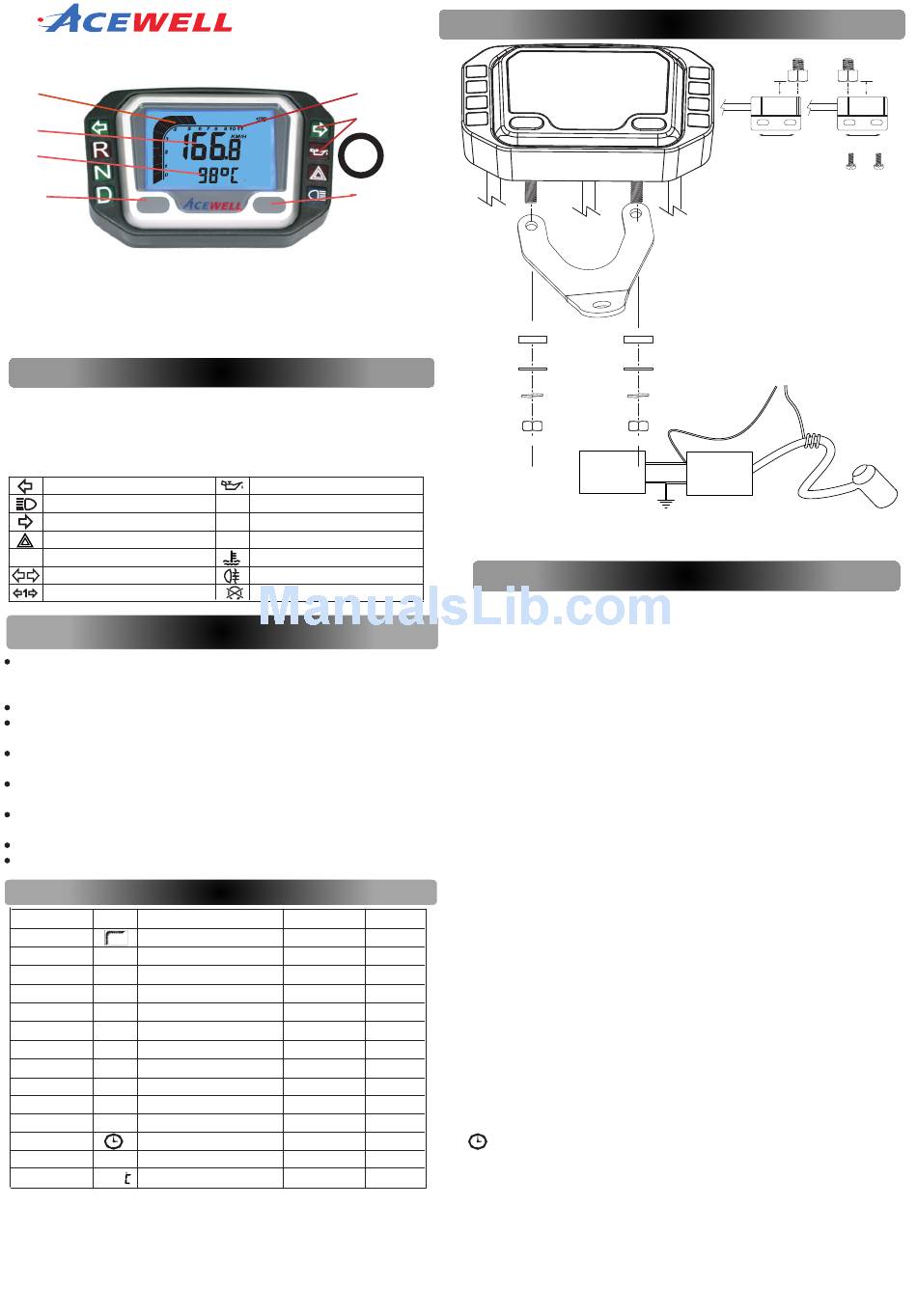

PANEL DESCRIPTIONS
1. Tachometer Scale
2. Bar Tachometer
3. 1st row display: Speedometer
and Temperature meter.
4. 2nd row display: Other functions
Left-Direction Indicator/Green
Main-Beam Headlamp/Blue
Right-Direction Indicator/Green
Hazard Warning/ Red
P
Parking/Green
Direction Indicator/Green
Trailer Flashers/Green
FEATURES
Includes analog and digital tachometer, temperature meter, speedometer
(300km/h maximum), trip meter, odometer, clock, average speedometer,
maximum speedometer, riding timer and cumulativel riding timer.
Computer unit has 4-8 built-in LED for different-purpose indicators.
LCD has 2 rows of digital and one analog bar-graphic tachometer displays, with
blue LED backlight.
Odometer and cumulative riding timer measurements are stored in memory,
even when power is off.
The computer's clock display is always on, even when other functions are
power-off.
Adjustable wheel circumference suitable for all kind of wheels: setting range of
1-3999 mm setting.
Metric/ British system options.
Waterproof design
SPECIFICATIONS
FUNCTION Symbol SPECIFICATIONS
Bar Tachometer 500-11,000 rpm
RPM
Digital Tachometer
100-19,900rpm
RPM
Shift Warning
100-19,900rpm
MAX
Maximum Tachometer 100-19,900rpm
RPM
Speed Meter
2.3-300.0KM/h (187.5M/h)
MAX
Maximum Speed Meter
MAX 2.3-300.0KM/h (187.5M/h)
AVG
Average Speed Meter
AVG 2.3-300.0KM/h (187.5M/h)
Trip Meter 1&2
TRIP 1&2 0.0-999.9 Km (624.9 Miles)
ODO
Odometer 0.0 - 999999 Km (0.0- 624999 Miles)
RT
Riding Time
0:00'00"- 99:59'59"
TT
Total Time
9999H59'
Clock
0:00'00"- 23:59'59"
Temperature /
℃ ℉ +50℃-160℃/ 122 - 320
+50℃-160℃/ 122 - 320
Max. Temperature MAX
Power Input: 12VDC.
Speed Sensor: Reed Sensor or Hall Sensor
Tachometer Input: CDI or Ignition-coil signal.
Temperature Sensor: Thermo Sensor
Wheel Circumference setting: 1mm - 3999 mm (1 mm increment)
Operation Temperature: -10℃ - +80℃ (inner housing)
Storage Temperature: -25℃ - +85℃ (Inner housing)
ATV Computer
English
1.
7.
.
E
13 10R-022812
6.
5. RESET Button
6. MODE Button
7. LED Indicator symbols
Engine Oil / Red
N
Neutral Gear /Green
R
Reverse Gear /Red
D
Drive Gear /Green
Engine coolant temperature/ Red
Rear Fog Lamp/Amber
Engine "Not In Use"/Red
INCREMENTS ACCURACY
500 rpm
100 rpm
100 rpm
100 rpm
±1% or
0.1 KM/H or MPH
± 0.1(KPH/MPH)
±1% or
0.1 KM/H or MPH
± 0.1(KPH/MPH)
±1% or
0.1 KM/H or MPH
± 0.1(KPH/MPH)
±0.1%
0.1 Km or Miles
± 0.1%
1 Km or Miles
± 50PPM
1 Second
± 50PPM
1 Minute
1 Second /1 Minute ± 50PPM
1℃/ ℉
℉ ℉ ± 1℃/
℉
± 1℃/
1℃/
℉
INSTALLATION & PARTS

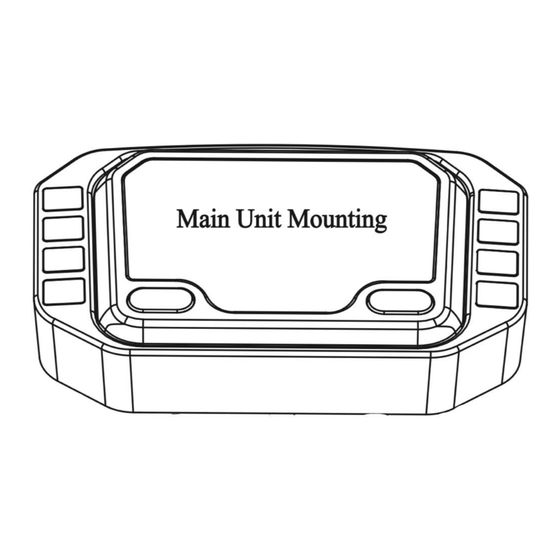

Main Unit Mounting
Rubber Pad
Washer
Spring Washer
Fixing Screw Nut
1. Signal intensity from ignition coil is dependent on vehicle type.
2. Circles 2-5 turns around ignition coil, with more turns creating
steadily stronger signal, fewer turns creating weaker signal.
BAR RPM: Bar Graphic Tachometer
1. The bar graphic tachometer reading is always displayed at the bar graph.
2. Tachometer bar graphic displays up to 11,000 RPM.
RPM: Digital Tachometer
1. RPM is displayed in 2nd row.
2. Digital tachometer displays up to 19,900 RPM.
3. Tachometer signal picked up from either CDI or Ignition coil.
Shift Warning RPM
1. Function enables you to set up an RPM shift warning.
2. Bar-graphic tachometer flashes when RPM reaches pre-set value, and
stops flashing after you shift gear.
MAX RPM: Maximum Tachometer
1. MAX RPM is displayed on 2nd row.
2. Displays highest tachometer reading achieved after last RESET operation.
SPD: Speed Meter
1. Speed meter display is on 1st row of the screen.
2. Displays speedometer reading up to 300.0 Km/H or 187.5 mph.
MAX: Maximum Speed Meter
1. MAX is displayed on 1st row.
2. Displays highest speed achieved after last RESET operation.
AVG: Average Speed Meter
1. Calculates average speed from last RESET.
TRIP 1 & 2: Trip Meter 1& 2
TRIP function registers cumulative trip distance from last RESET while bike is
being ridden.
ODO: Odometer
1. ODO registers cumulative distance traveled during motorbike operation.
2. ODO data is stored in memory, even when power is off.
RT: Riding Timer
1. Calculates total operation time from last RESET.
2. Count automatically begins with vehicle movement.
TT: Total Riding Timer
1. Calculates total operation time from the beginning of bike use.
2. Count automatically begins with vehicle movement.
3. TT data is stored in memory, even when power is off.
12/24 hour Clock
It displays 12- or 24-hour current time.
/ : Temperature Meters
℃ ℉
℉
1. It displays -L-℃ or -L-
-H- ℃ or -H- when temperature is over 160℃ or 320 .
℉
2. The LCD screen will automatic change to temperature screen and flashes the
digits of temperature when the thermo sensor detects temperature over the
presetting warning temperature; The MODE key is out of function until the
temperature cooling down and lower than the presetting waring temperature.
MAX : Maximum Temperature Meter
Displays highest temperature achieved after last RESET operation.
Max8mm
Vibration Direction
Speed Sensor & Magnet Mounting
Attention：
1.Align the center of the magnet to
either of the sensor marking line
or the end of the sensor.
2.Installing the sensor parallel to
the vibration direction creates
optimal anti-vibration effect.
3.Make sure the gap between the magnet
and the sensor is within 8mm.
RPM Sensor Mounting
CDI
Ignition Coil
FUNCTIONS
when temperature is lower than 50℃ or 122 , and displays
℉
Max8mm
sensor sensor
Vibration Direction
RPM-INPUT
Either One
2-5 Turns
