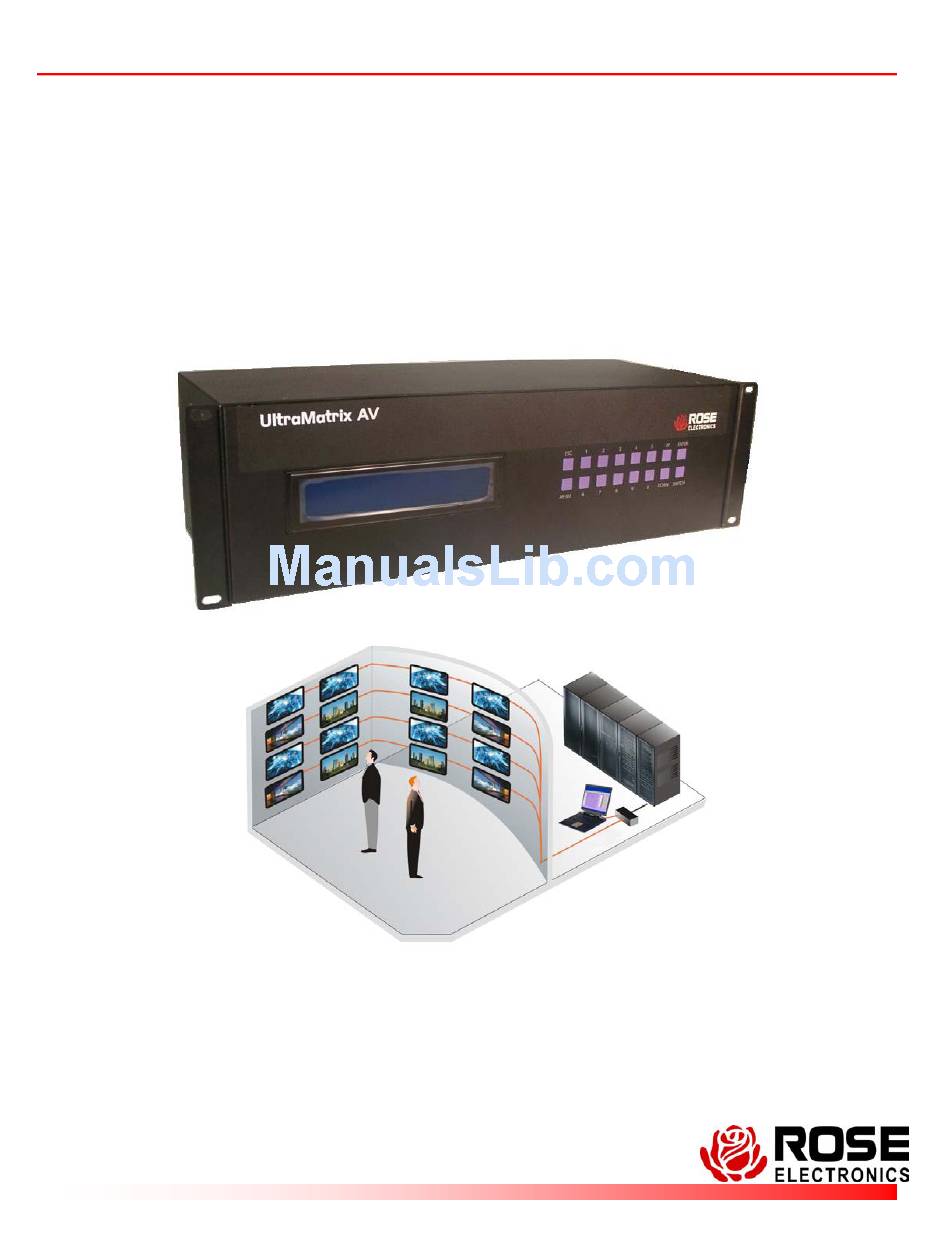

- Page 1 UltraMatrix AV DVI 16x16 DVI VIDEO MATRIX SWITCH INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 3 LIMITED WARRANTY Rose Electronics warrants the UltraMatrix AV DVI to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 4 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY Product UltraMatrix AV DVI, This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A digital device in accordance with the specifications of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Contents Page # Introduction ....................................2 Disclaimer .................................... 2 Features ....................................2 Specifications..................................3 Package contents ................................3 System Application ................................4 Installation ....................................5 Operation ....................................6 Front Panel Control ................................6 Using the RoseControl Software ............................8 Service Information ................................ -
Page 6: Introduction
INTRODUCTION Introduction ® Thank you for choosing Rose Electronics UltraMatrix AV™ DVI for your DVI video switching requirements. The UltraMatrix AV DVI is designed especially for control rooms, video presentations, security centers, video wall displays, and many other digital media applications. -
Page 7: Specifications
Specifications Video Format DVI-D Single Link Maximum Pixel Clock 165 MHz Video Connectors (In / Out) DVI-D (29 pin female) Resolution Up to 1920 x 1200 5 Volts p-p (TTL) Input Equalization Automatic Cable Length (In / Out) Up to 30 ft. Other Warranty Limited 1 Year Parts and Labor... -
Page 8: System Application
System Application Figure 1.System Application Overview Corporate or Educational Presentations Financial (Remote servers) Call Centers for Technical Support Industrial (Long-Range Workstation Isolation) Airport Installations (Air Traffic Control/Passenger Information) Medical (Remote viewing away from Sensitive/Magnetic Equipment) ULTRAMATRIX AV DVI INSTALLATION AND OPERATIONS MANUAL... -
Page 9: Installation
INSTALLATION Installation Turn off all input devices and displays. Connect the male to male DVI extension cables to the input devices and to the “IN” ports on the UltraMatrix AV DVI. Connect the displays to the “OUT” ports on the UltraMatrix AV DVI. ... -
Page 10: Operation
OPERATION Operation The UltraMatrix AV DVI can be controlled using either the front panel or the RoseControl software. Front Panel Control Figure 3. Front Panel Buttons NOTE: To lock the front panel buttons to avoid any accidental changes, press ESC + MENU + ENTER + SWITCH at the same time. -
Page 11: Figure 5. Main Menu
To view the menu, press MENU. There are 6 menu options available: Figure 5. Main Menu Manage EDID - Gives the option to learn the EDID of your display or choose a programmed EDID that is compatible with your monitor. Figure 6. -
Page 12: Using The Rosecontrol Software
Using the RoseControl Software Find the Installation CD that came with your UltraMatrix AV DVI unit. This CD has the RoseControl software that you will need in order to control the unit using a computer. Insert the CD into your CD-ROM. On the CD you should see: ... -
Page 13: Figure 8. Main Routing Window
Router Type: Select “Matrix DVI 16x16” Inputs/Outputs: Enter the number of Inputs/Outputs for your UMAV DVI 16x16. Com Port: Select the appropriate com port that your computer is using to access the router. Router Time out: By default this is 0.2, meaning the computer acknowledges commands almost instantly. After you have entered the necessary information, click OK. -
Page 14: Figure 9. Routing Window, Modified Connections
Crosspoint Panel: This is probably the simplest way to route the connections. Simply click on the cross point itself. The input on the left will then be routed to the output above. Note: Inputs can be routed to several different outputs, but each output can only have a single input at any one time. - Page 15 The Button Panel: These are the numbered buttons across the top and left sides. Click an output button on the top, and then click an input button on the left. Options for using the Button Panel: Output Options: To select multiple outputs next to each other, click on one output, then hold the shift key down and click the last output.
-
Page 16: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. See Limited Warranty for more information. -
Page 17: Product Safety
SAFTEY Product Safety The UltraMatrix AV DVI has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the UltraMatrix AV DVI should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 18: Appendices
APPENDICES Appendix A – Setting up the IP address on the UMA-16Dx16D/RCI The UMA-16Dx16D/RCI model has an embedded network card. This is used to set the IP address of the unit. Once the IP address has been set, the video switching can be accomplished through any web browser. The procedure to set the initial IP address for the unit is detailed below. -
Page 19: Figure 12. Rosecontrolip Main Page
5. If the correct User ID and Password are entered, the unit will display the following page in the browser. Figure 12. RoseControlIP Main Page 6. Select the Network Setting tab on the top of the page. This will display the network settings for the unit in the Network Setting page. - Page 20 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
