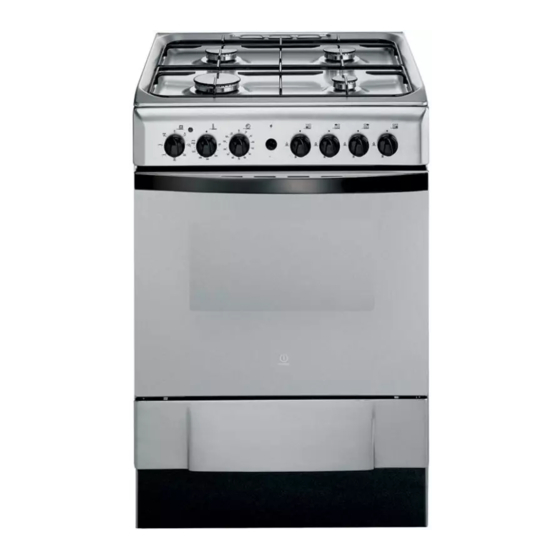

- Page 1 Cooker with electric multifunction oven 5 programmes Instructions for installation and use K6G52/G K6G520/G...
- Page 2 Cooker with electric multifunction oven 5 programms Instructions for installation and use...
- Page 3 To maintain the EFFICIENCY and SAFETY of this appliance, we recommend: • call only the Service Centers authorized by the manufacturer • always use original Spare Parts 1 These instructions are only for those countries whose symbols appear in the booklet and on the matriculation plate of the appliance.
-
Page 4: Installation
The following instructions should be read by a qualified technician to ensure that the appliance is installed, regulated and technically serviced correctly in compliance with current regulations. Important: remember to unplug the appliance from the mains before regulating the appliance or carrying out any maintenance work. - Page 5 removal or servicing. Connection of the appliance to the gas mains or liquid gas must be carried out according to the prescribed regulation in force, and only after it is ascertained that it is adaptable to the type of gas to be used.
- Page 6 BLUE “NEUTRAL” (“N”) BROWN “LIVE” (“L”) GREEN AND YELLOW “EARTH” (“E”) GREEN & YELLOW 13 amp fuse BROWN CROSS-BAR BLUE CORD GRIP Disposing of the appliance When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.
-
Page 7: Burner And Nozzle Specifications
At 15°C and 1013 mbar- dry gas Propane P.C.S. = 50,37 MJ/Kg Butane P.C.S. = 49,47 MJ/Kg Natural P.C.S. = 37,78 MJ/m Liquid Gas By-Pass Nozzle 1/100 1/100 Reduced (mm) (mm) K6G52/G K6G520/G Natural Gas Flow* Nozzle Flow* 1/100 (mm) 28-30... -
Page 8: Technical Specifications
Declared energy consumption for Natural convection Class heating mode: Mains frequency and voltage of the electric section and characteristics of the gas section Model K6G52/G K6G520/G (1) The values in g/h refer to the capacities with liquid gas (Butane, Propane). Technical Specifications Voltage and Frequency of Power Supply: Width: 43.5 cm... - Page 9 G Dripping Pan or Baking Sheet K Oven Rack L Selector Knob M Thermostat Knob N Control Knobs for Gas Burners on Hob O Thermostat Light S Cooking Control Timer Knob (only on a few models) T Electronic Ignition for the Gas Cooktop...
-
Page 10: How To Use Your Appliance
The various features of cooker are controlled through the knobs and buttons located on the control panel. Control Knobs for the Gas Burners on the Hob (N) The position of the gas burner controlled by each one of the • knobs is shown by a solid ring . - Page 11 ance. Desserts: the fan assisted mode is also perfect for baking leavened cakes. Moreover, this mode can also be used to thaw quickly white or red meat and bread by setting the temperature to 80 °C. To thaw more delicate foods, set the thermostat to 60°C or use only the cold air circulation feature by setting the thermostat to 0°C.
-
Page 12: Practical Cooking Advice
The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own per- sonal experience. - Page 13 Cooking Pizza For best results when cooking pizza, use the “fan assisted “ mode: • Preheat the oven for at least 10 minutes; • Use a light aluminium pizza pan, placing it on the grid supplied with the oven. If the dripping pan is used, this will extend the cooking time, making it difficult to get a crispy crust;...
- Page 14 Selector knob Food to be cooked setting Defrosting All frozen food Convection Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts Fan assisted Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum-cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks)
-
Page 15: Routine Maintenance And Cleaning
Routine Maintenance and Cleaning Before each operation, disconnect the cooker from the electrical supply. To ensure that the appliance lasts a long time, it must be thoroughly cleaned frequently, keep- ing in mind that: Do not use steam equipment to clean the appliance. •... - Page 16 Aristide Merloni, 47 60044 Fabriano (AN) Italy tel. +39 0732 6611 www.indesit.com...
