Wiring

To connect the cables, do the following:
1. Run the provided RG179 cable between the
vehicle's DVR and camera, and feed it out through
the cable entry hole.
Caution: Hold onto the camera when removing the
bracket screws.
2. Using the provided Allen wrench, remove the
bracket screws from the camera arm (Figure 6).

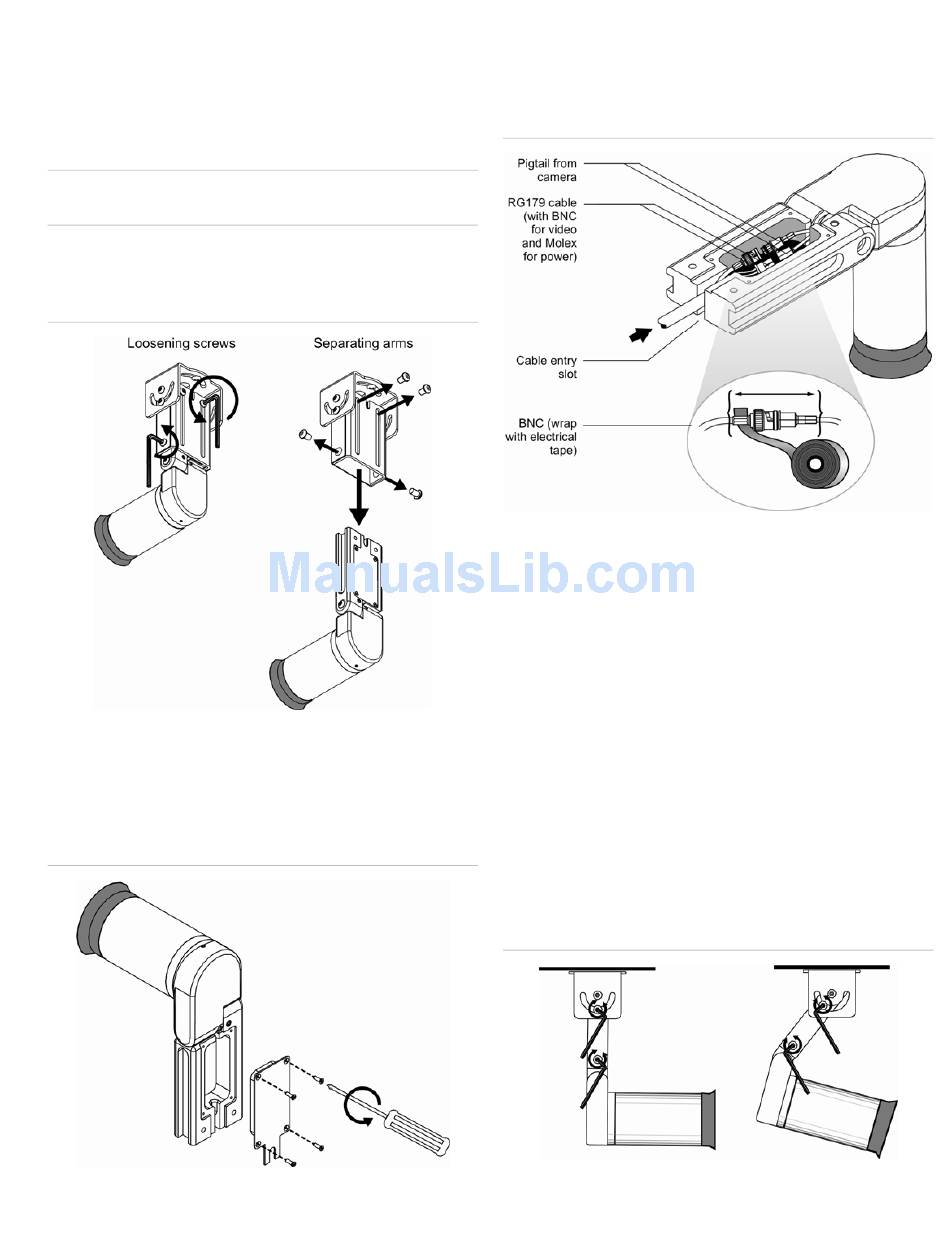

Figure 6: Separating the camera arms
3. Separate the lower and upper camera arms (Figure
6).
4. Remove the connection box screws to remove the
connection box cover (Figure 7).
Figure 7: Accessing the connection box
Forward Facing Camera Installation Manual
5. Feed the RG179 cable through the cable entry slot
and into the connection box (Figure 8 on page 3).
Figure 8: Connecting the cables
6. Make cable connections as shown in Figure 8.
7. Wrap electrical tape around the BNC (Figure 8).
Cover all metal. This prevents metal-to-metal contact
that could short the video line.
8. Reattach the connection box cover (Figure 7 on
page 3). Secure the cover screws with blue Loctite.
9. Insert the lower arm into the upper arm and secure
the camera arm with the bracket screws (Figure 6 on
page 3). Secure the screws with blue Loctite.

Adjusting the camera angle

To adjust the camera angle, do the following:
1. Loosen the upper and lower pivot screws (Figure 9).
Figure 9: Adjustingthe camera angle
2. Set the camera to the desired angle.
3
