Interlogix Camera Installation Manual page 2

appropriate for the mounting surface (Figure 2). If
you are inverting the camera assembly, see
Mounting the camera from below.

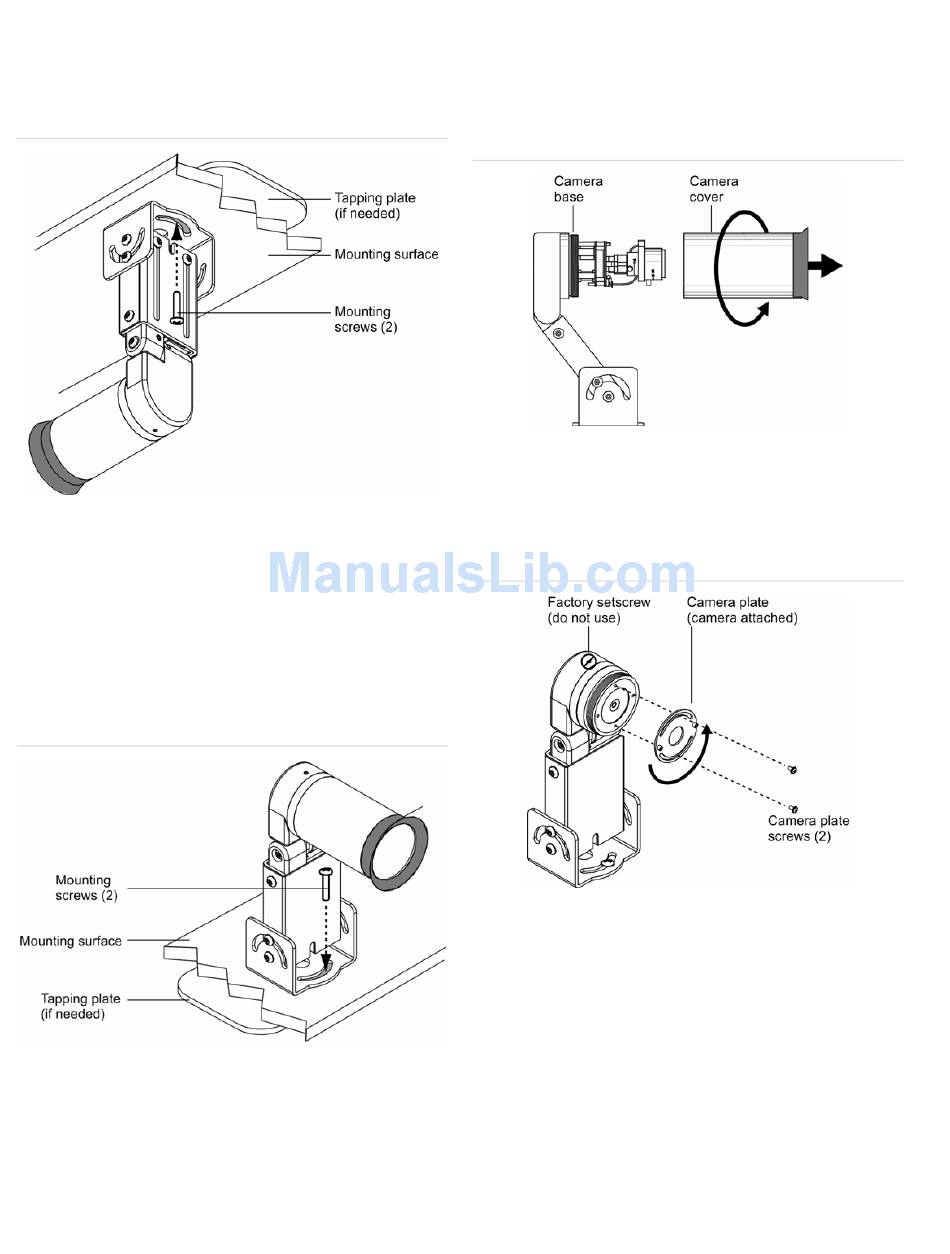

Figure 2: Mounting the camera from above
Note: Apply blue Loctite before tightening screws that
have been loosened.
Mounting the camera from below
To mount the camera from below so that the camera is
inverted, do the following:
1. Attach the unit with fasteners (not provided) that are
appropriate for the mounting surface (Figure 3).
Figure 3: Mounting the camera from below
2. Access live look-in mode to see the camera's field-of-
view. To access the mode, do one of the following:
• Connect a Mobile View test kit to the back of the box
of the DVR and use the kit's monitor or
2
• Connect a laptop computer to the DVR and use the
Mobile View software program.
3. Turn the camera cover counterclockwise to remove
the camera cover from the camera base (Figure 4).
Figure 4: Accessing the camera base
4. Remove the two camera plate screws and rotate the
camera plate 180 degrees to invert the attached
camera (Figure 5).
Figure 5: Inverting the camera
5. Rotate the camera plate 180 degrees to invert the
attached camera.
6. Use the test kit or laptap computer monitor to adjust
the camera's field of view.
7. Reinstall the camera plate screws.
8. Reattach the camera cover.
9. Disconnect the test kit or laptop computer.
Forward Facing Camera Installation Manual
