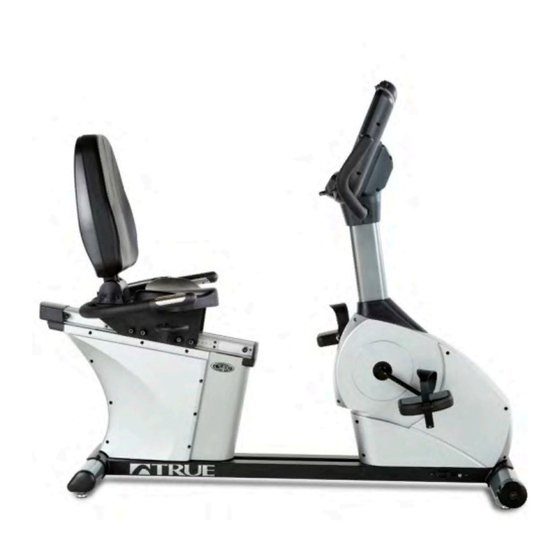

True CS400 Owner's Manual

Recumbent bike
Hide thumbs Also See for CS400:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
*Assembly Guide & Warranty Card Included

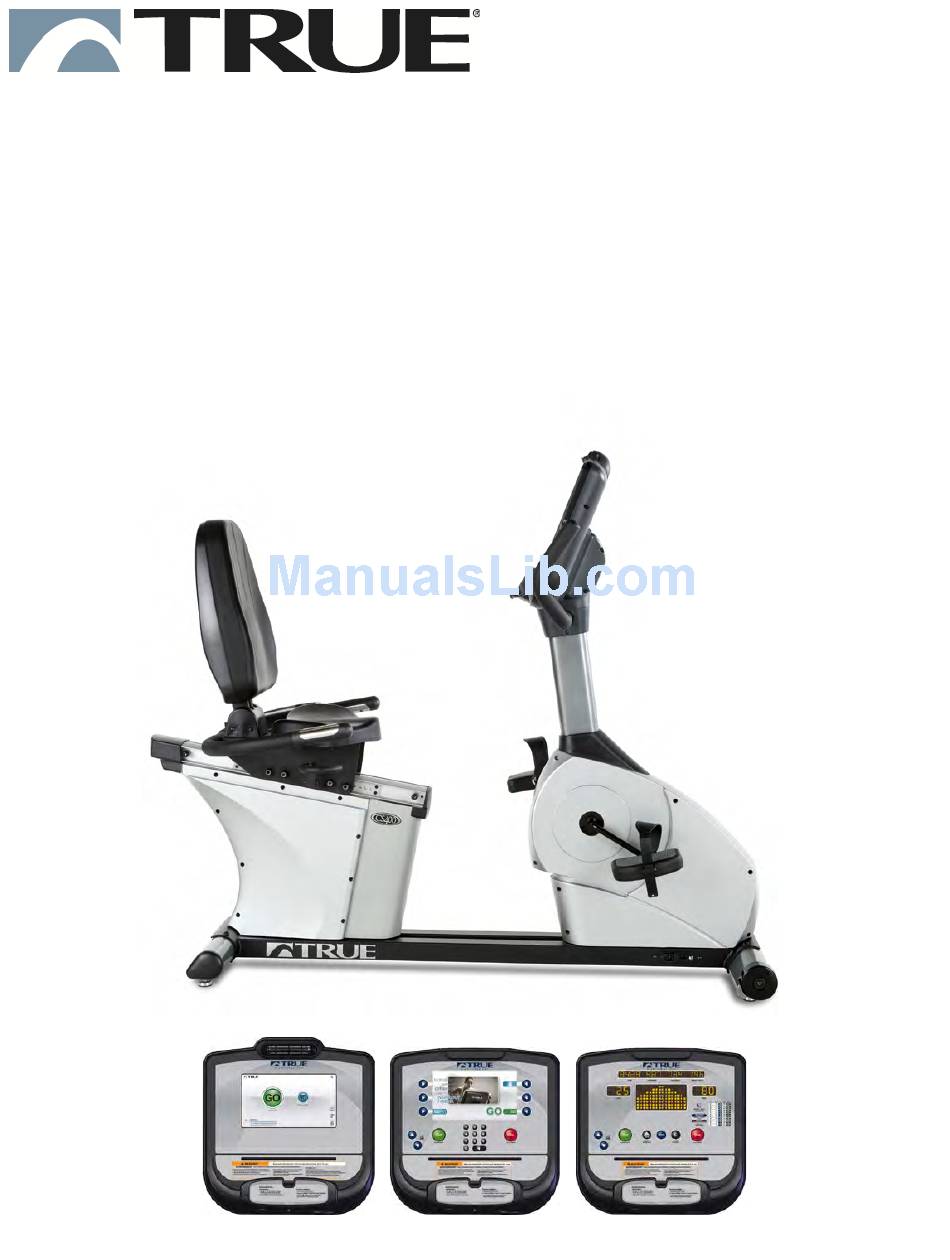

CS400 RECUMBENT
BIKE OWNER'S
MANUAL
Revision 122613
