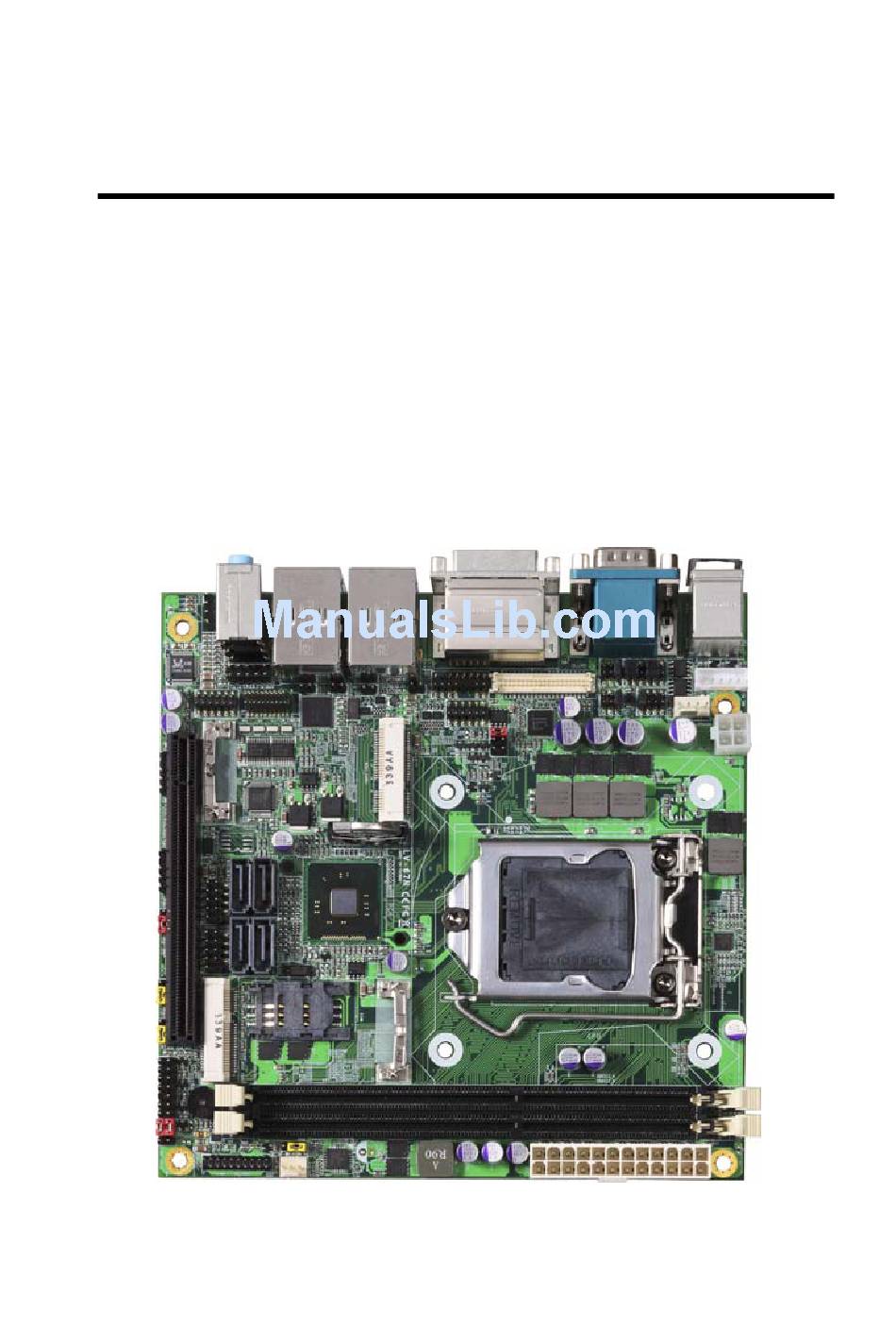

- Page 1 LV-67N Mini-ITX Motherboard User’s Manual Edition 1.0 2013/10/07...
- Page 3 LV-67N User’s Manual Copyright Copyright 2013, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Sata Cable X
LV-67N User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67N Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 (OALSATA3-L) USB2.0 Cable x 1 (1040529) (OALUSBA-1) (1040172) DVI VGA Cable x 1... - Page 5 LV-67N User’s Manual Index Chapter 1 <Introduction> ................6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 8 1.4 <Block Diagram>..................9 Chapter 2 <Hardware Setup>..............10 2.1 <Connector Location> ................10 2.2 <Jumper Location & Reference>..............11 2.3 <Connector Reference> ................12 2.3.1 <Internal Connectors>...
- Page 6 LV-67N User’s Manual 2.14.2 <Fan connector> ................37 2.15 <Switch and Indicator> ................38 Chapter 3 <System Setup> .................39 3.1 <Audio Configuration> ................39 3.2 <Display Properties Setting> ..............40 3.3 <SATA configuration> .................42 3.4 <SATA RAID Configuration> ...............43 Chapter 4 <BIOS Setup> ................45 Appendix A <I/O Port Pin Assignment>.............47...
- Page 7 LV-67N User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

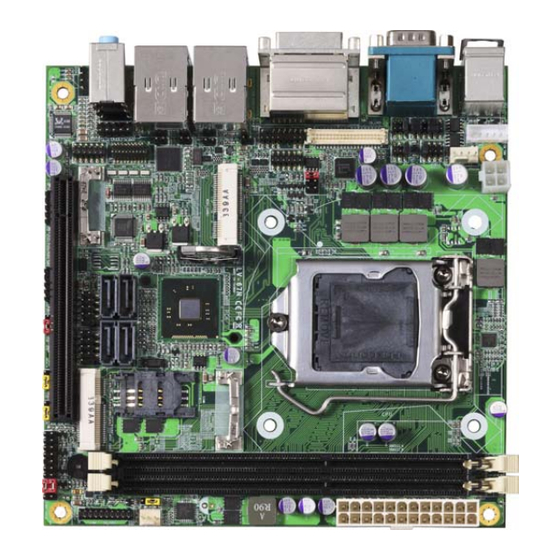

LV-67N User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67N the 4 Generation Intel of the Mini-ITX Motherboard , supports 4 Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron, Pentium Desktop Processor and features Intel Q87 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATAIII with RAID function for a system and Intel Gigabit LAN. -
Page 9: Product Specification
LV-67N User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Supports 4th Generation Intel® Core™ i7/ i5/ i3/ Celeron/ Pentium Desktop Processor. Package type: FCLGA1150 Memory Two DDR3/DDR3L (support 1.5V) 1333/1600 DIMM up to 16GB Support Non-ECC, unbuffered memory only... -
Page 10: Mechanical Drawing
LV-67N User’s Manual 1.3 <Mechanical Drawing>... -
Page 11: Block Diagram
LV-67N User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron, Pentium Processor 1 x PCI Express x16 2 x 240-pin DDR3 LO-DIMM 1333/1600 MHz 1 x DVI up to 16GB 1 x Display port 1 x LVDS... -
Page 12: Chapter 2
LV-67N User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_AUDIO CN_CRT CN_LVDS CN_LPC CN_COM3/4 CN_INV CPUFAN CN_12V MINI_CARD1 CN_DIO CN_IR S_ATA3/S_ATA4 CN_SMBUS S_ATA1/S_ATA2 CN_USB1/2 MINI_CARD2 CN_SIMM JFRNT CN_USB3 SYSFAN DDRIII_A/B COM1+COM2 USB_RJ45_1/2 Audio Display Port... -
Page 13: Jumper Location & Reference
LV-67N User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2... -
Page 14: Connector Reference
LV-67N User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark LGA1150 CPU Socket SO-DIMM 1/2 240 -pin DDR3 LO-DIMM socket SATAIII 1/2/3/4 7-pin Serial ATAIII connector DC_12V 4-pin +12V additional power supply connector 24-pin power supply connector CN_AUDIO... -
Page 15: Cpu And Memory Setup
LV-67N User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> LV-67N has a LGA1150 CPU socket onboard; please check following steps to install the processor properly. Attention If LV-67N need RMA please Keep CPU socket cover on the CPU Socket. -
Page 16: Memory Setup
LV-67N User’s Manual 2.4.2 <Memory Setup> LV-67N has two 240-pin DDR3/DDR3L DIMM support up to 16GB of memory capacity and 1.5 Voltage. The memory frequency supports 1333/1600 MHz. Only Non-ECC memory is supported. DDRIII_A DDRIII_B Please check the pin number to match the socket side well... -
Page 17: Cmos & Atx Setup
LV-67N User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 18: Serial Ata Interface
LV-67N User’s Manual 2.6 <Serial ATA Interface> LV-67N has Four Serial ATA III interfaces with RAID function, the transfer rate of the Serial ATA III can be up to 600MB/s, but not supports SATAII device. Please go to http://www.serialata.org/ for more about Serial ATA technology information. Based on Intel®... -
Page 19: Ethernet Interface
LV-67N User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel I210 Gigabit Ethernet & one Intel I217-LM controllers, as the PCI Express bus. The Intel I210 & I217-LM supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 20: Onboard Display Interface
LV-67N User’s Manual 2.8 <Onboard Display Interface> Based on Intel Q87 chipset with built-in HD Graphic, the board provides one DVI connector & one Display port on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 16-pin VGA interface. -
Page 21: Digital Display
LV-67N User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV... - Page 22 LV-67N User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 23 LCD Installation Guide: Preparing the LV-67N, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 24 LV-67N User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
-
Page 25: Vga Interface
LV-67N User’s Manual 2.8.3 <VGA Interface> Connector: CN_CRT Type: onboard 16-pin connector for CN_VGA connector pitch 2.00mm Signal Signal -CRTATCH IOGND1 IOGND1 IOGND1 -CRTATCH 5VCDA 5HSYNC 5VSYNC 5VCLK CN_CRT... -
Page 26: Integrated Audio Interface
LV-67N User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 27 LV-67N User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect...
-
Page 28: Usb Interface
LV-67N User’s Manual 2.10 <USB Interface> LV-67N integrates six USB3.0 ports and four USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel® Q87 Controller Transfer Rate Up to 5Gb/s Voltage USB1/2/3/4 Type: USB3.0 The specifications of USB2.0 are list: Interface USB2.0... - Page 29 LV-67N User’s Manual Connector: CN_USB3 Type: 20-pin (2 x 10) header (pitch = 2.0mm) Description Description (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ Connector: CN_USB1/2 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
-
Page 30: Serial Port
LV-67N User’s Manual 2.11 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM2 COM1 Connector: COM1 Type: 9-pin D-sub male connector on bracket for COM1... - Page 31 LV-67N User’s Manual Connector: COM3/4 Type: 20-pin (2 x 10) header pitch = 2.54x1.27mm Description Description DCD1 RXD1 TXD1 DTR1 GND1 DSR1 RTS1 CTS1 DCD2 DTR2 Ground DSR2 RTS2 CTS2 COM3/4 JCSEL1 JCSEL2...
- Page 32 LV-67N User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2 (COM1/2) Type: onboard 6-pin header Power Mode JP1/2 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 33: Pcie Mini Card And Sim Interface
LV-67N User’s Manual 2.12 <PCIE Mini Card and SIM Interface> The board provides two PCIE mini card sockets and a SIM socket. MINI_CARD1 is the first Mini-PCIe slot for long size Mini-PCIe cards. MINI_CARD1 slot and option support mSATA. MINI_CARD2 is the second Mini-PCIe slot for long size Mini-PCIe cards. - Page 34 LV-67N User’s Manual Jumper: JMSATA Type: onboard 3-pin header MINI_CARD Mode JMPCIE Supply mSATA(only support SATAIII) MINI_CARD Default setting: 2-3...
-
Page 35: Sim Setup
LV-67N User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 36 LV-67N User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 37: Gpio And Smbus Interface
LV-67N User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK, and a SMBUS (System Management Bus) interface. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 38: Power Supply And Fan Interface
LV-67N User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The LV-67N provides a standard ATX power supply with 24-pin ATX connector and additional 12V connector, and the board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system and Northbridge chip. -
Page 39: Fan Connector
LV-67N User’s Manual 2.14.2 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. CPUFAN SYSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V... -
Page 40: Switch And Indicator
LV-67N User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 41: Chapter 3
LV-67N User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® Q87 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 42: Display Properties Setting
LV-67N User’s Manual 3.2 <Display Properties Setting> Based on Intel Q87 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 43 LV-67N User’s Manual 3. This setup options can let you define each device settings. Click Display Settings to setup the CRT monitor for Resolution and Refresh Rate Click Multiple Displays setup the dual display mode as same screen -41-...
-
Page 44: Sata Configuration
LV-67N User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE or AHCI or RAID mode. The RAID mode need more than one HDD is applied. -
Page 45: Sata Raid Configuration
LV-67N User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® Q87 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 46 LV-67N User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows 7 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
-
Page 47: Chapter 4
LV-67N User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 48 LV-67N User’s Manual (This page is left for blank)
-
Page 49: Appendix A
LV-67N User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 50: Appendix B
LV-67N User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Fpt.exe”, it’s the utility that can write the data into the BIOS... -
Page 51: Appendix C
LV-67N User’s Manual Appendix C <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 52: Appendix D
LV-67N User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 53: Contact Information
