Summary of Contents for LENCO LED-2250

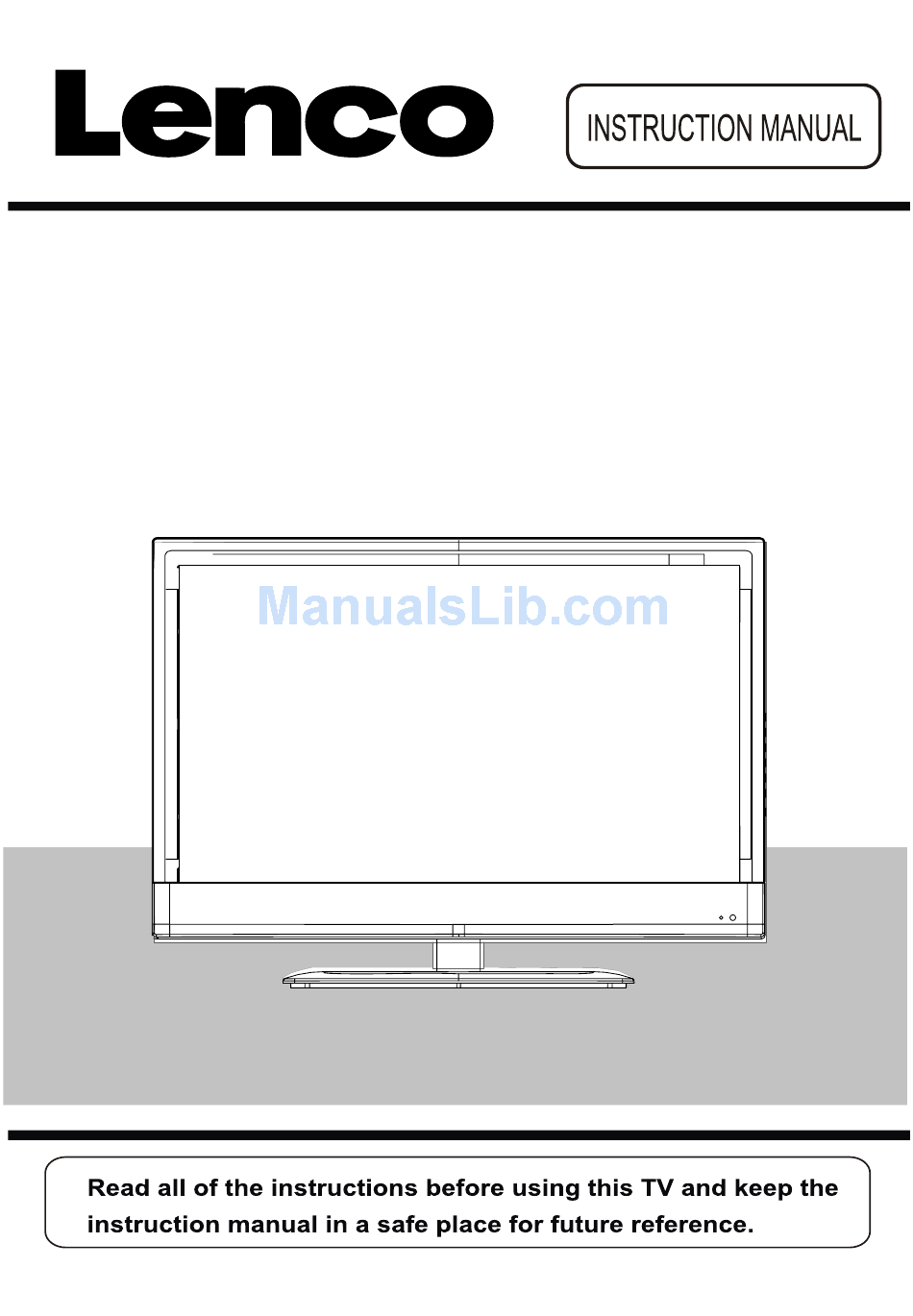

- Page 1 22” (55.5cm) /24”(61cm)HD/Full HD LED TV with DVBT Model No.: LED-2250/2450 For information and support, www.lenco.eu...
-
Page 3: Table Of Contents
Contents SAFETY INFORMATION Unit Remote Control Aerial connection 8-11 Connecting external devices Common Interface slot Auto installation setup Source menu 15-22 Menu settings TROUBLE SHOOTING GUIDE TECHNICAL SPECIFICATIONS... -
Page 4: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. Take note of the following safety information which appears on the back of the TV. CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 5 I MPORTANT SAFETY INFORMATION (Continued) This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop.
-
Page 6: Headphone Warning
I MPORTANT SAFETY INFORMATION (continued) Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again. Do NOT remove the safety covers. There are no useable or serviceable parts inside. You may invalidate the warranty. -
Page 7: Unit
Unit INPUT MENU VOL- VOL+ POWER LED Indicator LED Indicator Remote Control window Remote Control window (Keep clear) (Keep clear) The functions of the TV buttons are described below. MENU Press to display the OSD menu, Press again to exit the menu. CH-/CH+: Press to scan through channels. -
Page 8: Remote Control
Remote control POWER POWER INPUT Switch off the power supply. INPUT Press to display the input source menu .(see page 10) NICAM/A2 Buttons for Teletext TV/RADIO TV/TXT: Turn off/on the Teletext display. CANCEL: Cancel the Teletext display. REVEAL: Reveal any hidden text. NICAM/A2 MENU MUTE... - Page 9 Remote control (continued) POWER INPUT PICTURE Press repeatedly to cycle through the available video picture modes. NICAM/A2 SOUND Press to cycle through the different sound settings. SLEEP TV/RADIO Shutdown timer. SUBTITLE To switch the dialog at the bottom of the screen. LANGUAGE To select audio language.
-
Page 10: Aerial Connection
Aerial connection USER GUIDE WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE MAKING ANY CONNECTIONS! Connecting the TV Antenna Connect the TV antenna to the aerial socket with a 75 ohm co-axial plug. For best results use a high gain TV aerial, preferably roof or loft mounted. - Page 11 Connecting external devices (continued) POWER: Connect to the mains adaptor. USB: For DVB-T software upgrade only. HDMI: Connect it to the HDMI of DVD or other equipment. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. PC-IN: Connect it to the audio output terminal of PC.
-
Page 12: Pc Connection
Connecting external devices (continued) PC connection As PCs are sometimes still supplied with a ‘conventional’ CRT monitor, you may need to adjust the display settings of your PCs graphics card, otherwise the pictures may not appear correctly. Switch on your PC (still with your original monitor connected) no w select the screen resolution, and select 60Hz refresh rate. - Page 13 Connecting external devices (continued) Connecting Video camera and Video recorder Video camera Connect the AV cable to the TV and to the video camera. Turn on both video camera and the TV. Select AV/CVBS source You can now see the playback picture from the video camera. Note: To connect the video camera using other cables, refer to the video camera instruction manual.
-
Page 14: Connecting An Audio System
Connecting external devices (continued) Connecting an audio system You can supply the TV sound to the stereo system (A) with the Scart socket. Use a special scart cable SCART to RCA. (Please consult your hi-fi instructions for details). If you have a surround sound amplifier/decoder (B) Use the Scart cable or the special scart cable Scart to RCA. -
Page 15: Common Interface Slot
USER GUIDE Common Interface Slot USING YOUR COMMON INTERFACE SLOT Common Interface The Common Interface (CI) slot is designed to accept the Conditional Access Module (CAM) and Smart Card in order to view the pay TV programmes and additional services. Contact your Pay Per View TV service provider to get more information about the modules and subscriptions. -
Page 16: Auto Installation Setup
Auto installation setup Power On / Off the TV 1.Connect the AC/DC power adapter with the TV and the AC outlet. 2.Connect the analogue antenna cable or DVB-T socket. 3.Switch on the TV by pressing the power button. 4.The “The First time installation”menu will appear on your screen.(Picture below). - Page 17 Bas c Use Source Menu 1. Turn the TV on. 2. Press the MENU button on the Remote Control. 3. Use the buttons to navigate through the menu. 4. Press the EXIT button to exit the Menu. CHANNEL MENU Allows you to search channels and set up a variety of channel options. (Select DTV source for example) (Select DTV source for example) SETTING MENU:...
-
Page 18: Menu Settings
Application Menu Settings (continued) Use the buttons to select the CHANNEL menu (as the picture above), press button to enter the menu. The CHANNEL menu includes the following options : Country Press buttons to select the Country. (Can be selected in ATV mode) Auto Search Press button to start auto search. - Page 19 Menu Settings (continued) Manual Program menu for DTV Program Select the program you want to edit. Start Search Press button to start search. Channel Found Display the channel it found. SIG. Quality Display the singal quality of the channel it found. SIG.
- Page 20 SEARCH: ·Use button to enter the search menu. ·Use the number buttons to select the corre- sponding characters. ·Use the button to select channel, then use Ok button to rename the program. There are two options: ·Use the number buttons to select different character.
- Page 21 Menu Settings (continued) Use the buttons to select the PICTURE menu (as the picture above), press button to enter the menu. Choose from Standard, Movie, Vivid and Personal. Picture Mode Note: Contrast, Brightness, Color and Sharpness can only be adjusted in the Personal mode option in the Picture Mode Settings.
- Page 22 Application Menu Settings (continued) Use the buttons to select the SOUND menu (as the picture above), press button to enter the menu. Sound Mode Allows you to select among: Standard, Music, Movie and Personal. Bass (Can be adjusted when the sound mode is set to User) Controls the relative intensity of lower pitched sounds.
- Page 23 Menu Settings (continued) Use the buttons to select the SETTING menu (as the picture above), press button to enter the menu. The SETTING menu includes the following options: Language Allows you to select menu language. OSD Timer Allows you to select the time for OSD menu displays on the screen.
- Page 24 Menu Settings (continued) Use the buttons to select the FUNCTION menu (as the picture above), press button to enter the menu. The FUNCTION menu includes the following options : Sleep Timer Allows you to setup the sleep timer to : 15min, 30min, 45min, 60min, 75min, 90min,105min, 120min and off.
- Page 25 Menu Settings (continued) Use the buttons to select the PC SETUP menu (as the picture above), press button to enter the menu. The PC SETUP menu includes the following options : H-Position Adjust the transverse position of the screen. V-Position Adjust the vertical position of the screen.
-
Page 26: Trouble Shooting Guide
USER GUIDE TROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suitable power source. Check the electrical supply is turned on. No Picture Ensure that the TV is powered on. -
Page 27: Technical Specifications
TECHNICAL SPECIFICATIONS Specifications of the TV that you have just purchased may vary from the information in this table due to technical innovations. TV Specifications TV System PA L BG DK I SECAM L/L’ BG DK Audio System BG DK I L/L’ Screensize 22”/24”(Diagonal) Resolution... - Page 28 I LENCO II LED-2250 I LENCO II LED-2450 55,8 60,9...
