Water Tank

The water tank is located inside the left-side
refrigerator door. The water tank capacity is 16
ounces. It is necessary to remove the access panel
to replace the water tank.

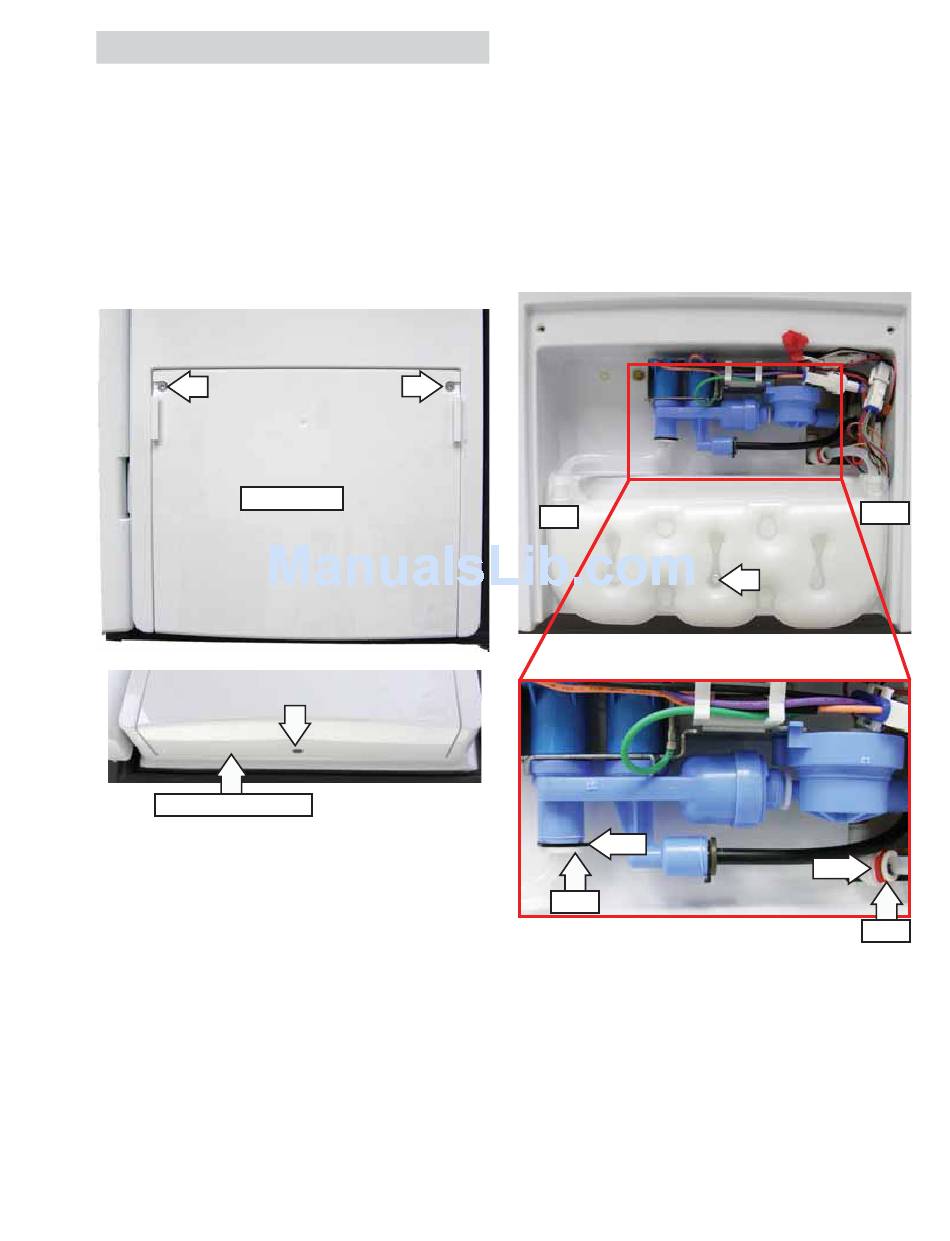

To remove the water tank:
1. Remove the T-20 Torx screw from the bottom
and the two T-20 Torx screws from the front that
attach the access panel to the door.
Access Panel
Access Panel (bottom)
2. Using a fl at blade screwdriver, push the plastic
lock clip off the tank inlet coupling and the
plastic lock clip off the tank outlet elbow
coupling.
3. Carefully push each collar in while pulling each
water line out from the coupling.
Note: See note on page 40 regarding lock clips.
4. Remove the 1/4-in. hex-head screw and water
tank.
Inlet
Clip
Collar
– 77 –
Outlet
Clip
Collar
